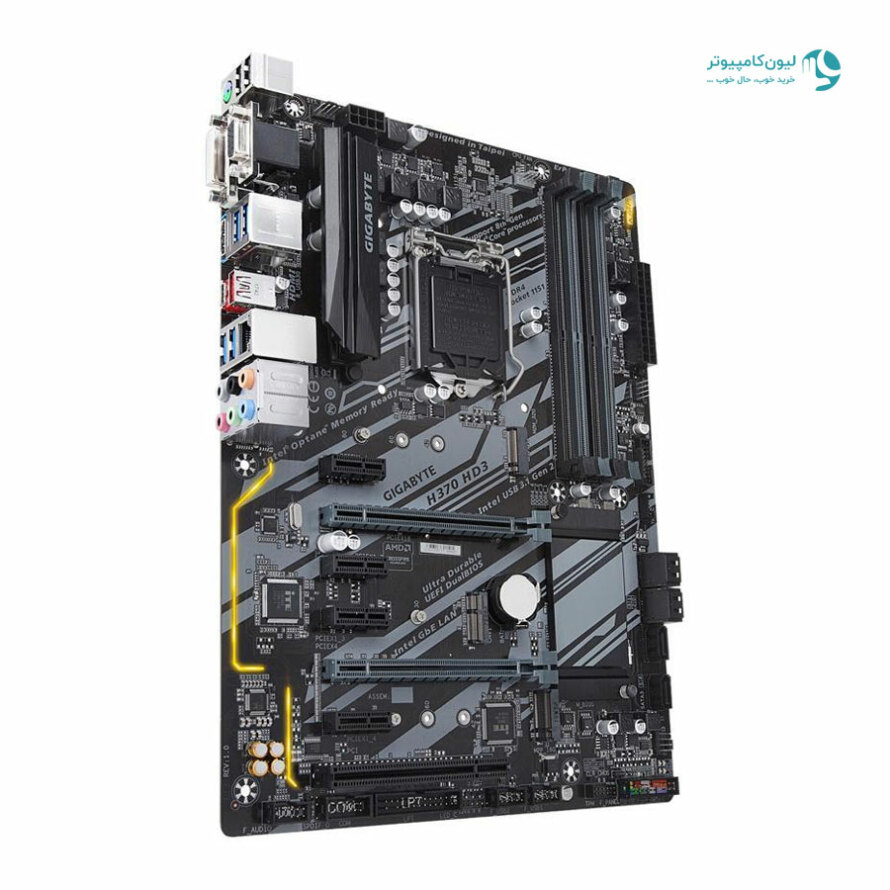

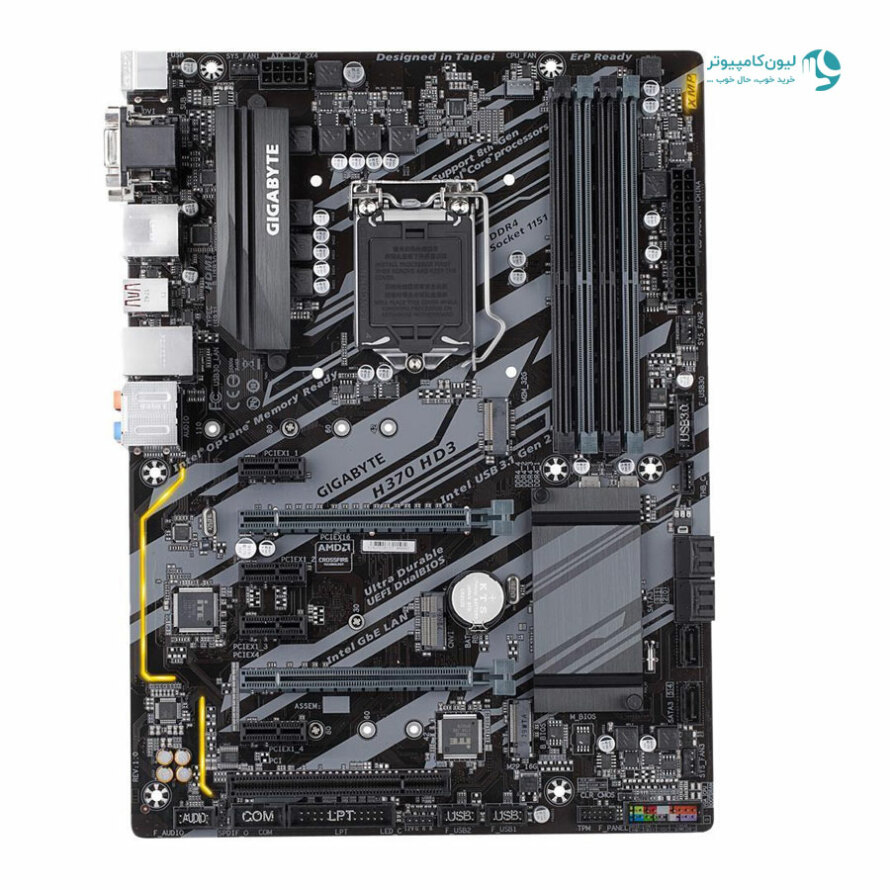

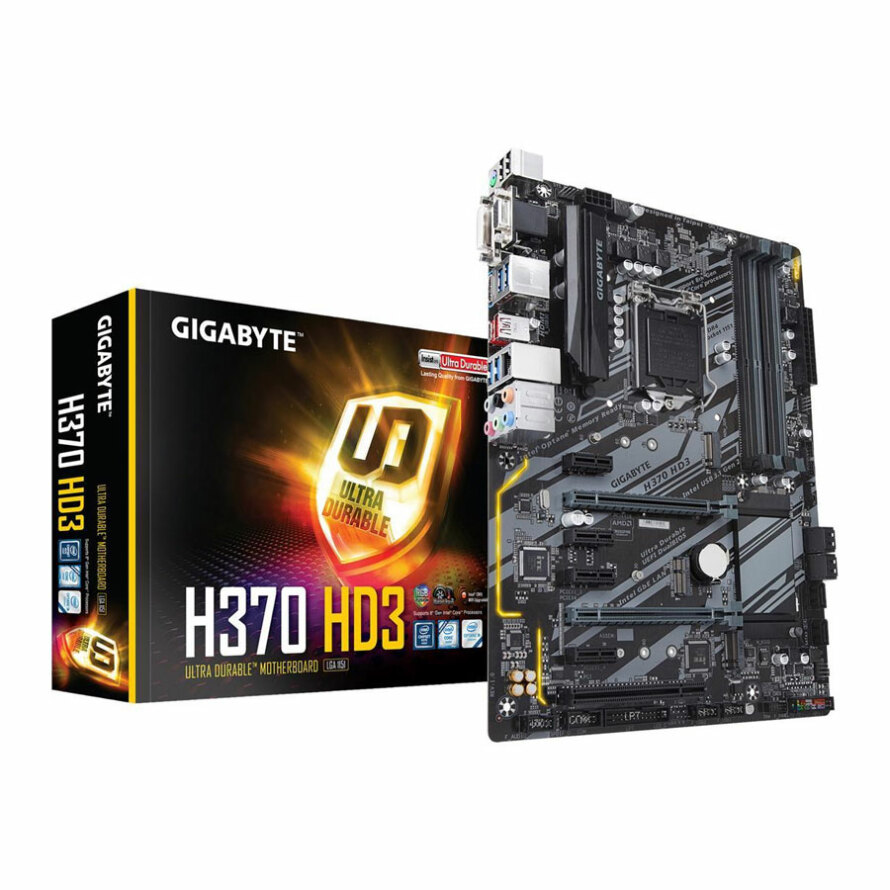

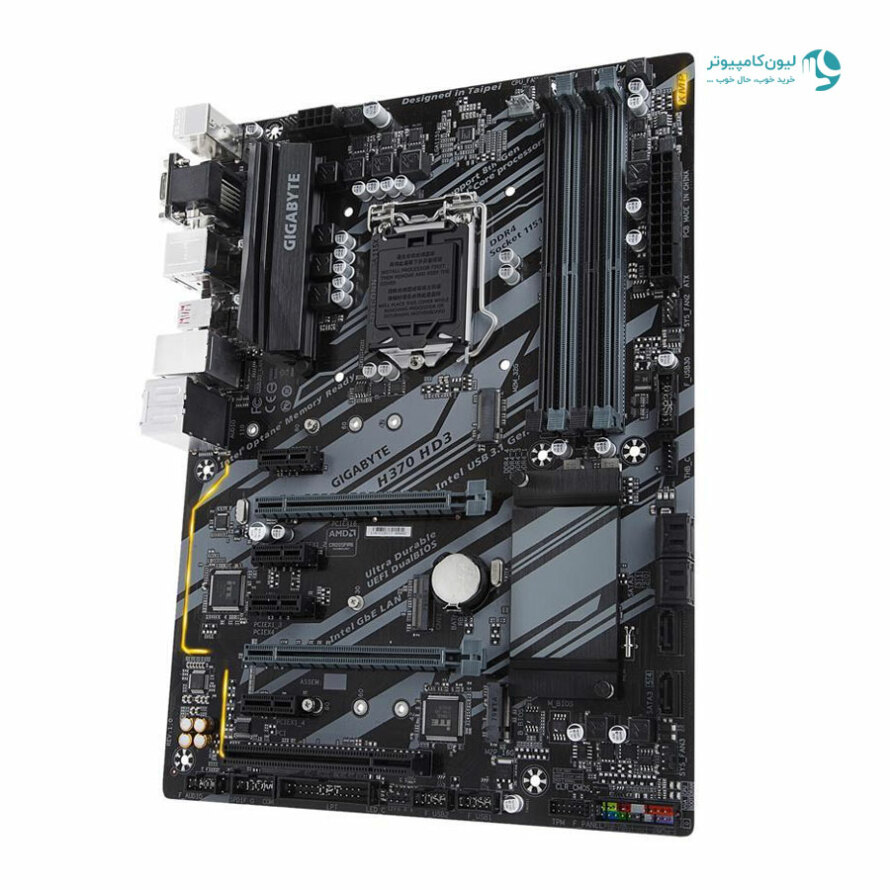

مادربرد گیگابایت H370 HD3

Intel H370 Ultra Durable motherboard with USB 3.1 Gen2 Type-A & USB3.1 Gen1 Type-C, Intel GbE LAN with cFosSpeed, Dual M.2, 7 colors RGB LED strips support, Intel CNVi WIFI upgradable slot, Smart Fan 5, CEC 2019, DualBIOS™, Anti-Sulfur Resistor

    Supports 8th Gen Intel® Core™ Processors
    Dual Channel Non-ECC Unbuffered DDR4
    New Hybrid Digital PWM Design
    Intel® CNVi 802.11ac Wave2 2T2R WIFI upgradable
    High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
    Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
    RGB FUSION supports RGB LED strips in 7 colors
    Intel® Native USB 3.1 Gen2 USB Type-A
    Intel® USB 3.1 Gen1 USB Type-C™
    Intel® GbE LAN with cFosSpeed Internet Accelerator Software
    CEC 2019 Ready, Save the Power as Easy as One Click
    Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    Anti-Sulfur Resistors Design
    Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
    Intel® Optane™ Memory Ready
    Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
 CPU

    Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset

    Intel® H370 Express Chipset

Memory

    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    Dual channel memory architecture
    Support for DDR4 2666/2400/2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio

    Realtek® ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out

LAN

    Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    4 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    1 x PCI slot
    1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

Storage Interface
Chipset:

    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
Multi-Graphics Technology

    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB
Chipset:

    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
    1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.

Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x RGB LED strip header
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Thunderbolt™ add-in card connector
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x parallel port header
    1 x serial port header
    1 x Clear CMOS jumper

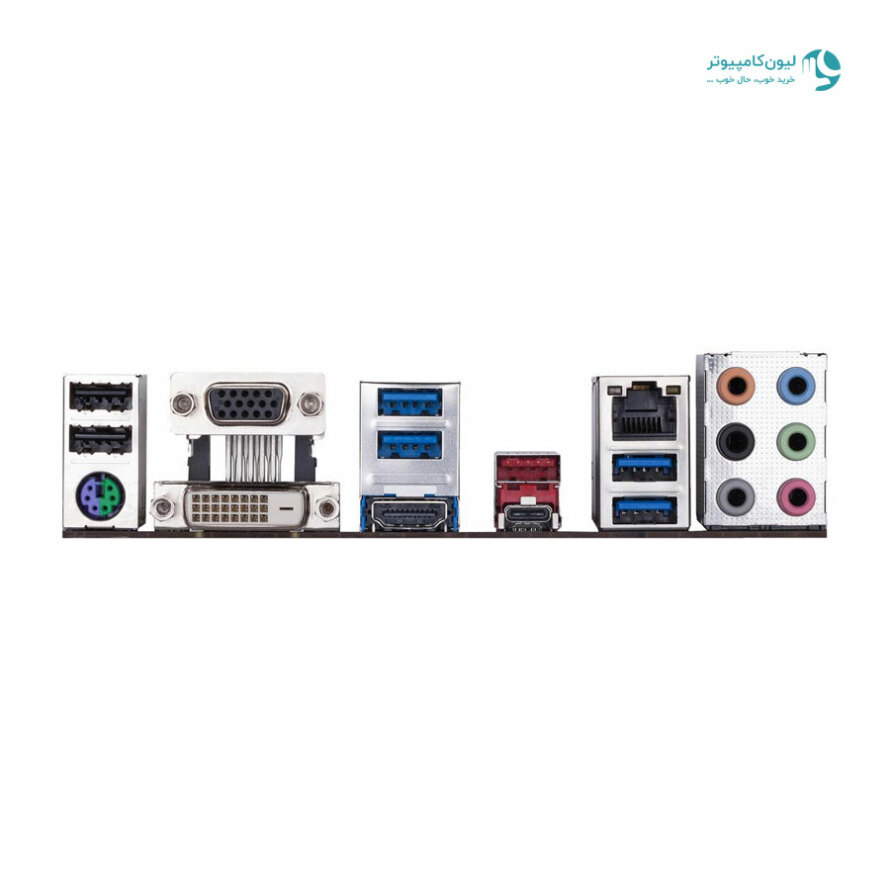

Back Panel Connectors

    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    1 x USB 3.1 Gen 2 Type-A port (red)
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    6 x audio jacks

I/O Controller

    iTE® I/O Controller Chip

H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

    2 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS™
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    System Information Viewer
    USB Blocker
    V-Tuner
    Support for Q-Flash
    Support for Xpress Install

Bundle Software

    Norton® Internet Security (OEM version)
    cFosSpeed

Operating System

    Support for Windows 10 64-bit

Form Factor

    ATX Form Factor; 30.5cm x 22.5cm
