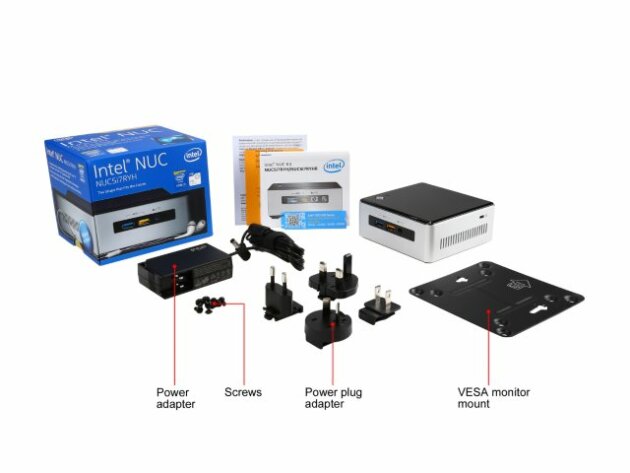

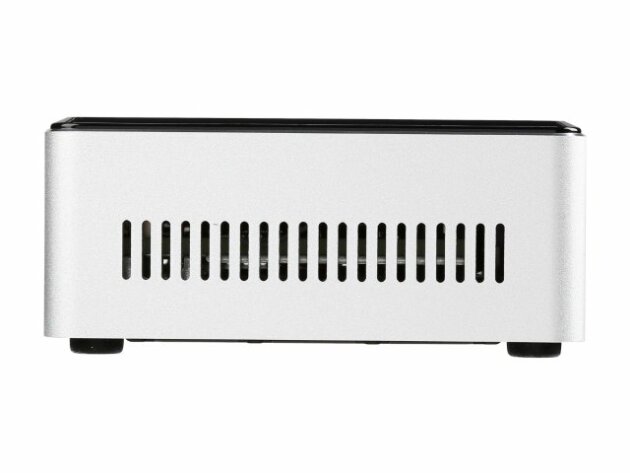

کامپیوتر کوچک Intel® NUC Kit NUC5i7RYH

Status

Launched

Launch Date

Q2'15

Expected Discontinuance

See Roadmap

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

2

Embedded Options Available

No

Lithography

14 nm

TDP

28 W

DC Input Voltage Supported

12-19 VDC

Recommended Customer Price

$475.00

Processor Included

Intel® Core™ i7-5557U Processor (4M Cache, up to 3.40 GHz)

Memory Specifications

Max Memory Size (dependent on memory type)

16 GB Max RAM Support

Memory Types

DDR3L-1333/1600 1.35V SO-DIMM

Max # of Memory Channels

2

Max Memory Bandwidth

25.6 GB/s

Max # of DIMMs

2

ECC Memory Supported ‡

No

-

Graphics Specifications

Integrated Graphics ‡

Yes

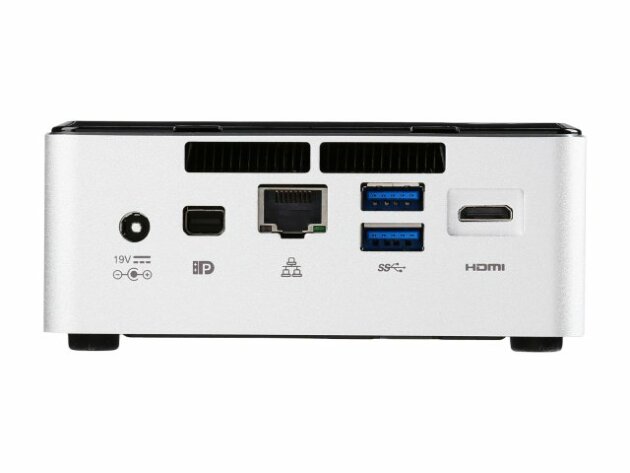

Graphics Output

Mini-DP 1.2; Mini-HDMI 1.4a

Intel® Clear Video Technology

Yes

# of Displays Supported ‡

3

-

Expansion Options

PCI Express Revision

Gen2

PCI Express Configurations ‡

M.2 slot with PCIe x4 lanes

M.2 Card Slot (storage)

22x42/60/80

-

I/O Specifications

USB Revision

2.0, 3.0

# of USB Ports

6

USB 2.0 Configuration (External + Internal)

0 + 2

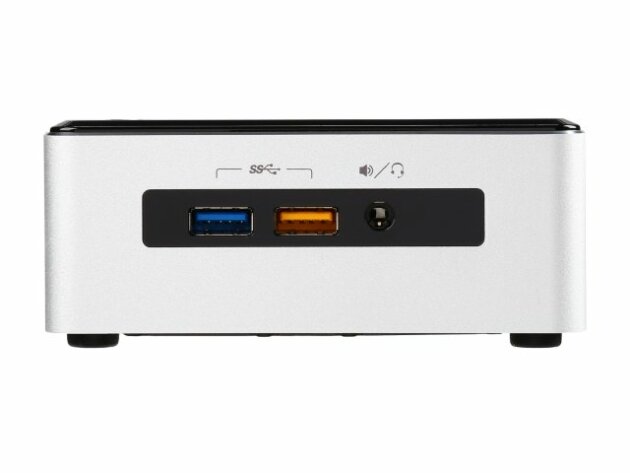

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

2

Max # of SATA 6.0 Gb/s Ports

2

RAID Configuration

2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Audio (back channel + front channel)

7.1 digital (mHDMI mDP); L+R+mic (F)

Integrated LAN

10/100/1000

Integrated Wifi

Intel® Wireless-AC 7265 + BT 4.2

Integrated Bluetooth

Yes

Consumer Infrared Rx Sensor

Yes

Additional Headers

2x USB2.0, AUX_PWR

-

Package Specifications

Low Halogen Options Available

See MDDS

-

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® vPro Technology ‡

No

TPM

No

Intel® HD Audio Technology

Yes

Intel® Rapid Storage Technology

Yes

Intel® Virtualization Technology (VT-x) ‡

Yes
