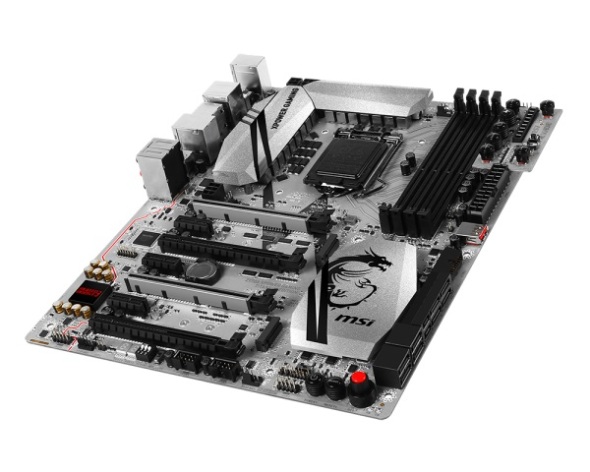

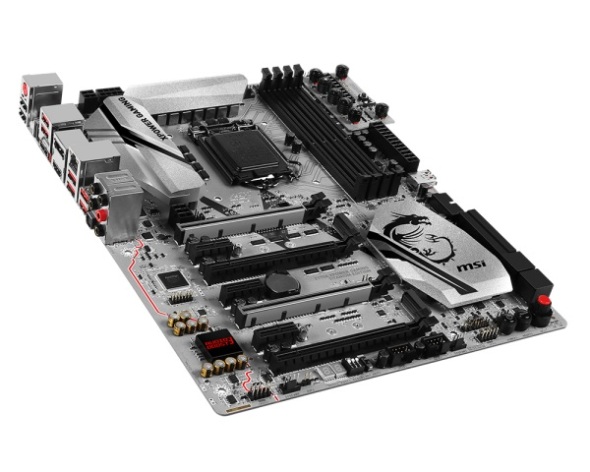

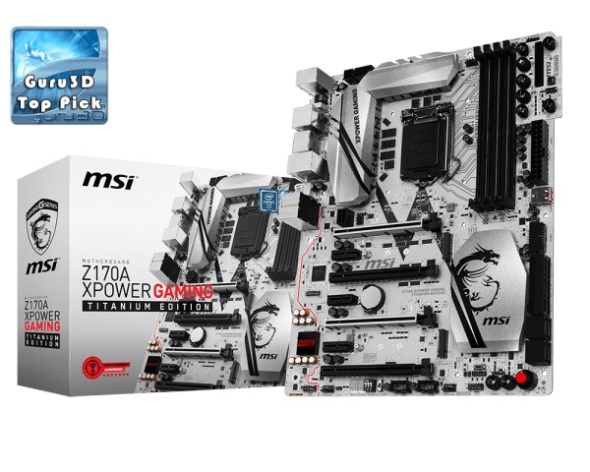

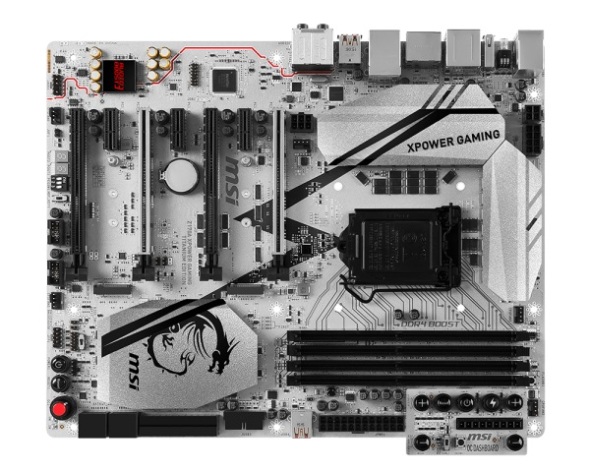

مادربرد ام اس ای Z170A XPOWER GAMING TITANIUM EDITION

MSI Z170A XPOWER GAMING TITANIUM EDITION LGA1151 Z170
گارانتی (28-36 ماه - اصلی (ایستا یا تجارت ماندگار))
کد کالا: Lion-Product-8926

ناموجود
  • Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket

  • Supports DDR4-3866+(OC) Memory

  • OC DASHBOARD: Experience easier on-the-fly overclocking under the most extreme condition.

  • DDR4 Boost: Give your DDR4 memory a performance boost

  • USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection

  • Twin Turbo M.2 64Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s

  • GAMING LAN with LAN Protect, powered by Intel®: The best online gaming experience with lowest latency

  • Audio Boost 3: Reward your ears with studio grade sound quality

  • Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality

  • Game Boost: This one goes up to eleven; 8 levels of easy overclocking

  • GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button

  • Designed for overclocking: with OC Essentials and OC Engine 2

  • XSplit Gamecaster v2.5: 1 year free premium license to show off your skills and achievements to the world

  • SteelSeries Certified: Optimized for SteelSeries gaming gear

  • Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes

  • MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™

  • Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font

  • BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card

  • GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience


Brand
MSI
Series
MSI Gaming
Model
Z170A XPOWER GAMING TITANIUM EDITION

Supported CPU

CPU Socket Type
LGA 1151
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets

Chipset
Intel Z170

Memory

Number of Memory Slots
4×288pin
Memory Standard
DDR4 3600+*(*OC)/ 3200*/ 3000*/2800*/ 2600*/ 2400*/ 2133
Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
4 x PCIe 3.0 x16 slots (support x16, x8/x8/x4 modes)
PCI Express x1
3 x PCIe 2.0 x1 slots

Storage Devices

SATA 6Gb/s
8 x SATA 6Gb/s
SATA Express
2 x SATA Express ports (PCIe 3.0 x2)*
SATA Express port is backward compatible with SATA.
M.2
2 x M.2 ports (PCIe 3.0 x4)*
M.2 port supports 4.2cm/ 6cm/ 8cm length module
* The SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port.
SATA RAID
0/1/5/10

Onboard Video

Onboard Video Chipset
Onboard Graphics
- 2 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz

Multi-GPU Support
- Supports 4-Way AMD CrossFire Technology*
- Supports 2-Way NVIDIA SLI Technology

* Supports Windows 7 and Windows 8/ 8.1

Onboard Audio

Audio Chipset
Realtek ALC1150
Audio Channels
7.1 Channels

Onboard LAN

LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps

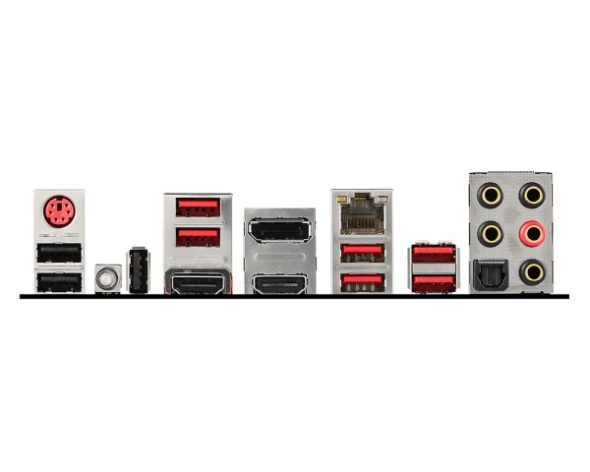

Rear Panel Ports

PS/2
1 x PS/2 keyboard/mouse port
HDMI
2 x HDMI
DisplayPort
1 x DisplayPort
USB 3.1
4 x USB 3.1 Gen1 (SuperSpeed USB)
2 x USB 3.1 Gen2 (SuperSpeed USB 10 Gbps) ports
USB 1.1/2.0
3 x USB 2.0
S/PDIF Out
1 x Optical

Internal I/O Connectors

Onboard USB
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 (SuperSpeed USB) connectors (supports additional 4 USB3.1 Gen1 ports)
1 x USB 3.1 Gen1 (SuperSpeed USB) connector
Other Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
2 x 4-pin CPU fan connectors
3 x 4-pin system fan connectors
1 x Clear CMOS jumper
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
9 x V-Check connectorsts
1 x GO2BIOS button
1 x Power button
1 x Reset button
1 x OC Genie button
1 x Multi-BIOS switch
1 x 2-Digit Debug Code LED

Physical Spec

Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin


مادربرد

سازنده

MSI

چیپست

Z170

سوکت پردازنده

LGA1151

پشتیبانی از SLI

دارد

پشتیبانی از CrossFire

دارد

اسلات M.2

دارد

پورت SATA III

8 عدد

پورت eSATA

2 عدد

درگاه USB 3.1 ( USB 3.2 GEN 2 )

9 عدد

پورت شبکه

دارد

اتصال Wi-Fi

ندارد

بلوتوث

ندارد

نوع رم قابل استفاده

DDR4
