کامپیوتر کوچک گیگابایت BRIX GB-BSi7H-6500
BRIX GBBSi7H6500
گارانتی (آواژنگ)
-
Features Latest Intel® 6th generation Core Processors
-
Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
-
Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
-
1 x M.2 SSD (2280) slot
-
2 x SO-DIMM DDR3L slot (1600MHz)
-
Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
-
HDMI plus Mini DisplayPort Outputs (Supports dual displays)
-
Intel® HD Graphics 520
-
4 x USB 3.0
-
Intel Gigabit lan
-
Handset and Microphone jack
-
VESA mounting Bracket (75 x 75mm + 100 x 100mm)
* Wireless module inclusion may vary based on local distribution.
| Dimension
| 46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7") |
| Motherboard Size | 105 x 110 mm |
| CPU | Intel® Core™ i7-6500U 2.5GHz / 3.1GHz |
| Memory | 2 x SO-DIMM DDR3L slots (DDR3 1.35V) 1600MHz Max. 16GB |
| LAN | Gigabit LAN (Intel i219V) |
| Audio | Realtek ALC255 |
| Graphics | Intel® HD Graphics 520 |
| HDMI Resolution (Max.) | 4096x2160 @ 24Hz |
| Mini DP Resolution (Max.) | 3840x2160 @ 60Hz |
| Expansion Slots | 1 x M.2 slot (2280_storage) 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |

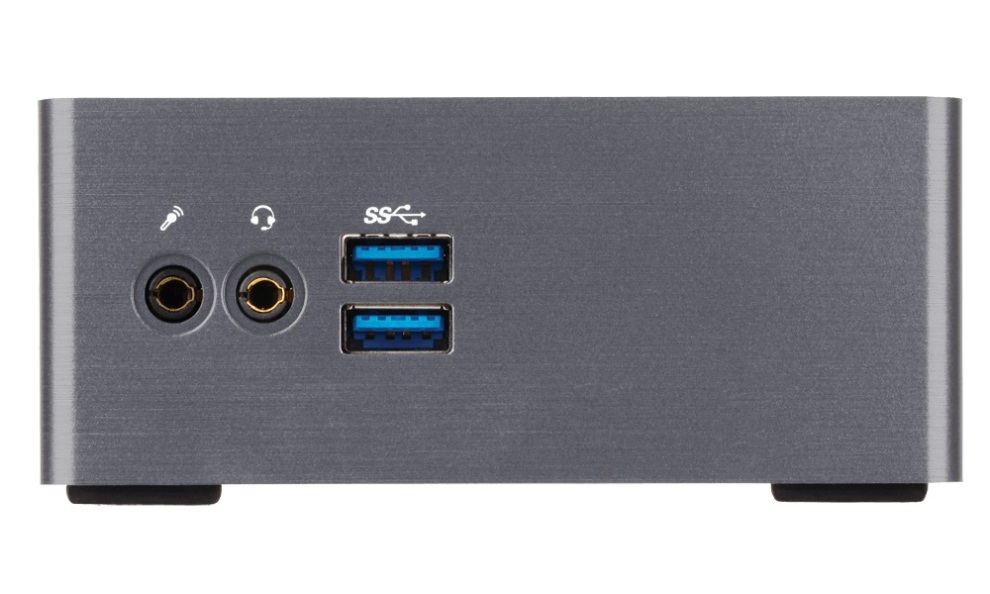

| Front I/O | 2 x USB 3.0 1 x head phone Jack 1 x Mic phone Jack |

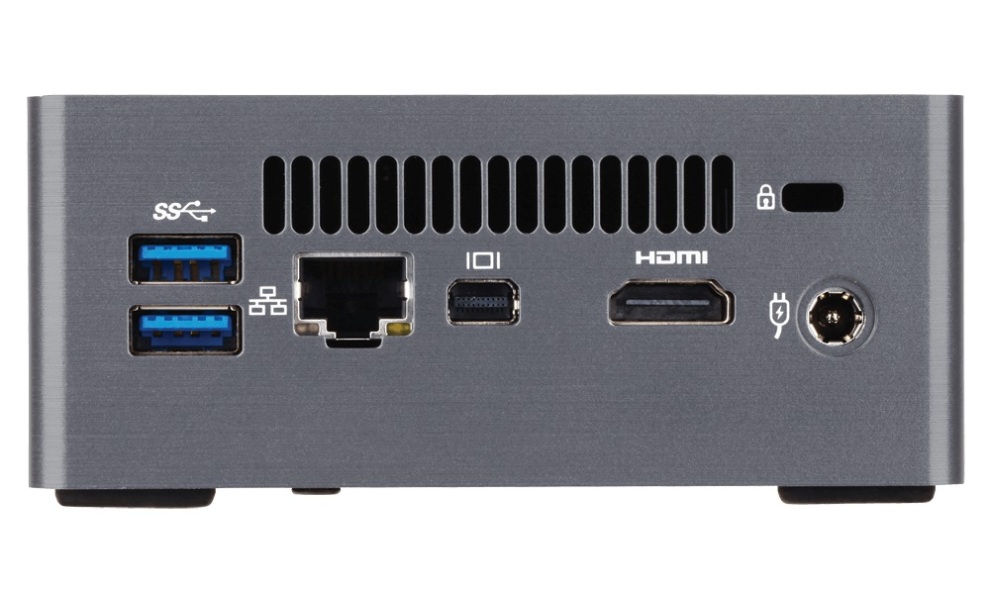

| Rear I/O | 1 x HDMI (1.4a) 1 x Mini DisplayPort (1.2) 2 x USB 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot |
| Power Supply | Input: AC 100-240V Output: DC 19V 3.42A |
| VESA | Bracket included Supports 75 x 75 and 100 x 100 mm |
| Wifi Card | Intel® Dual Band Wireless-AC 3165 |
| Storage | Support 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) |
| Support OS | WIN7 32/64bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. WIN8.1 64bit WIN10 64bit |
| Environment | System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C |
کامپیوتر های کوچک
16 گیگابایت
Intel Core i7-6500U
ندارد
دارد
دارد
ندارد
External
