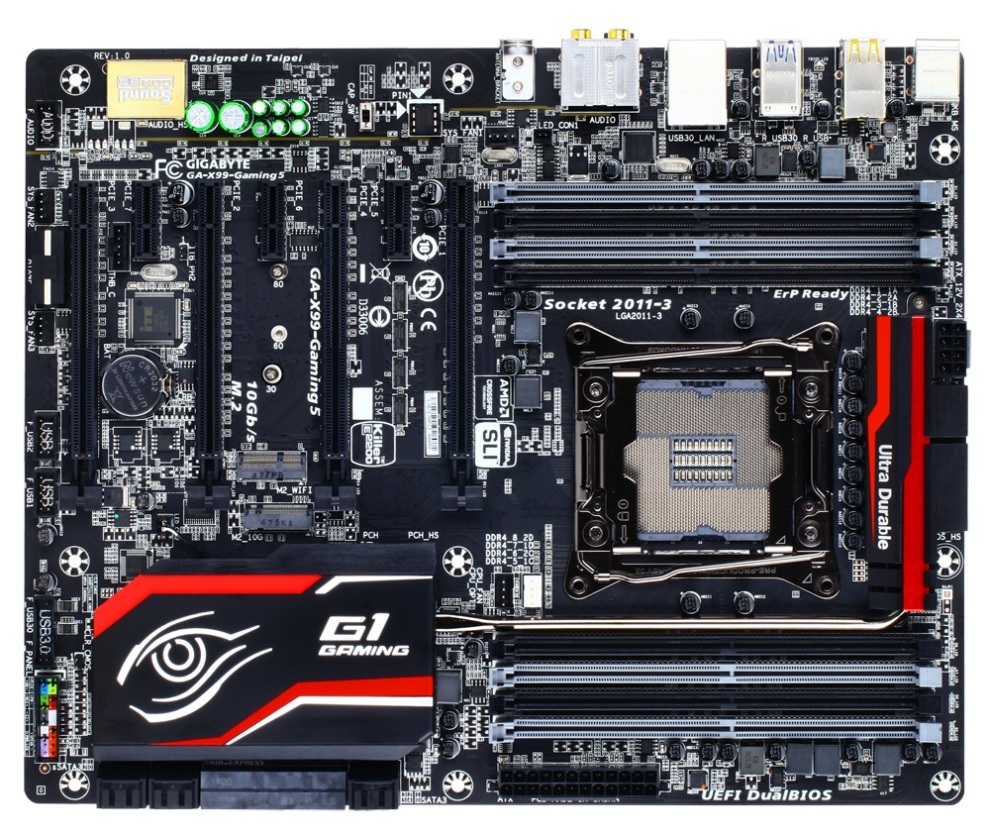

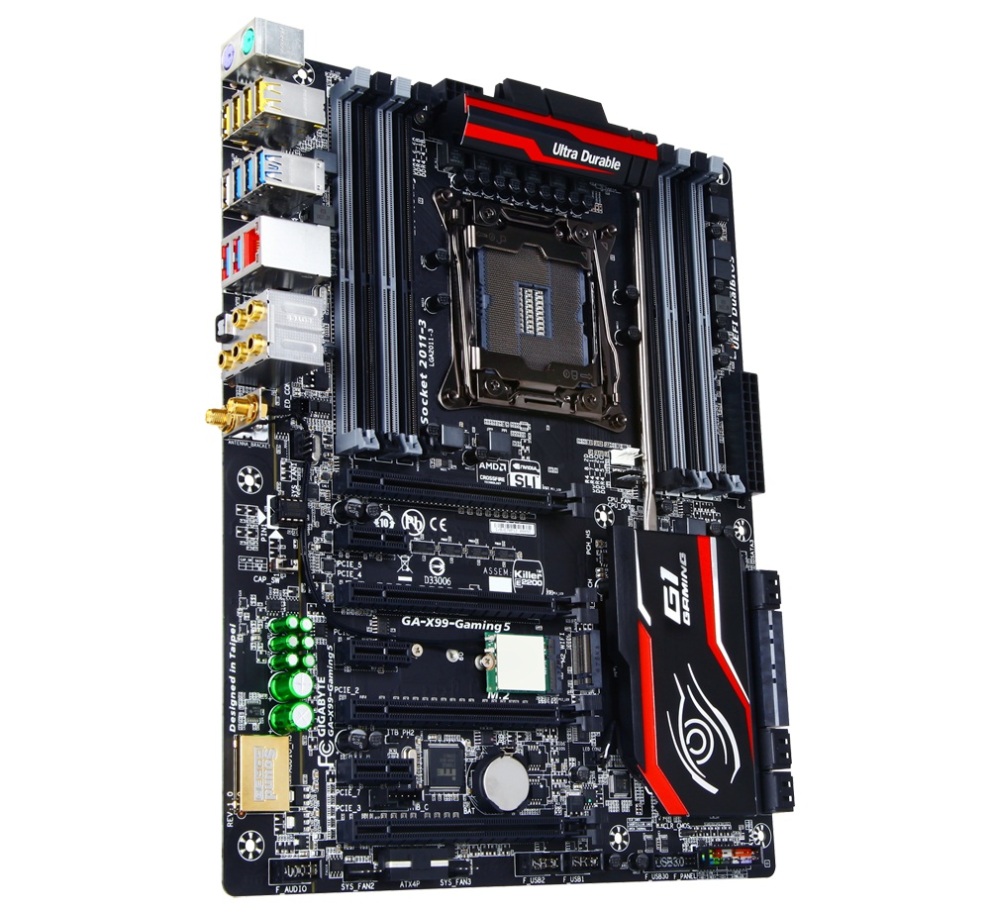

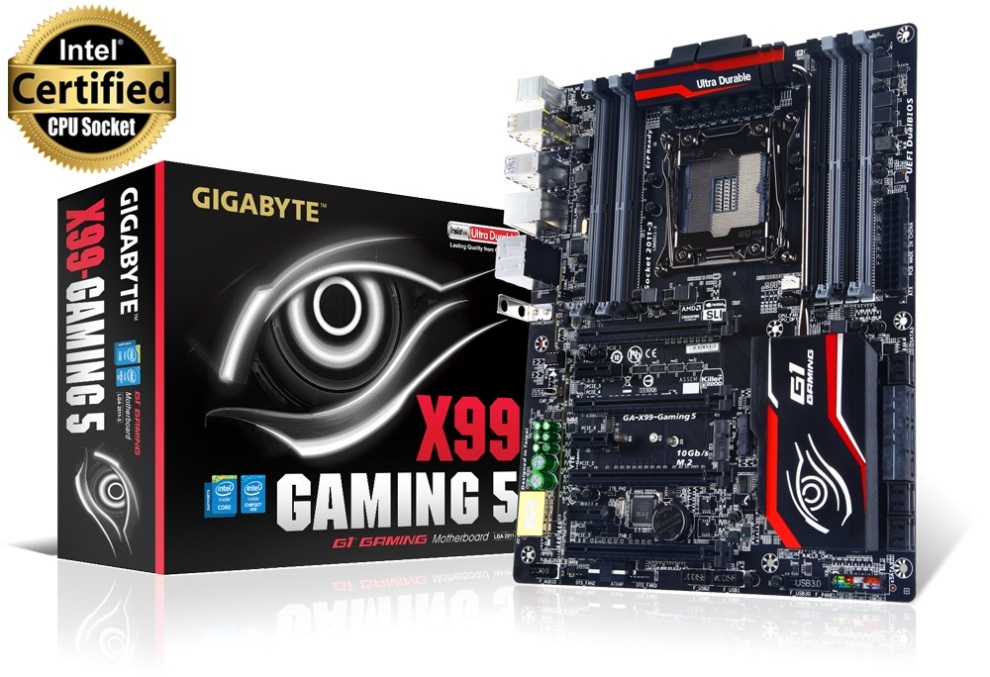

مادربرد گیگابایت X99-Gaming 5

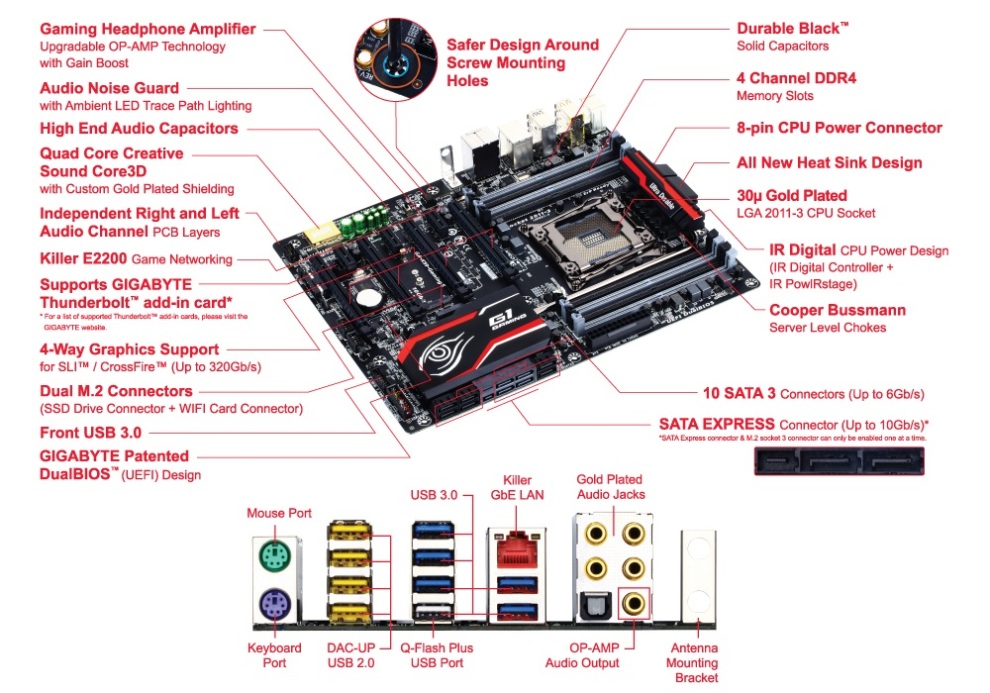

پشتیبانی از نسل جدید Intel® Core™ i7 Processor Extreme Edition
دارای 4 کانال DDR4 و 8 DIMM

طراحی کاملا دیجتالی پاور با IR Digital PWM & IR PowIRstage® ICs
پشتیبانی از 4-Way با Lane های پریمیوم و قابلیت ارایه پهنای باند استاندارد (4X ) Gb/s 64

فناوری Dual M.2 Technology برای SSD و کارتOnboardWIFI

استفاده از 30 میکرون آبکاری طلا برای CPUsocket, Memory DIMMs ,PCIe slots

پردازنده آنبورد چهار هسته ای Creative Sound Core3D™
تکنولوژی AMP-UP با قابلیت منحصر به فرد ارتقا به OP-AMP

لایه های جدا PCB کانال صدای چپ و راست
LED نوری برای audio guard پنل پشتی
پورت های صورتی با روکش طلا
خازن های رده بالا ازجنس Nichicon
شبکه بازی Killer™ E2200 از Qualcomm با بازدهی عالی و سازگار با کنترلر gigabit Ethernet به شما بازی انلاین بهتر
وعملکرد بهتر در رسانه های انلاین را ارایه میدهد .
پشتیبانی SATA اکسپرس تا 10 گیگابایت بر ثانیه
طول عمر طولانی با خازن های مقاوم Black™ Solid

APP Center including EasyTune™ and Cloud Station™ utilities
آماده برای Thunderbolt™
بایوس دوگانه UEFI گیگابایت همراه با Q-Flash Plus USB port
طراحی امن تر اطراف جای پیچ ها

CPU | - Support for Intel® Core™ i7 processors in the LGA2011-3 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
Chipset | - Intel® X99 Express Chipset
|
Memory | - 8 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. - 4 channel memory architecture
- Support for DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support for RDIMM 1Rx8 memory modules (operates in non-ECC mode)
(Please refer "Memory Support List" for more information.) |
Audio | - Creative® Sound Core 3D chip
- Support for Sound Blaster Recon3Di
- TI Burr Brown® OPA2134 operational amplifier
- High Definition Audio
- 2/5.1-channel
- Support for S/PDIF Out
|
LAN | - Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)
|
Expansion Slots | - 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots. - 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4)
* The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode. * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode. (All PCI Express x16 slots conform to PCI Express 3.0 standard.) - 3 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.) - 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
|
Multi-Graphics Technology | - Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
* The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration." |
Storage Interface | Chipset: - 1 x M.2 PCIe connector
(Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support) - 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed. (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.) Chipset: - 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
(An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.) |
USB | Chipset: - 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub: - 4 x USB 3.0/2.0 ports on the back panel
|
Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 1 x I/O shield audio LED power connector
- 1 x heatsink LED power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 10 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Thunderbolt add-in card connector
- 1 x Clear CMOS jumper
- 1 x audio gain control switch
|

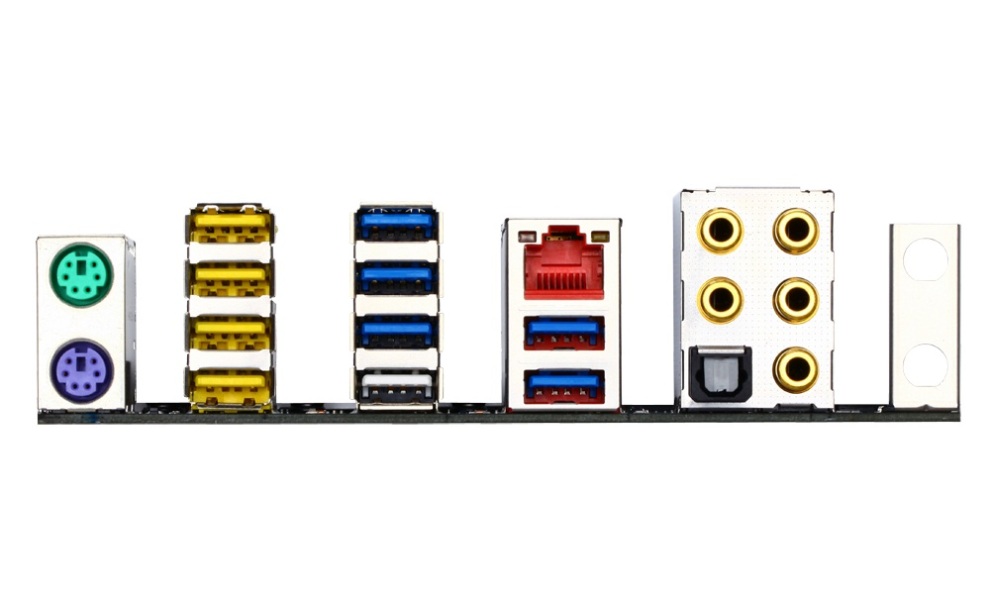

Back Panel Connectors | - 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 6 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x optical S/PDIF Out connector
- 1 x RJ-45 port
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
- 2 x Wi-Fi antenna connector holes
|
I/O Controller | - iTE® I/O Controller Chip
|
H/W Monitoring | - System voltage detection
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS | - 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- Support for Q-Flash Plus
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features | - Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS Ambient LED EasyTune EZ Setup Fast Boot Game Controller Cloud Station ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker V-Tuner - Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
|
Bundle Software | - Norton® Internet Security (OEM version)
- Intel® Smart Response Technology
|
Operating System | - Support for Windows 8.1/8/7
|
Form Factor | - ATX Form Factor; 30.5cm x 24.4cm
|
Remark | - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
