Model

Brand

ASUS

Model

B150M-C/CSM

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel B150

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor
Multi-VGA output support: HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2 x PCI Express 3.0/2.0 x16 (1 @ x4 mode)

PCI Express x1

1 x PCIe 3.0/2.0 x1

PCI Slots

1 x PCI Slot

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s port(s), gray

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek 8111F

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 Keyboard (Purple)
1 x PS/2 Mouse port (Green)

Video Ports

1 x DVI-D
1 x D-Sub

HDMI

1 x HDMI

DisplayPort

1 x DisplayPort

USB 3.0

4 x USB 3.0/2.0

USB 1.1/2.0

2 x USB 2.0/1.1

Audio Ports

3 Audio jacks support 8 channel*
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Internal I/O Connectors

Onboard USB

1 x USB 3.0/2.0 connectors support additional 2 USB 3.0 ports
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0 ports

Other Connectors

1 x CPU Fan connector
2 x Chassis Fan connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Speaker connector
2 x COM port header
1 x LPT port header
1 x Chassis Intrusion header
1 x Clear CMOS header
1 x MONO-out header
1 x 14-1 pin TPM header

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

9.60" x 8.90"

Power Pin

24 Pin

Features

Features

Special Features:
ASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Mobo Connect
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Operating System Support:
Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit *2

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

*2: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.

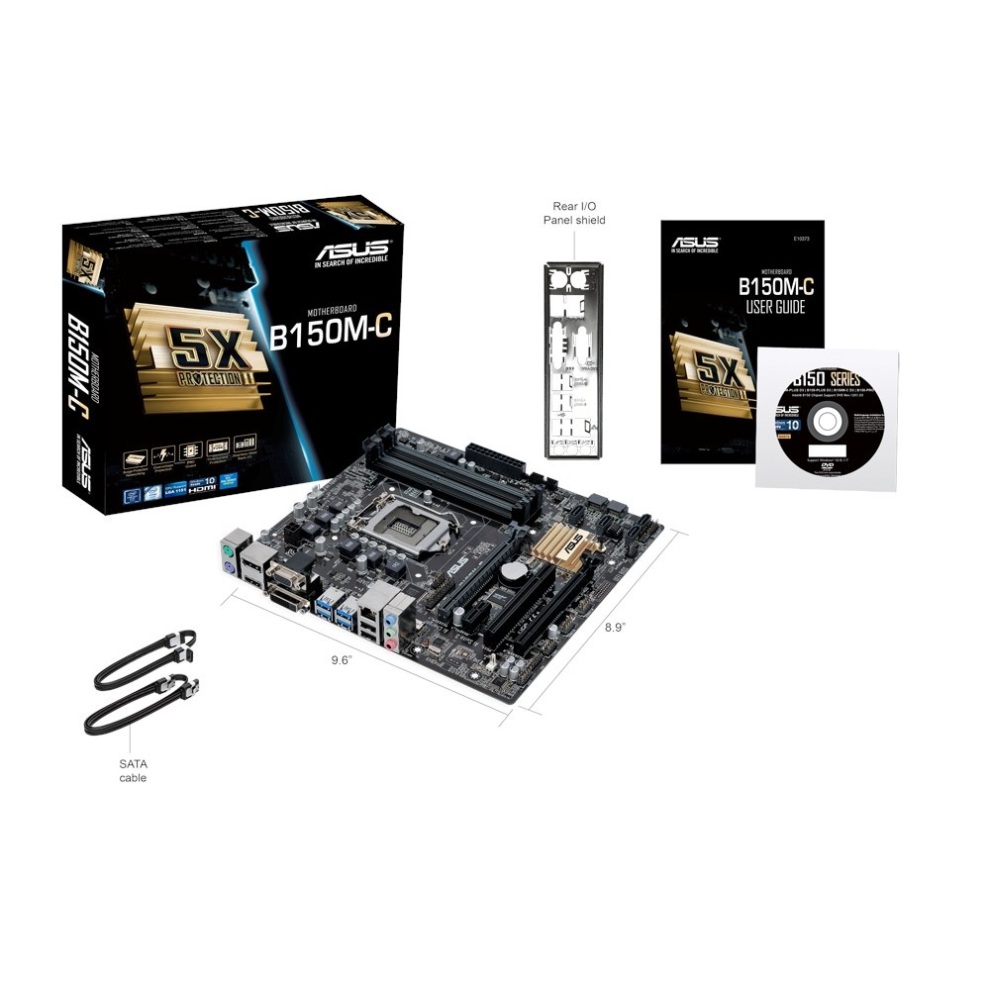

Packaging

Package Contents

Accessories:
2 x Serial ATA 6.0Gb/s cable
1 x Support DVD
1 x I/O Shield
User's manual
