رم کینگ استون DDR4 2400Mhz ECC

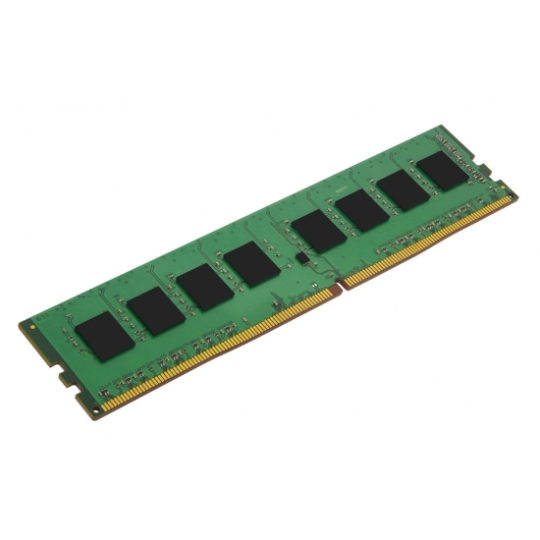

ValueRAM's KVR24E17D8/16 is a 2G x 72-bit (16GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD=1.2V Typical • VDDQ = 1.2V Typical

• VPP - 2.5V Typical • VDDSPD=2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

• Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus • On-die VREFDQ generation and calibration • Dual-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• Temperature sensor with integrated SPD

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free
