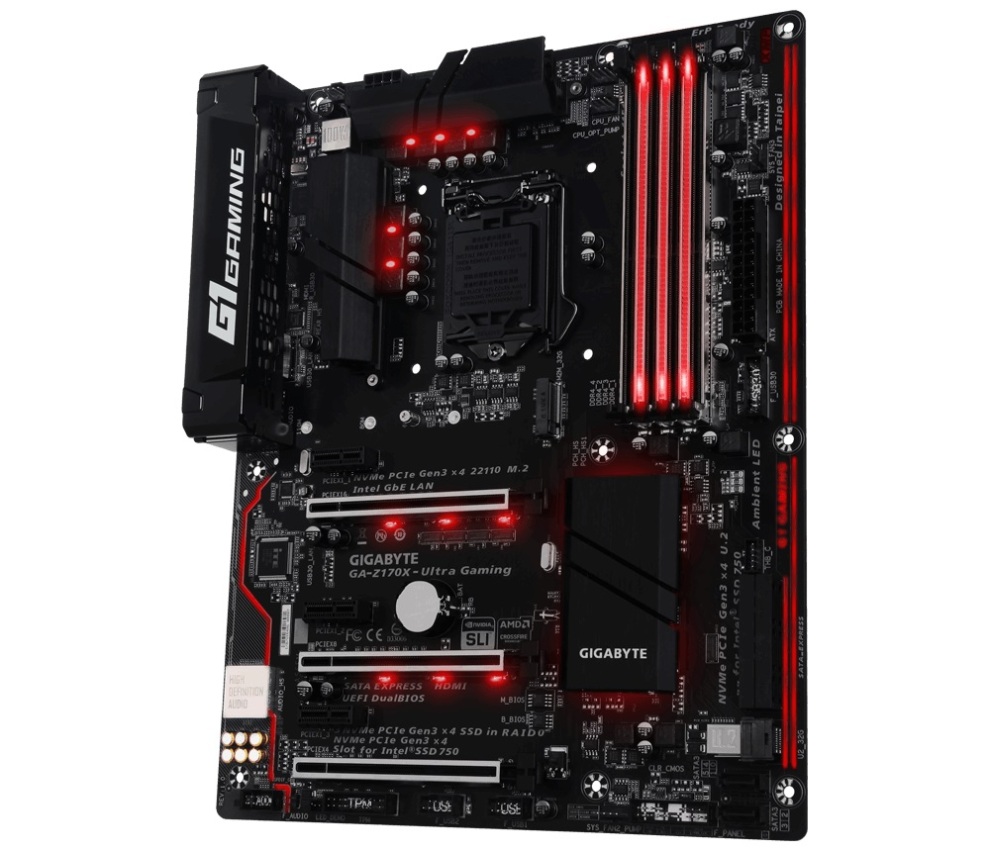

مادربرد گیگابایت زد170 Z170X-Ultra Gaming

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel® Z170 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
   (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

ŠŠ

1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
   * Support for HDMI 1.4 version.
2. 1 x Mini-DisplayPort, supporting a maximum resolution of [email protected] Hz
   * Support for DisplayPort 1.2 version.

Maximum shared memory of 512 MB

1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the SATA3 0/1 connectors. When the PCIEX4 slot is installed with a x4 or above card, the SATA 3 0/1 connectors becomes unavailable.
4. 3 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 1 x U.2 connector
3. 2 x SATA Express connectors
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-8 Internal Connectors," for the installation notices for the U.2, M.2, SATA Express, and SATA connectors.

Chipset+Intel® USB 3.1 Controller:

1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
2. 1 x USB 3.1 Type-A port (red) on the back panel

Chipset:

1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

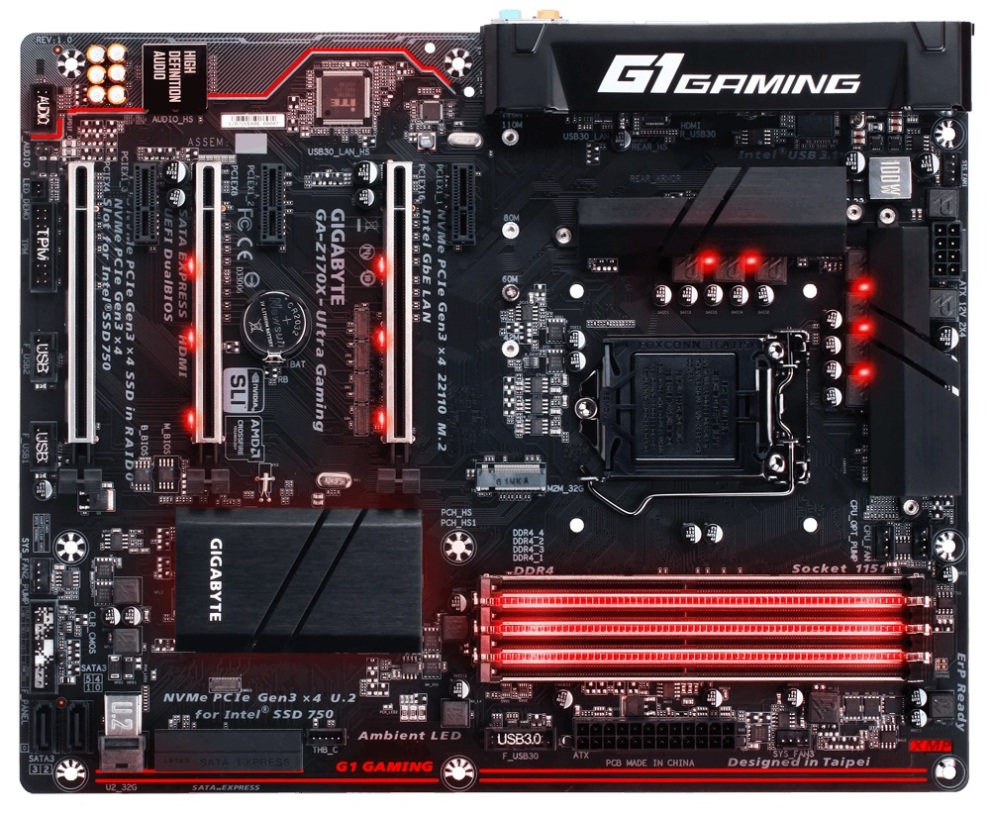

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x U.2 connector
4. 1 x M.2 Socket 3 connector
5. 2 x SATA Express connectors
6. 6 x SATA 6Gb/s connectors
7. 1 x CPU fan header
8. 1 x water cooling fan/pump header (CPU_OPT_PUMP)
9. 2 x system fan headers
10. 1 x system fan/water cooling pump header (SYS_FAN2_PUMP)
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB 3.0/2.0 header
14. 2 x USB 2.0/1.1 headers
15. 1 x S/PDIF Out header
16. 1 x Trusted Platform Module (TPM) header
17. 1 x Thunderbolt™ add-in card connector
18. 1 x Clear CMOS jumper

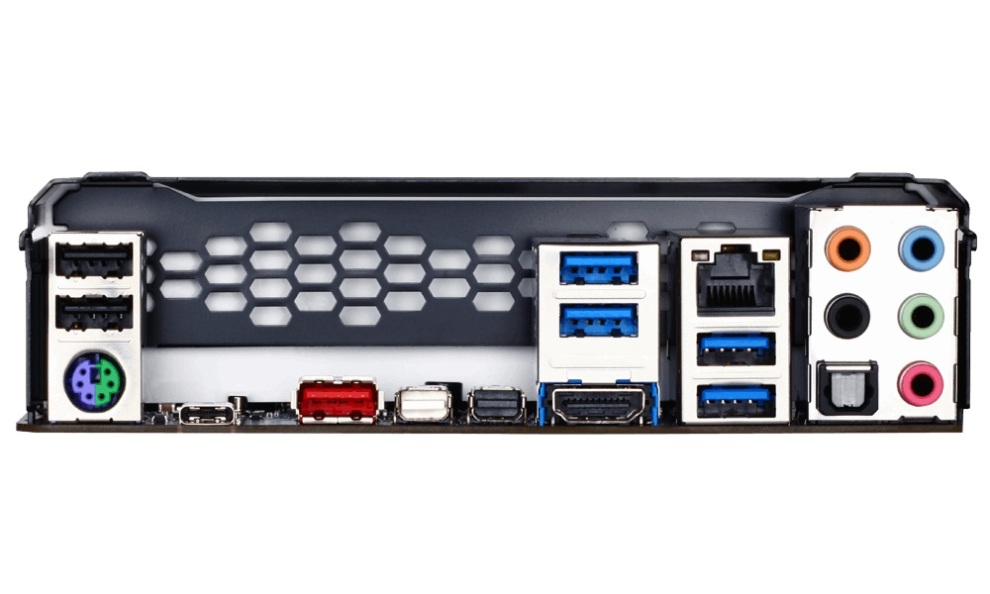

1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 support
3. 1 x USB 3.1 Type-A port (red)
4. 1 x Mini-DisplayPort In port
5. 1 x Mini-DisplayPort
6. 1 x HDMI port
7. 4 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

1. iTE® I/O Controller Chip

1. System voltage detection
2. CPU/System/Chipset temperature detection
3. CPU/CPU OPT/System fan (pump) speed detection
4. CPU/System/Chipset overheating warning
5. CPU/CPU OPT/System fan (pump) fail warning
6. CPU/CPU OPT/System fan (pump) speed control
   * Whether the fan speed control function is supported will depend on the fan (pump) you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   BIOS Setup
   Color Temperature
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   ON/OFF Charge
   Platform Power Management
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
   V-Tuner
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

1. Norton® Internet Security (OEM version)
2. Intel® Smart Response Technology
3. cFosSpeed

1. Support for Windows 10/8.1 64-bit
2. Support for Windows 7 32-bit/64-bit
   * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

1. ATX Form Factor; 30.5cm x 24.4cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
