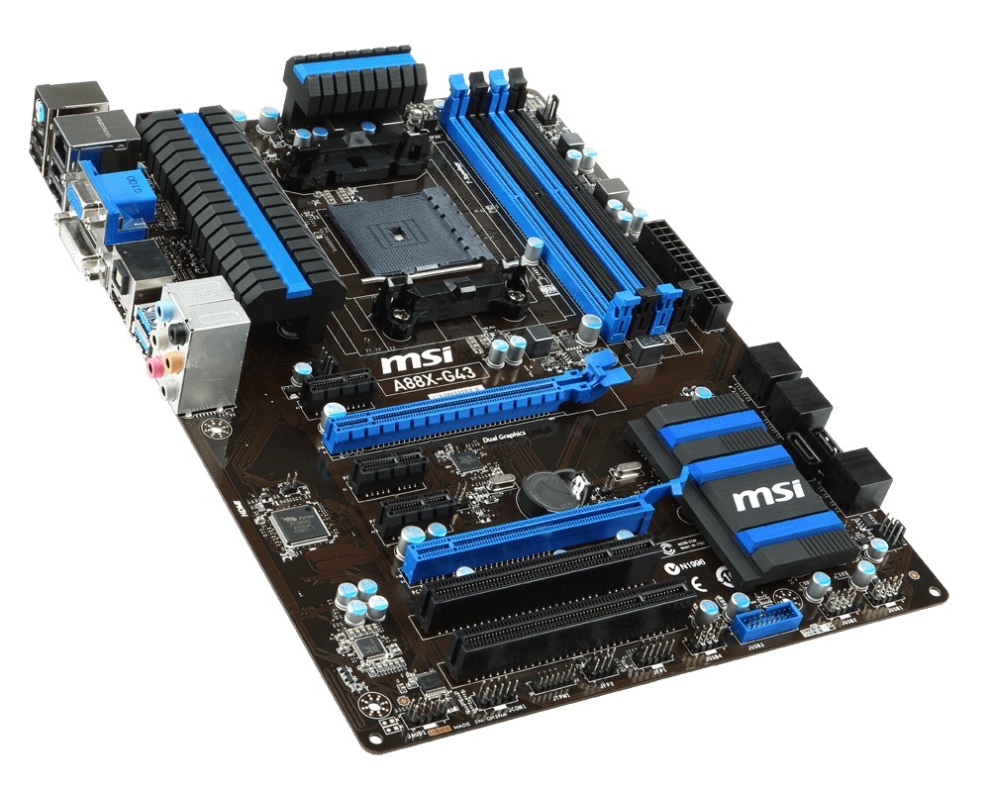

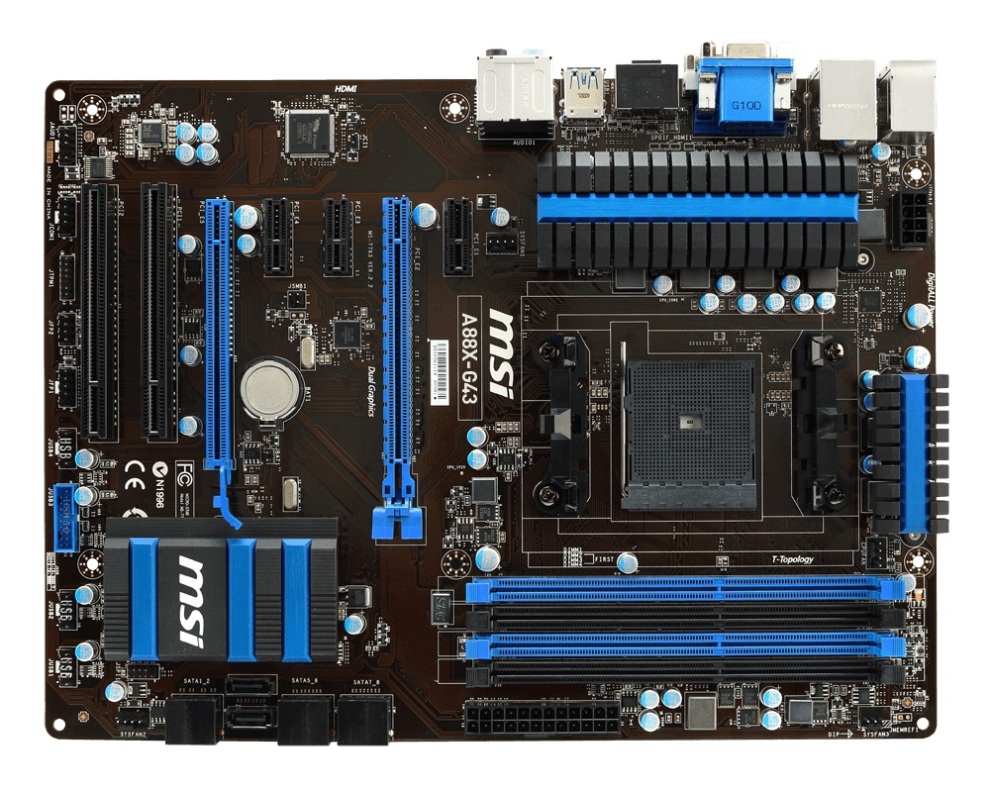

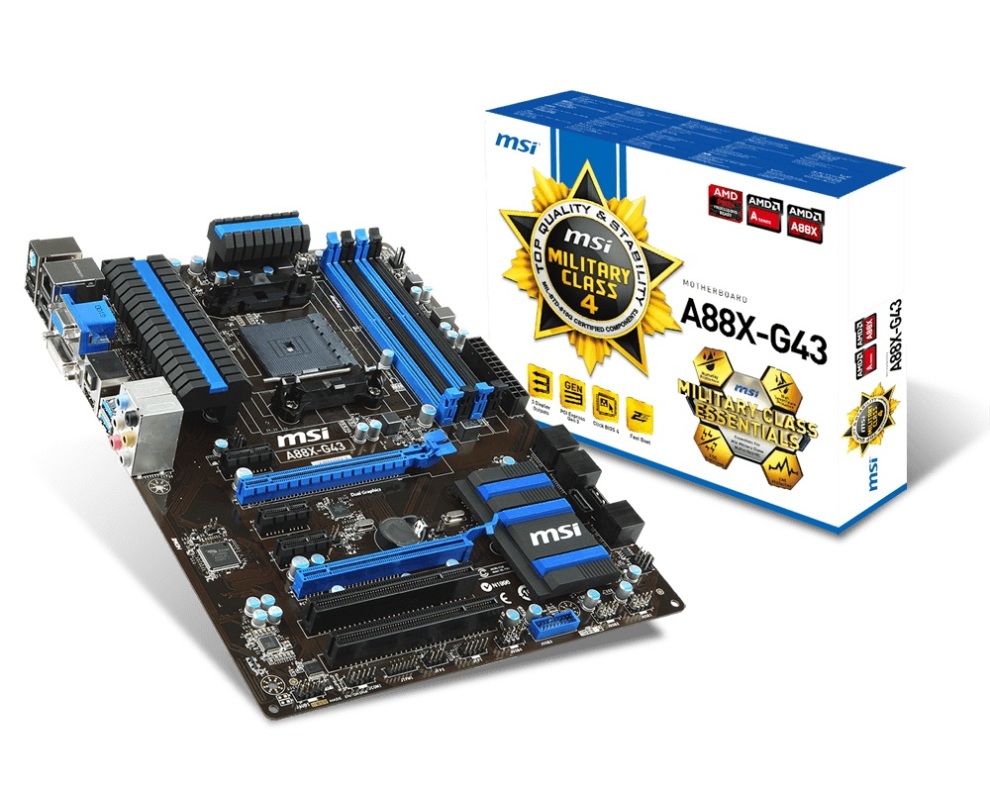

مادربرد ام اس آی A88X-G43

Model

Brand

MSI

Model

A88X-G43

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

Athlon/A- Series

Chipsets

Chipset

AMD A88X (Bolton D4)

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2133/1866/1600/1333

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1

PCI Express 2.0 x16

1 (running at x4)

PCI Express x1

3

PCI Slots

2

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Realtek ALC892

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek 8111E

Max LAN Speed

10/100/1000Mbps

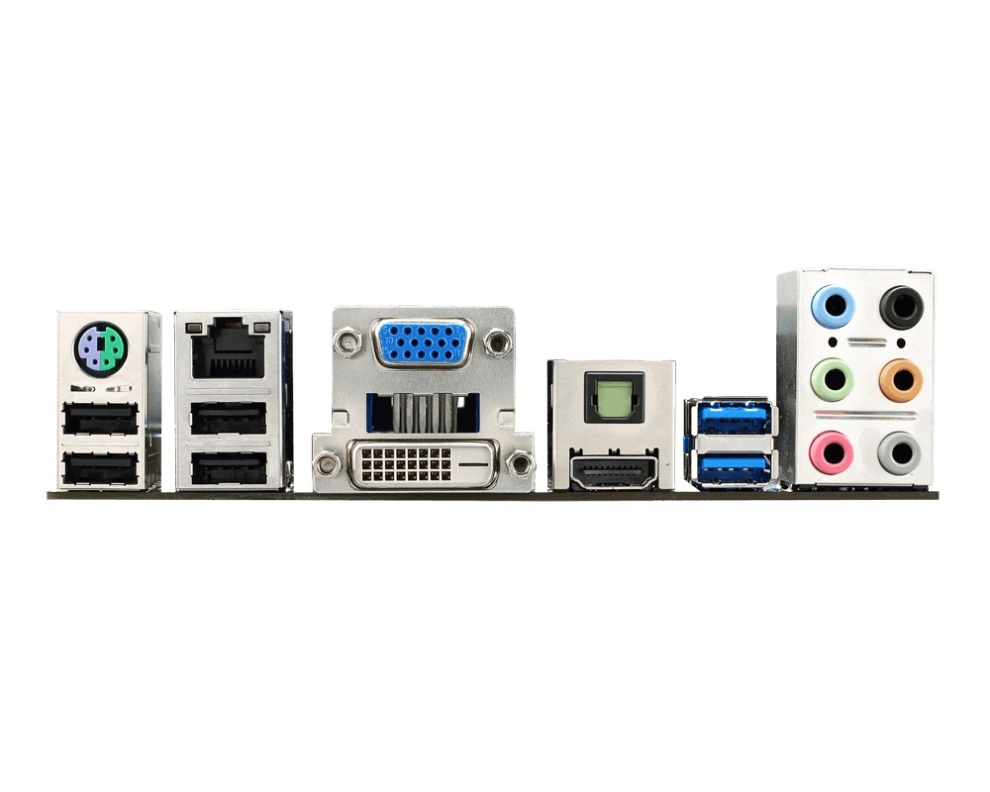

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D
1 x D-SUB

HDMI

1 x HDMI

USB 1.1/2.0

4 x USB 2.0

USB 3.0

2 x USB 3.0

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 6 x USB 2.0

Other Connectors

1 x ATX 24-Pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU fan connectors
2 x 4-pin system fan connectors
1 x Clear CMOS jumper
1 x Serial port connector
2 x System panel connectors
1 x Trusted Platform Module (TPM) header
1 x Front Panel Audio connector
1 x Chassis Intrusion connector

Physical Spec

Form Factor

ATX

Dimensions

12.0" x 8.9"

Power Pin

24 Pin

Features

Features

Military Class 4: Top Quality & Stability

Military Class Essentials: Total Protection for Military Class Motherboards

OC Genie 4: Overclock in 1 Second

Click BIOS 4: Easily Fine-tune Your System

4K UHD Support: Ultra-high Definition Visual Experience

3 Display Outputs: HDMI/DVI/D-Sub Support

PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand

Multi-GPU: AMD CrossFire Support

Command Center: Control & Customize Your PC Settings

Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
