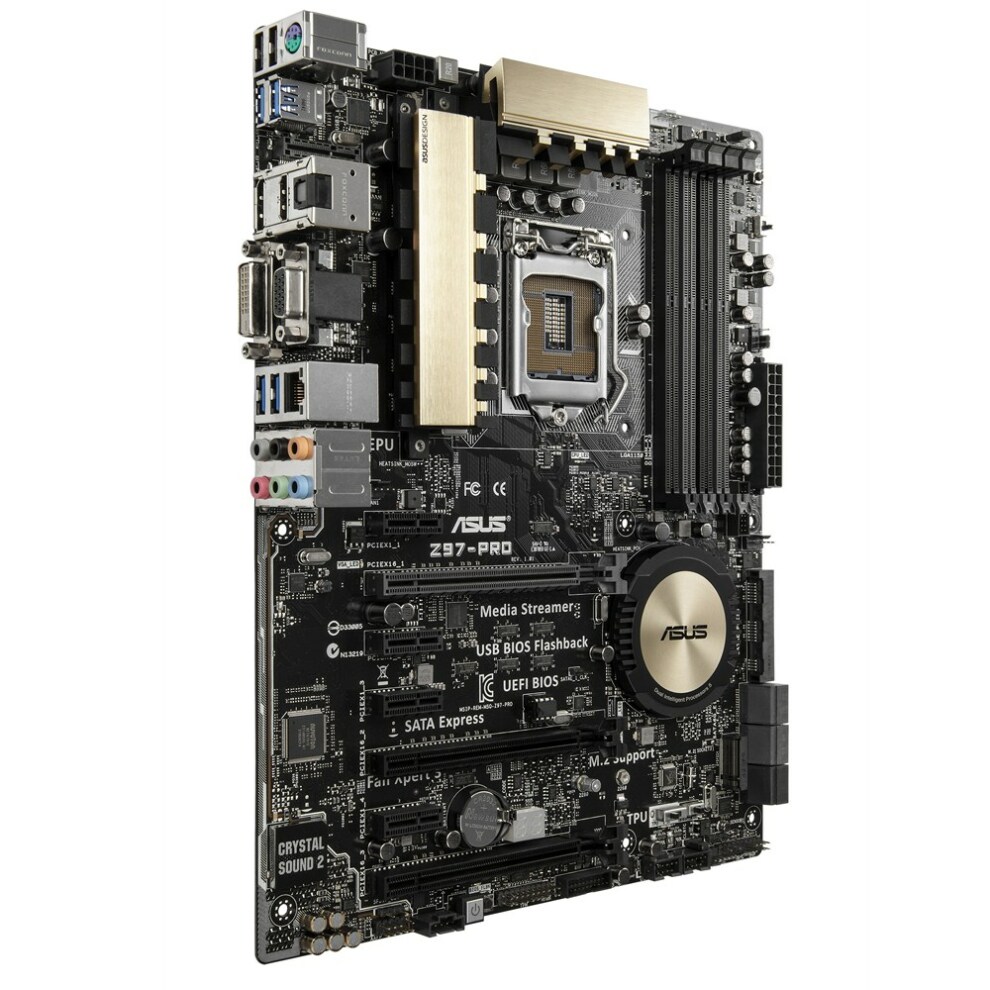

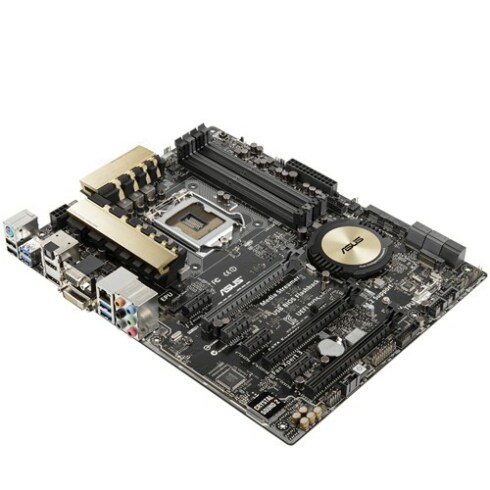

مادربرد ایسوس Z97-Pro

Model

Brand

ASUS

Model

Z97-PRO

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset

Intel Z97

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2 (single at x16 or dual at x8/x8 mode)

PCI Express 2.0 x16

1 (x4 mode)

PCI Express x1

4

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

SATA Express

1 x SATA Express

M.2

1 x M.2 Socket 3 with M Key

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel I218-V

Max LAN Speed

10/100/1000Mbps

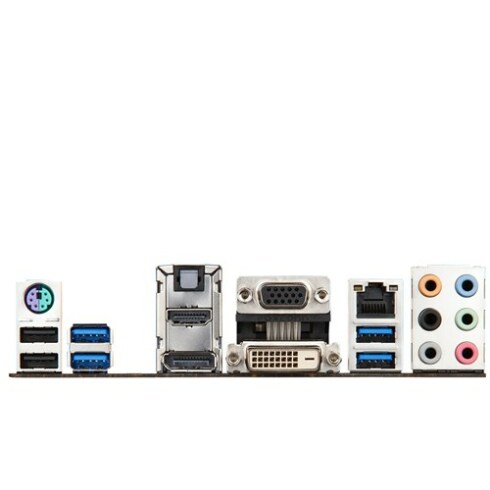

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D
1 x VGA

HDMI

1 x HDMI

DisplayPort

1 x DisplayPort

USB 3.0

4 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

4 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x MemOK! button
1 x Clear CMOS jumper
1 x USB BIOS Flashback button
1 x DRCT(Direct Key) connector
1 x TPU switch (advanced two-stage adjustments)
1 x EPU switch
1 x EZ XMP switch
1 x Power-on button

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

5-Way Optimization by Dual Intelligent Processors 5

DIGI+ Power Control
-CPU Power
-Industry leading digital 12-phase power design
- ASUS CPU power utility
- DRAM Power
- Industry leading digital 2-phase DRAM power design
- ASUS DRAM power utility

TPU
- Auto Tuning, TPU, GPU Boost, 2-level TPU switch

EPU
- EPU, EPU switch
Fan Xpert 3: featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App: featuring system performance tuning, network priority, and audio scene configuration for selected applications.

UEFI BIOS
- Most advanced options with fast response time

M.2 & SATA Express onboard
-The latest transfer technologies with up to 10Gb/s data-transfer speeds

Special Memory O.C. Design
-Superb memory O.C. capability under full load by minimizing the coupling noise and signal reflection effect

ASUS HomeCloud Server
Remote GO!
- Remote GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems

Media Streamer
- Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!
- Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems

Turbo APP
- Perform each application with tailored performance, network priority and audio configuration for your needs

Turbo LAN
- Experience smooth online gaming with lower pings and less lags

Crystal Sound 2
- Feel the sound power with different usage scenarios.

Steam support
-Compatible with the most fun gaming platform under Windows system

Push Notice
- Monitor your PC status with smart devices in real time

USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling

UEFI BIOS EZ Mode featuring friendly graphics user interface
- O.C. Tuner
- CrashFree BIOS 3
- EZ Flash 2

Packaging

Package Contents

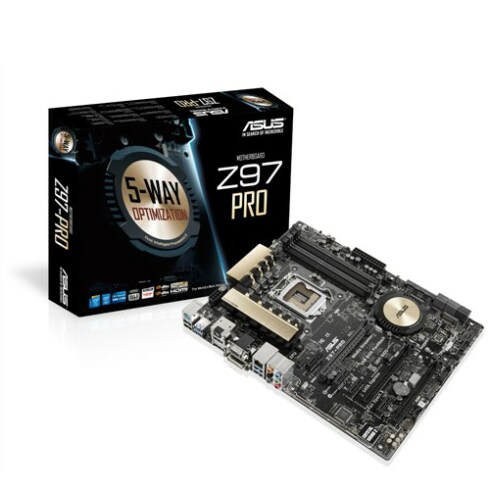

ASUS Z97-PRO Motherboard
4 x Serial ATA 6.0Gb/s cables
1 x ASUS SLI bridge connector
1 x ASUS Q-Shield
1 x 2 in 1 Q-connector
1 x user's manual
1 x Z97 Series Exclusive Feature manual
