پاور ای وی جی ای 550 وات SuperNOVA 550 G2

Model

Brand

EVGA

Model

220-G2-0550-Y1

Details

Type

ATX12V / EPS12V

Maximum Power

550W

Fans

140mm Double Ball Bearing

Main Connector

24Pin

+12V Rails

Single

PCI-Express Connector

1 x 6-Pin, 2 x 6+2-Pin

SATA Power Connector

9

SLI

SLI Ready

CrossFire

CrossFire Ready

Modular

Full Modular

Efficiency

90% (115VAC) / 92% (220VAC - 240VAC) or Higher Typical

Energy-Efficient

80 PLUS GOLD Certified

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Input Current

10A

Output

[email protected], [email protected], [email protected], [email protected], [email protected]

MTBF

>100,000 Hours

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

Dimensions

3.35" x 5.91" x 6.50"

Weight

6.00 lbs.

Protection

Over Voltage Protection

Yes

Short Circuit Protection

Yes

Under Voltage Protection

Yes

Over Current Protection

Yes

Over Power Protection

Yes

Features

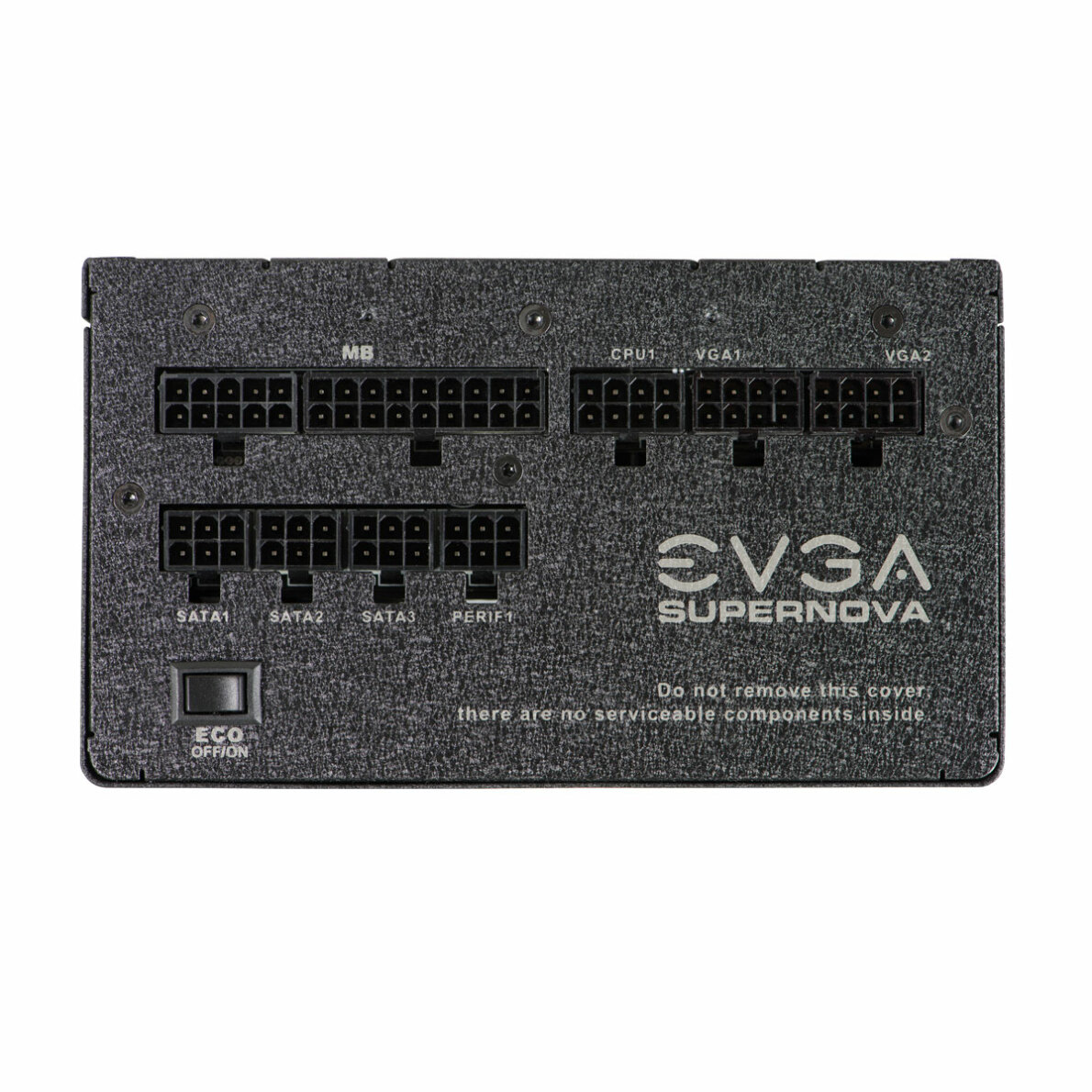

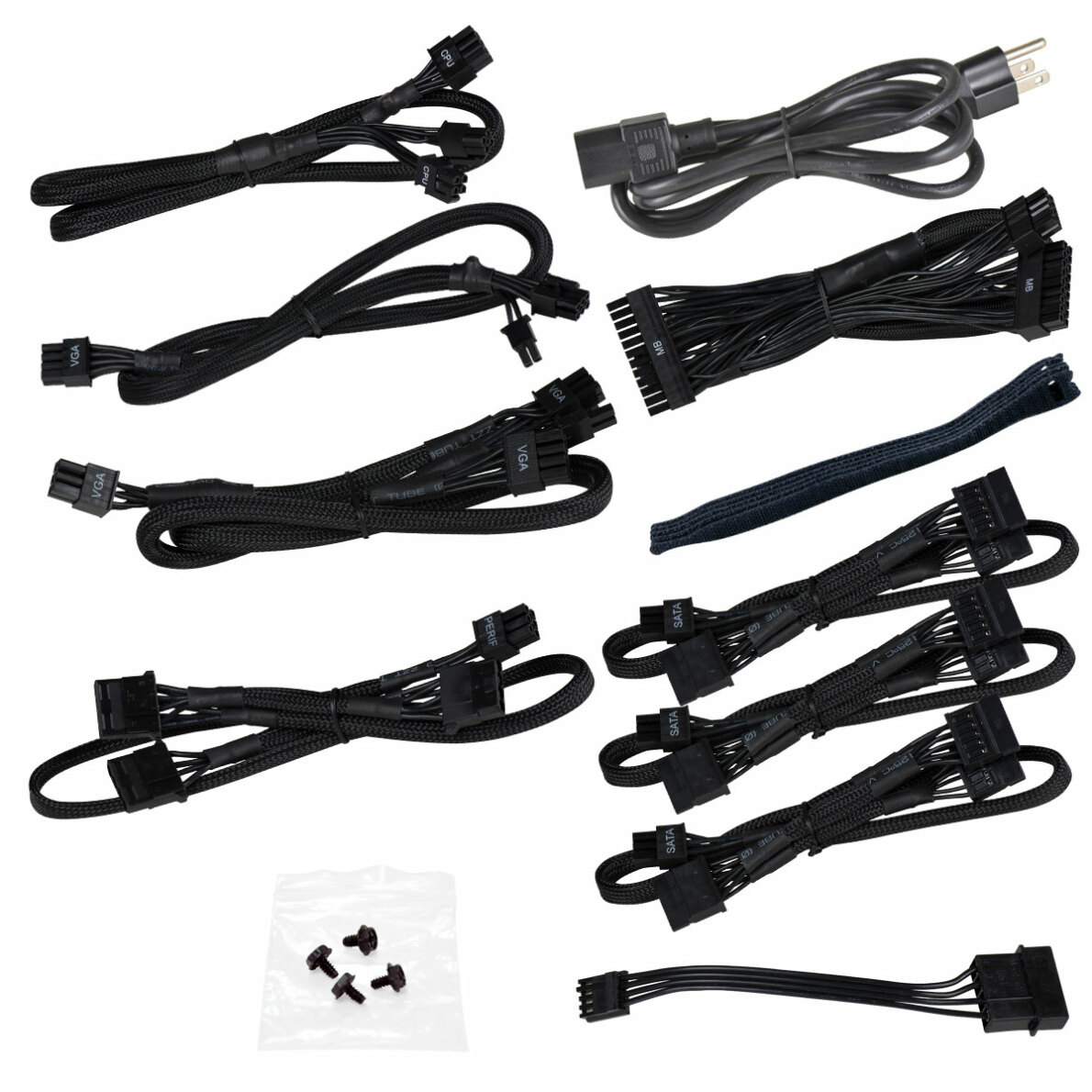

Connectors

1 x 24-Pin ATX
1 x 8-Pin (4+4) EPS (CPU)
2 x 8-Pin (6+2), 1 x 6-Pin PCIE
9 x SATA
3 x FourPin Peripheral
1 x Floppy

Features

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC - 240VAC) efficiency or higher under typical loads.

Highest quality Japanese brand capacitors ensure longterm reliability.

Fully Modular to reduce clutter and improve airflow.

NVIDIA SLI & AMD Crossfire Ready.

Heavyduty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection).

Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45 degree C).
