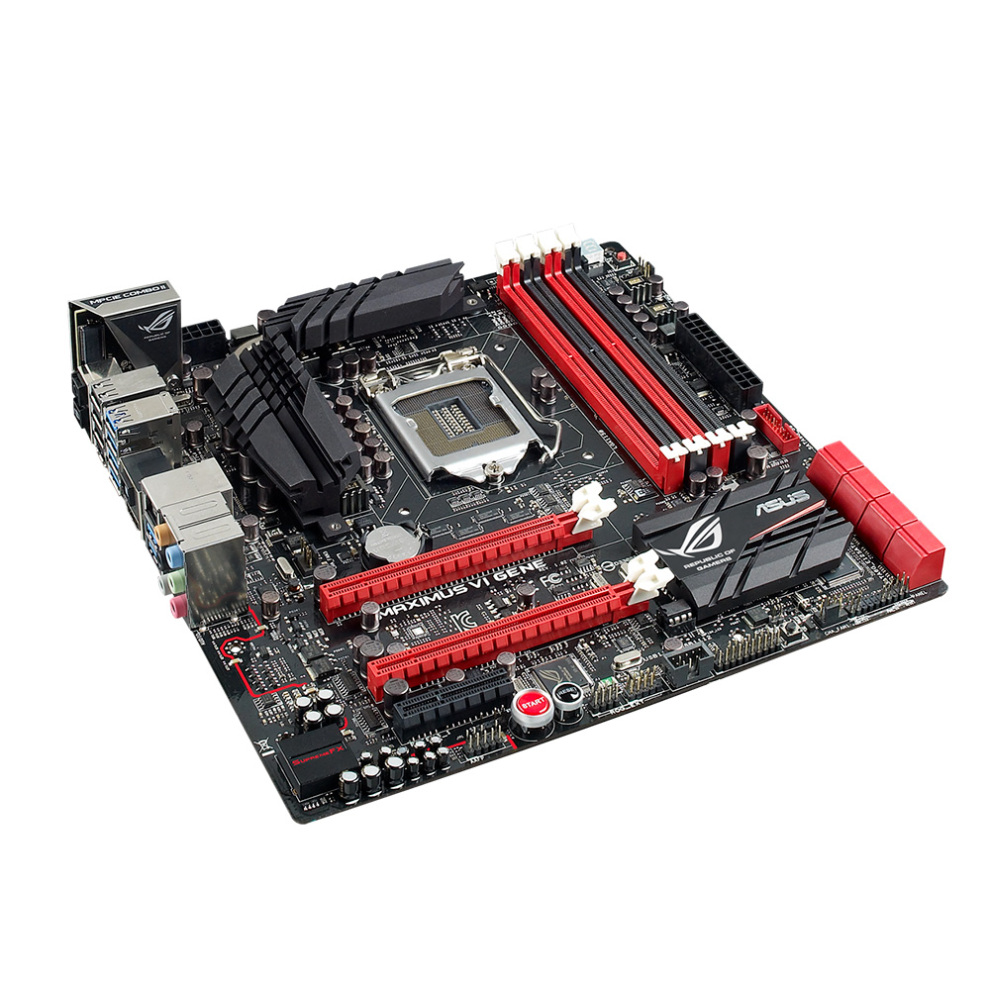

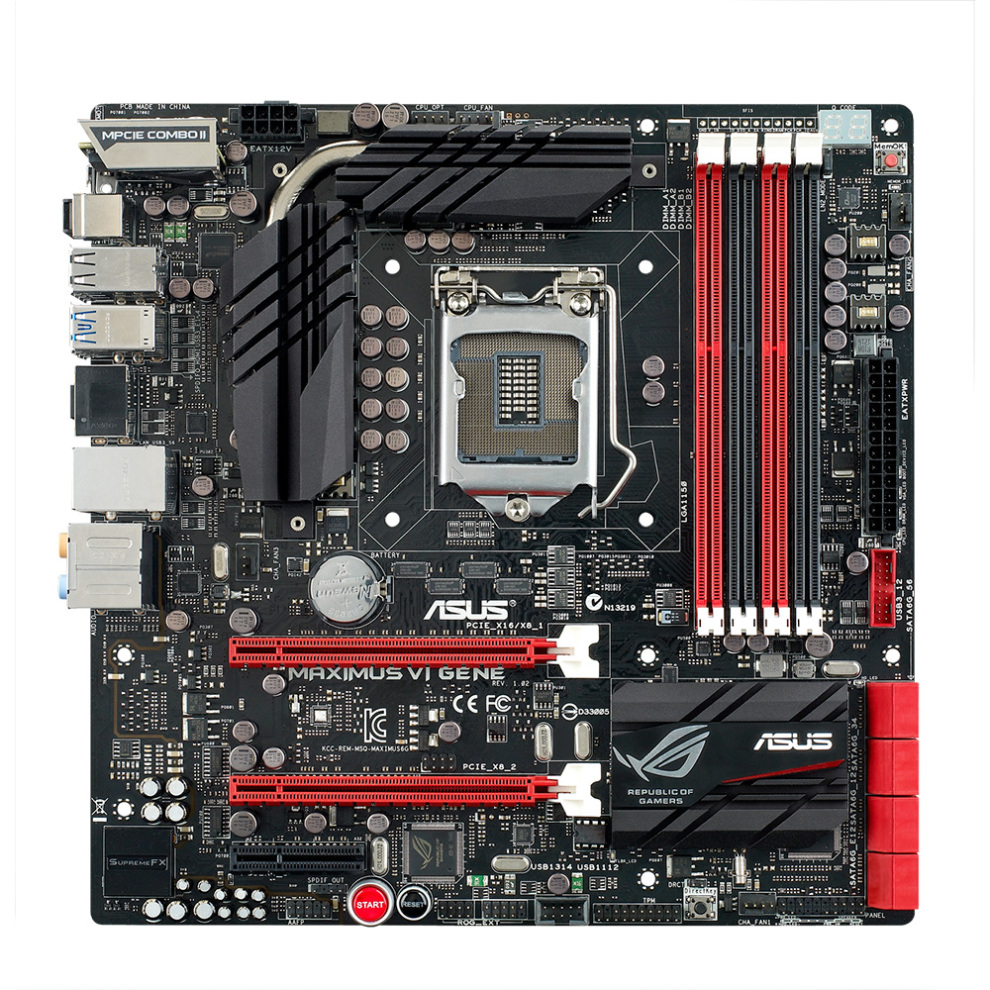

مادربرد ایسوس Maximus VI GENE

ASUS Maximus VI GENE LGA1150 Z87 Mainboard
گارانتی (گارانتی اصلی ( تابا , لایفبرد , سازگار , ویستا ))
کد کالا: Lion-Product-3772

ناموجود

Maximus VI GENE: Best mATX Z87 Gaming and Overclocking Motherboard

MAXIMUS VI IMPACT
The ROG GENE Series has long been the favorite choice of micro ATX power seekers. GENE boards have been the official BlizzCon motherboards for three consecutive years, forming the foundation for all official PCs used at the 2012 Battle.net World Championship.

Staying true to tradition, Maximus VI GENE arrives fully loaded for action. Extreme Engine Digi+ III precision power delivery, exclusive tuning utilities, and advanced gaming features. These include SupremeFX 115dB SNR crystal-clear audio, the Sonic Radar visualized in-game overlay, Intel® Ethernet, and GameFirst II network optimization. Eager for mATX domination? Look no further.



MAXIMUS VI IMPACT

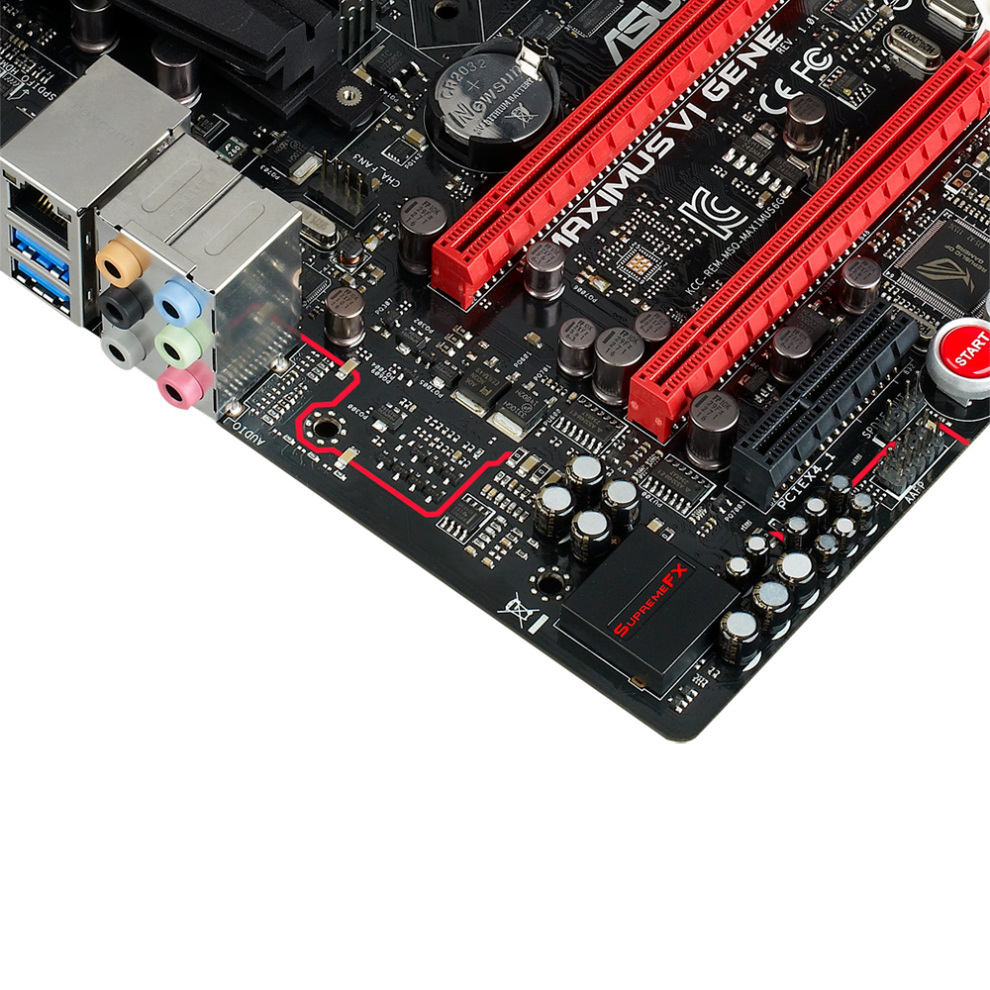

SupremeFX

Differential signal design achieves 115dB SNR discrete-caliber audio
ROG has upped the game audio ante with an advanced differential circuit design. It includes an Op-Amp that combines two opposite-phased signals while filtering out noise interference during transmission, providing clear audio stream output with double the intensity.

Moreover, SupremeFX on Maximus VI GENE also implements multi-approach shielding, with ELNA audio capacitors helping offer 8-channel HD sound that's equal in power, clarity, and range to dedicated sound cards. This is the first-ever onboard sound capable of true audiophile-grade performance, set to revolutionize the way you hear games, movies, music, and even other people via chat. Discover a whole new dimension of superior audio and get ready to rule. Click the button to learn more about SupremeFX!





MAXIMUS VI IMPACT



mPCIe Combo II

The next evolution of the mPCIe Combo card gives you even better expandability with the latest standards in connectivity. It's easy to install, and adds mini PCI Express 2.0 plus USB 2.0, which is perfect for connecting Wi-Fi and Bluetooth modules to give your desktop instant wireless. It also keeps a precious PCI Express slot free.

The compact but versatile card further future-proofs your build with M.2 (NGFF, Next Generation Form Factor) connectivity for SSDs. M.2 is a fast and power-efficient standard that aims to replace mPCIe and mSATA, designed to optimize SSD performance. mPCIe Combo II works with your high speed M.2 SSDs and makes the most of their potential, helping you reduce load times to make your OS and games even faster.



MAXIMUS VI IMPACT



Extreme Engine Digi+ III

Hardcore power delivery with premium components
Completely digital architecture attains total control over the Fully Integrated Voltage Regulators (FIVR) of Intel® processors to supply the highest stability and precision for the CPU and memory. The design features dynamic speed adjustments alongside intricate manual controls that allow you to push processors and RAM beyond their limits.

Power components are also upgraded. NexFET MOSFETs handle up to 90% efficiency under normal operation and better durability in half the size of standard MOSFETs. Exclusive BlackWing chokes remain cool even when sizzling with as much as 60 amps of power with 35 - 40°F (3 - 5°C) lower temps and minimal-loss power delivery. Japan-made 10K Black Metallic capacitors last five times longer and deliver 20% greater extreme temperature endurance than generic solid state capacitors, easily standing up to hardcore demands.



MAXIMUS VI IMPACT



Upgraded UEFI BIOS

Most award-winning in its class
The new ROG UEFI BIOS includes a Last Modified feature that records recent changes. And to make sure you never forget a tuning idea, the in-BIOS Quick Note is perfect for jotting down memos and system details. It sure beats easily-misplaced paper notes! There's also F4 for My Favorites and Shortcuts for easy access to the BIOS features you need most, and you can even adjust boot logo size. The new BIOS also lets you name individual SATA ports so you can easily identify them to save time when defining boot sequences and other drive-related settings.

With ROG Pulse, a cool flashing ROG logo indicates system activity, and very importantly, the helpful SSD Secure Erase has been added, restoring SSD speed from inside the BIOS and with no need for less compatible third party utilities. Click the upper right tab to learn more.



MAXIMUS VI IMPACT

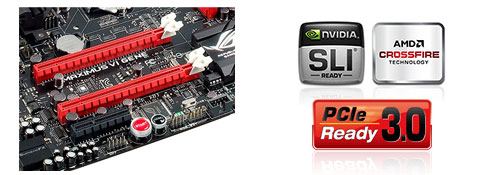

SLI / CrossFire On-Demand

Why choose when you can have both?
SLI or CrossFireX? Fret no longer because with the ROG Maximus VI GENE, you'll be able to run both multi-GPU setups. The board features SLI / CrossFire on Demand technology, supporting up to Quad-GPU SLI or Quad-GPU CrossFireX configuration. Whichever path you take, you can be assured of jaw-dropping graphics at a level previously unseen.



MAXIMUS VI IMPACT



SSD Secure Erase

Recover lost performance and get back to high speed
SSD performance degrades with time due to overwrite action. ROG is the world's first motherboard brand to integrate SSD Secure Erase into UEFI BIOS for better compatibility and easier use, offering the best removal method to completely delete all data on an SSD to recover lost performance and restore factory speeds.



MAXIMUS VI IMPACT



MAXIMUS VI IMPACT

2nd Generation T-Topology

2nd Generation T-Topology
5%+ full load OC margin and 10%+ with one DIMM
For extreme memory overclocking under full load, ASUS developed the world's first 2nd generation T-Topology. It further optimizes layout to minimize coupling noise and signal reflection, increasing DRAM overclocking. Testing shows around 5% more OC margin under full load, and 10% OC margin growth for one-DIMM configurations.



Dual Intelligent Processor IVs with Four-Way Optimization

One click for better performance, efficiency, digital power control, reduced noise, and improved cooling.



MAXIMUS VI IMPACT



MAXIMUS VI IMPACT

ROG – That Special Extra

Kaspersky® Anti-Virus
The best protection from viruses and spyware Kaspersky® Anti-Virus Personal offers premium antivirus protection for individual users and home offices. It is based on advanced antivirus technologies. The product incorporates the Kaspersky® Anti-Virus engine, which is renowned for malicious program detection rates that are among the industry's highest.



MAXIMUS VI IMPACT

ROG CPU-Z

Whole new design of CPU-Z
ROG CPU-Z is a customized ROG version authorized by CPUID. It has the same functionality and credibility as the original version, with a unique design. Use the whole new look of ROG CPU-Z to truly report your CPU related information and your uniqueness.



MAXIMUS VI IMPACT

DAEMON Tools Pro Standard

The real tool for optical and virtual discs
DAEMON Tools Pro offers essential functionality to backup CD, DVD and Blu-ray discs. It converts optical media into virtual discs and emulates devices to work with the virtual copies. DAEMON Tools Pro organizes data, music, video and photo collections on a PC, notebook or netbook.



MAXIMUS VI IMPACT

Mem TweakIt

Dynamic timing adjustments, DRAM efficiency gauge
When changing DRAM settings in BIOS, it always takes time for the system to reboot. Worry no more! With Mem TweakIt, you can do DRAM tuning in real-time and view your DRAM efficiency score.

CPU and Chipset Features

MAXIMUS VI IMPACT

Intel® LGA 1150 4th Generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Ready

This motherboard supports Intel® 4th generation Core™ i7 / i5 / i3 / Pentium® / Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0 / 2.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i7 / i5 / i3 / Pentium® / Celeron® processors are among the most powerful and energy efficient CPUs in the world.



MAXIMUS VI IMPACT

Intel® Z87 Express Chipset

The Intel® Z87 Express Chipset is a single-chipset design that supports socket LGA1150 4th generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z87 provides a maximum six USB 3.0 ports and six SATA 6Gbps ports for faster data retrieval. Moreover, the Intel® Z87 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

What's in the Box

MAXIMUS VI IMPACT

Model

Brand
ASUS
Model
MAXIMUS VI GENE

Supported CPU

CPU Socket Type
LGA 1150
CPU Type
4th Generation Core i7/Core i5/Core i3/Pentium/Celeron (LGA1150)
Supported CPU Technologies
Turbo Boost Technology 2.0

Chipsets

Chipset
Intel Z87

Memory

Number of Memory Slots
4×240pin
Memory Standard
DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz
Maximum Memory Supported
32GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
2(x16 or dual at x8)
PCI Express x4
1
Mini Card Slots
1 x mini-PCI Express 2.0 x1

Storage Devices

SATA 6Gb/s
6 x SATA 6Gb/s by Intel Z87
2 x SATA 6Gb/s by ASMedia ASM1061
SATA RAID
6 x SATA 6Gb/s by Intel Z87 support RAID 0/1/5/10

Onboard Video

Onboard Video Chipset
Supported only by CPU with integrated graphic

Onboard Audio

Audio Channels
ROG SupremeFX Audio 8-Channel High Definition Audio

Onboard LAN

LAN Chipset
Intel I217-V
Max LAN Speed
10/100/1000Mbps

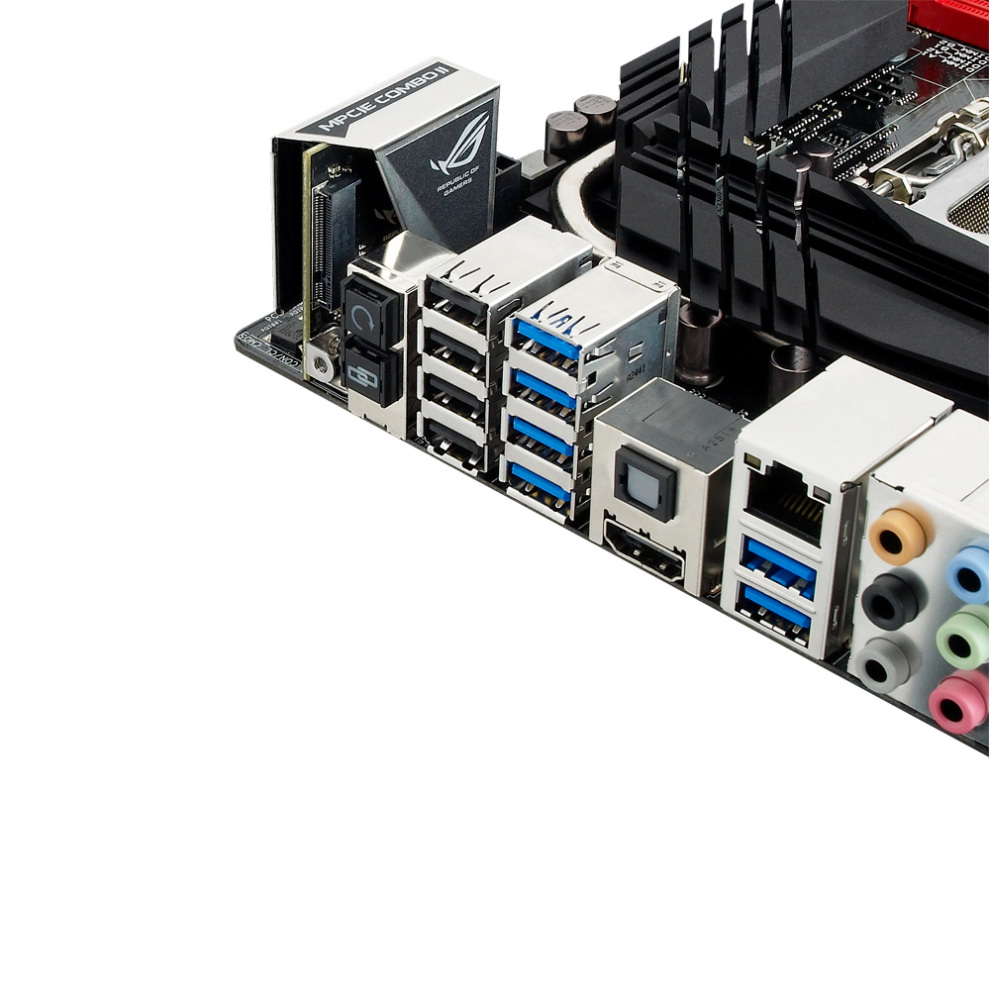

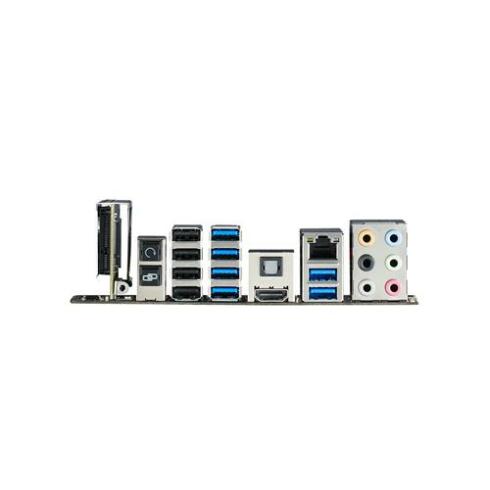

Rear Panel Ports

HDMI
1 x HDMI
USB 3.0
6 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Coaxial
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
1 x USB 3.0 connector supports additional 2 USB 3.0 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
Other Connectors
1 x TPM connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
10 x ProbeIt Measurement Points
1 x LN2 Mode header(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s)

Physical Spec

Form Factor
Micro ATX
Dimensions
9.6" x 9.6"
Power Pin
24 Pin

Features

Features
LGA1150 socket for 4th Generation Intel Core i7/ i5/ i3/ Pentium / Celeron Processors

Intel Z87 Express Chipset

SupremeFX- Supremacy through discrete-caliber audio

Sonic Radar- Scan and detect to dominate

mPCIe Combo II- Extra connections with new gen support

Extreme Engine Digi+ III- Hardcore power delivery with premium components

GameFirst II + Intel LAN- Put Your Frags First

RAMDisk- Double up on speed with RAM

Packaging

Package Contents
MAXIMUS VI GENE motherboard
User's manual
Support DVD
I/O Shield
1 x mPCIe Combo II expansion card
3 x 2-in-1 SATA 6Gb/s cables
1 x SLI bridge
1 x 2-in-1 Q-Connector Kit
1 x 12 in 1 ROG Cable Label
1 x ROG Door Hanger


مادربرد

سازنده

ASUS

چیپست

Z87

سوکت پردازنده

LGA1150

پشتیبانی از SLI

دارد

پشتیبانی از CrossFire

دارد

اسلات M.2

ندارد

پورت SATA III

8 عدد

درگاه USB 2.0

8 عدد

درگاه USB 3.0 (USB 3.2 GEN 1 )

8 عدد

پورت شبکه

دارد

اتصال Wi-Fi

ندارد

بلوتوث

ندارد
