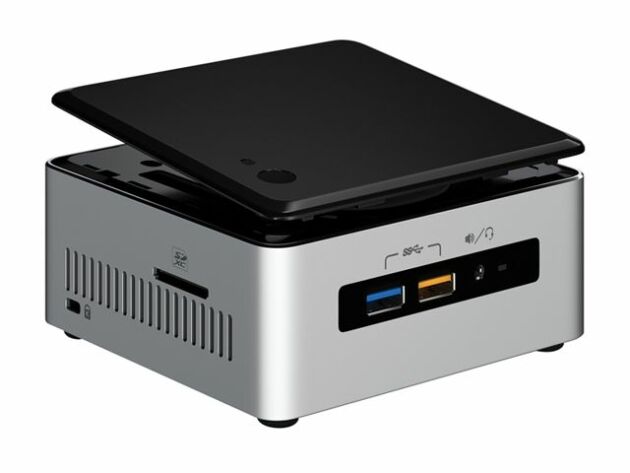

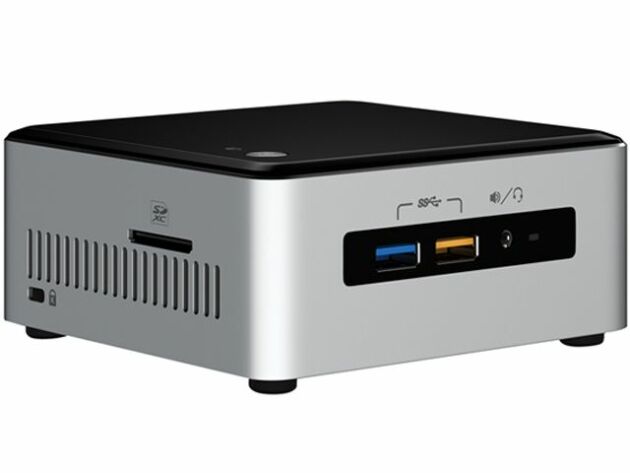

کامپیوتر کوچک Intel® NUC Kit NUC6i3SYH

General

Brand

Intel

Series

NUC (Next Unit of Computing)

Model

BOXNUC6I3SYK

Color

Silver with Black Top and Diamond Cut around the Top

CPU Supported

CPU Type

Intel 6th Generation Core i3-6100U (2.3 GHz Dual Core, 3 MB Cache, 15W TDP)

Memory Supported

Memory installed

No Memory

Memory slot

2 x 260Pin SO-DIMM

Memory Type Supported

DDR4 2133/ 1866

Max Memory Supported

32GB

Dual Channel Memory Supported

Yes

Expansion Slots

Other

Internal support for M.2 SSD card (22x42 or 22x80)
SDXC slot with UHS-I support on the side

Storage

Hard Drive Installed

No Hard Drive

Graphics

Onboard Video

Intel HD Graphics 520
1 x full-size HDMI 1.4b
1 x mini DisplayPort 1.2

Audio

Channel

7.1 Channel

Communications

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Intel Wireless-AC 8260 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Intel Wireless Display 6.0)

Bluetooth

Bluetooth 4.1

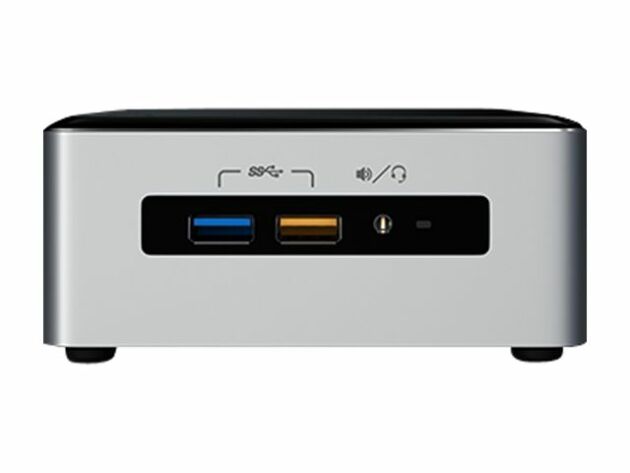

Front Panel Ports

Front USB

2 x USB 3.0
2 x Internal USB 2.0 via header

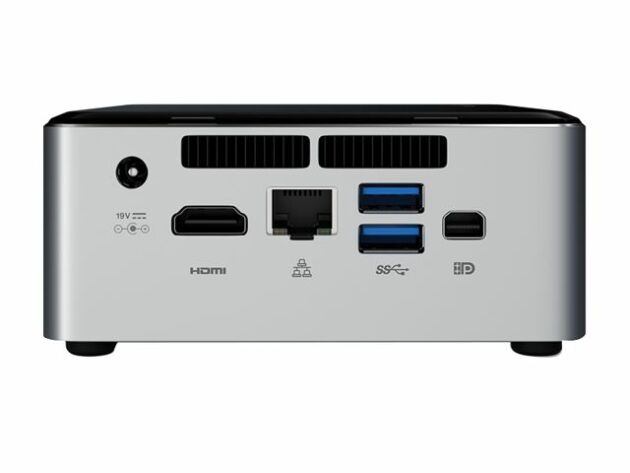

Back Panel Ports

Rear USB

2 x USB 3.0

Power Supply

Power Supply

Power Adapter:
19V, 65W wall-mount AC-DC power adapter
Multi-country plugs

Physical SPEC

Dimensions

1.26" x 4.53" x 4.37"

Weight

2.15

Material

Aluminum and Plastic

Features

Features

Support for user-replaceable 3rdparty lids

NFC and AUX_PWR headers

OS certs: Windows 10, 8 & 8.1 Logo'd

OS compatibility: Ubuntu, Linux Mint, Fedora, OpenSUSE

VESA mount bracket and mounting hole support

Low-acoustics active cooling design

Kensington lock with base security

Integration Guide

12-19V DC Power Input
