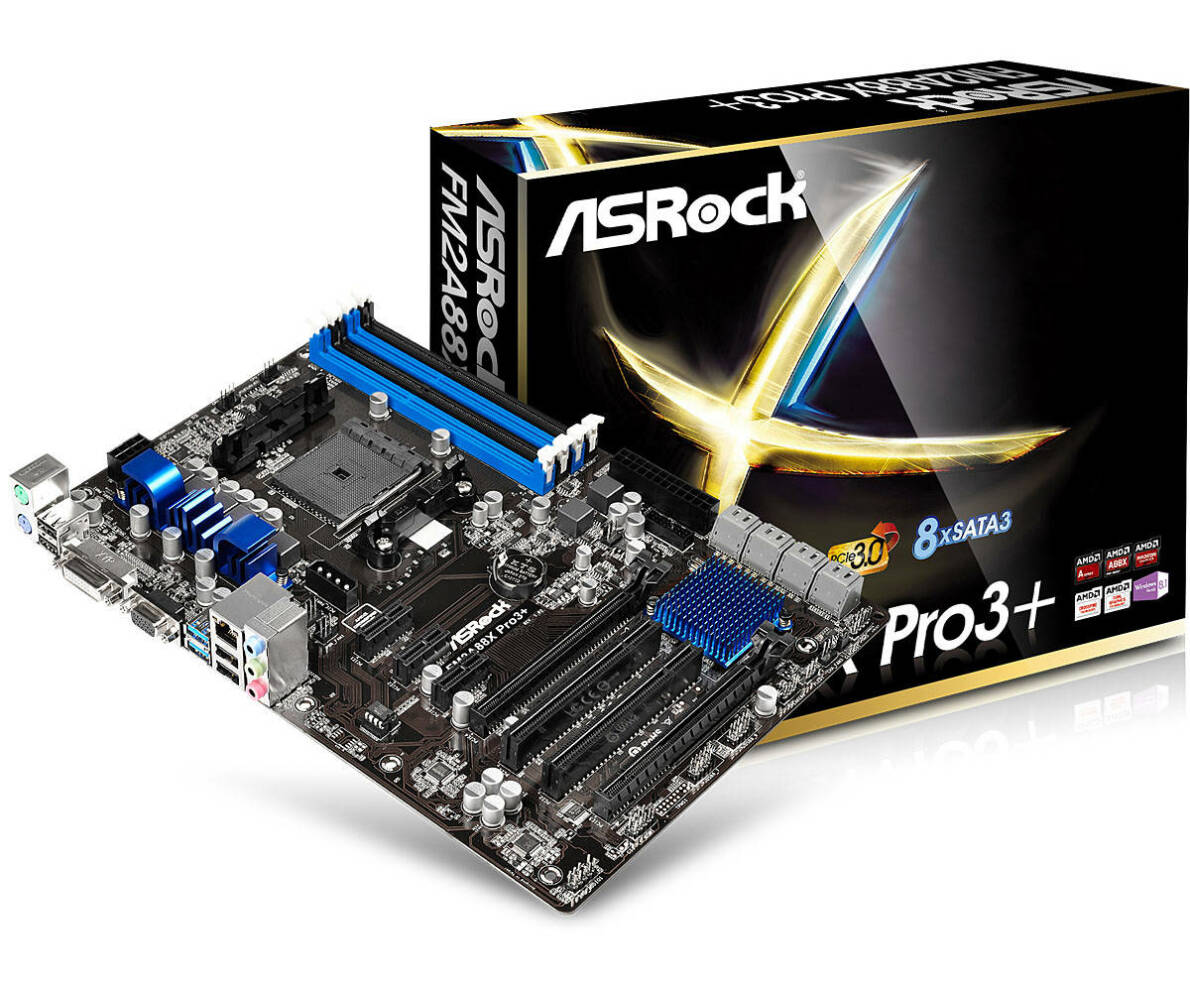

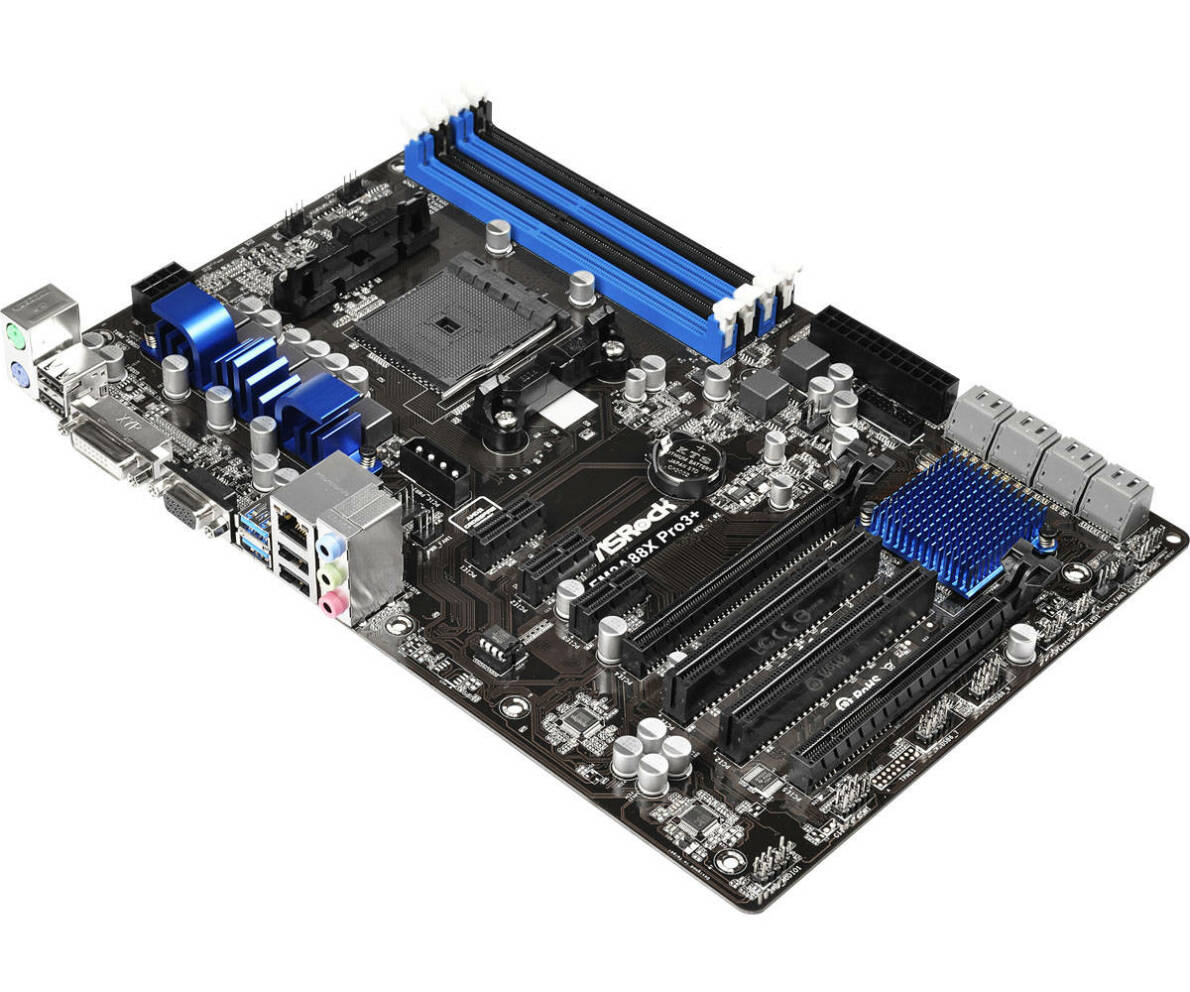

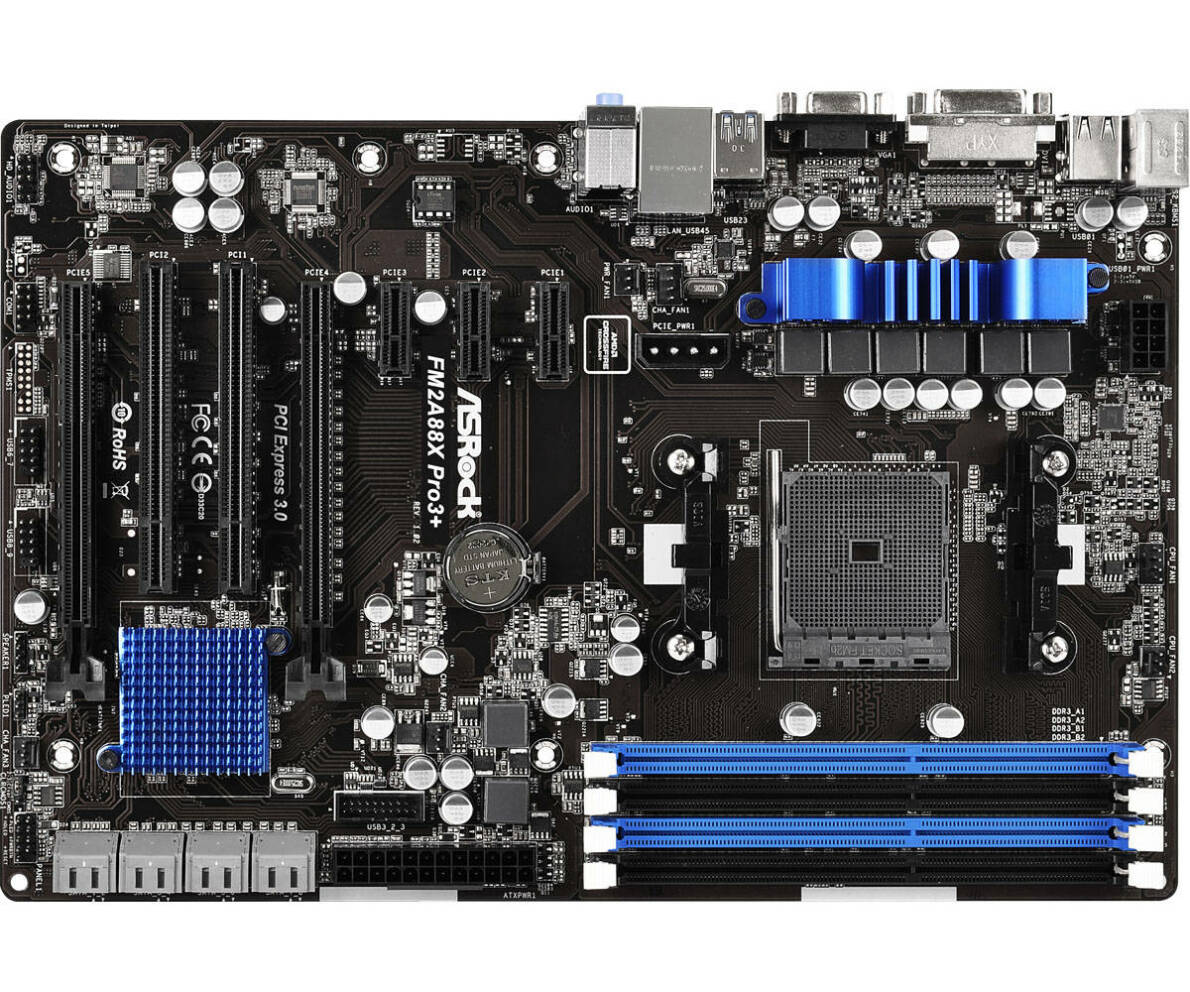

مادربرد ازراک FM2A88X Pro3+

ASRock FM2A88X Pro3+ FM2+ A88X Mainboard
گارانتی (الماس ایران - 3 سال)
کد کالا: Lion-Product-9020

ناموجود
  1. Support for Socket FM2+ 95W / FM2 100W processors

  2. All Solid Capacitor Design

  3. Supports Dual Channel DDR3 2400+(OC)

  4. 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1, 2 x PCI

  5. Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

  6. Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU

  7. Graphics Output Options : D-Sub, DVI-D

  8. 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

  9. 8 x SATA3, 4 x USB 3.0 (2 Front, 2 Rear), 8 x USB 2.0, 1 x COM Port Header

  10. Supports ASRock Cloud, APP Shop, Full Spike Protection




Unique Feature

ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop
CPU - Supports Socket FM2+ 95W / FM2 100W processors
- 4 + 2 Power Phase design
Chipset - AMD A88X (Bolton-D4)
Memory

- Dual Channel DDR3 Memory Technology
- 4 x DDR3 DIMM Slots
- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile Technology (AMP) up to AMP 2400

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- DRAM, CPU Voltage multi-adjustment
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
- Max. shared memory 2GB
- Dual graphics output: support DVI-D and D-Sub by independent display controllers
- Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
 Expansion / Connectivity
Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE4 @ x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
- 3 x PCI Express 2.0 x1 Slots
- 2 x PCI Slots
- Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics

*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug
Connector - 1 x COM Port Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x PCIe Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

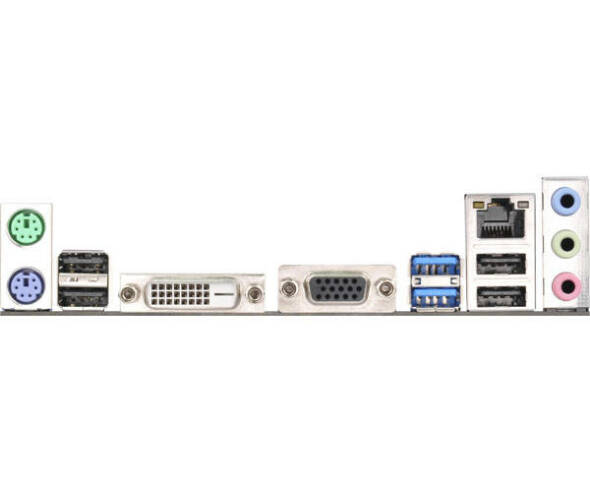

Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Software and BIOS Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock X-Boost
UEFI
- ASRock Interactive UEFI
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
OS

- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)


مادربرد

سازنده

Asrock

چیپست

A88X

سوکت پردازنده

FM2+

پشتیبانی از SLI

ندارد

پشتیبانی از CrossFire

دارد

اسلات M.2

ندارد

درگاه USB 2.0

4 عدد

درگاه USB 3.0 (USB 3.2 GEN 1 )

2 عدد

پورت شبکه

دارد

اتصال Wi-Fi

ندارد

بلوتوث

ندارد

مادربرد ازراک FM2A88X Pro3+
