رم کینگ استون DDR4 2400Mhz ECC

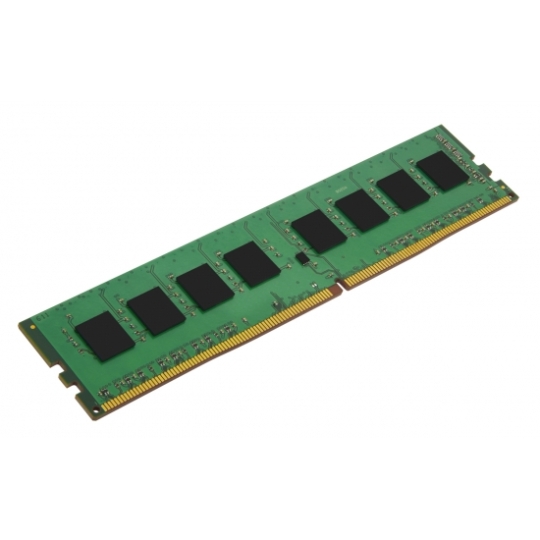

ValueRAM's KVR24E17S8/8 is a 1G x 72-bit (8GB) DDR4-2400

CL17 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory

module, based on nine 1G x 8-bit FBGA components. The SPD

is programmed to JEDEC standard latency DDR4-2400 timing of

17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

The electrical and mechanical specifications are as follows:

• Power Supply: VDD=1.2V Typical

• VDDQ = 1.2V Typical

• VPP - 2.5V Typical

• VDDSPD=2.2V to 3.6V

• Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Single-rank

• On-board I2 serial presence-detect (SPD) EEPROM

• Temperature sensor with integrated SPD

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)

• Fly-by topology

• Terminated control command and address bus

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free
