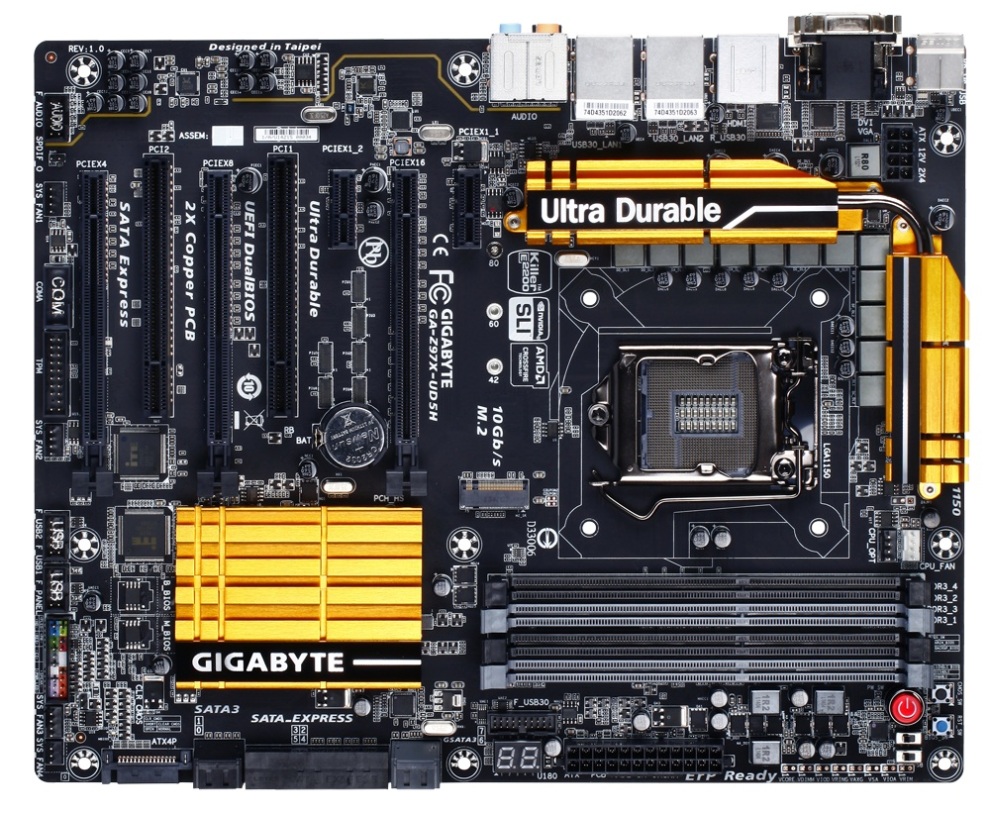

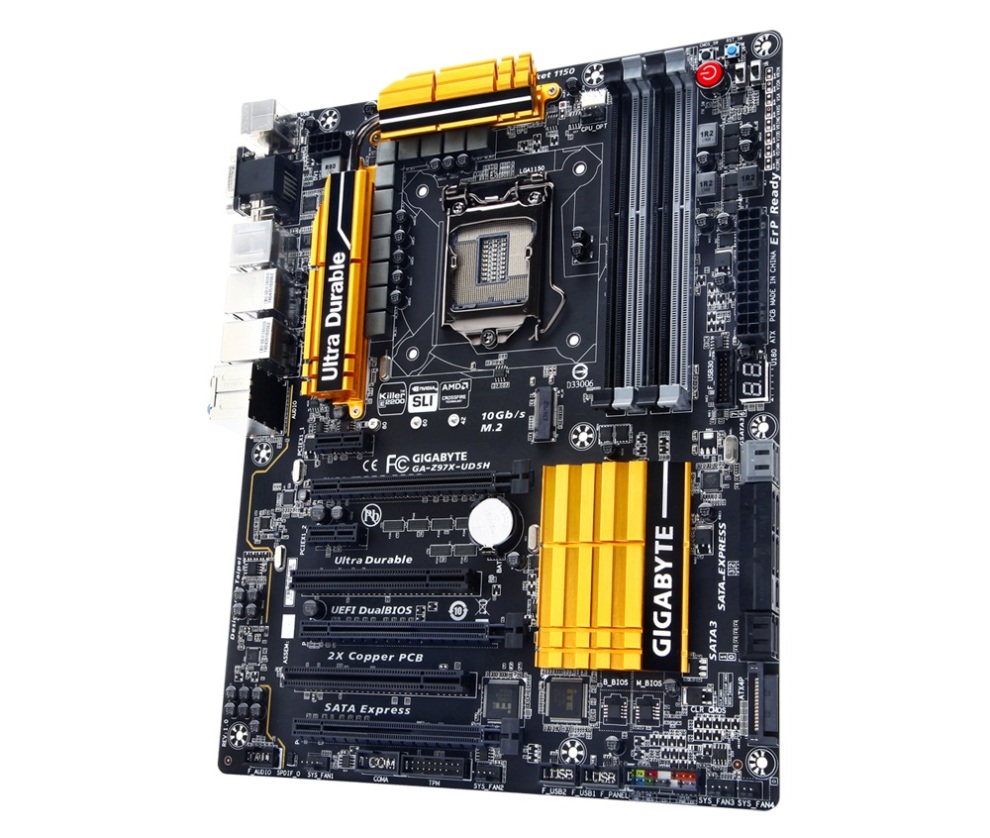

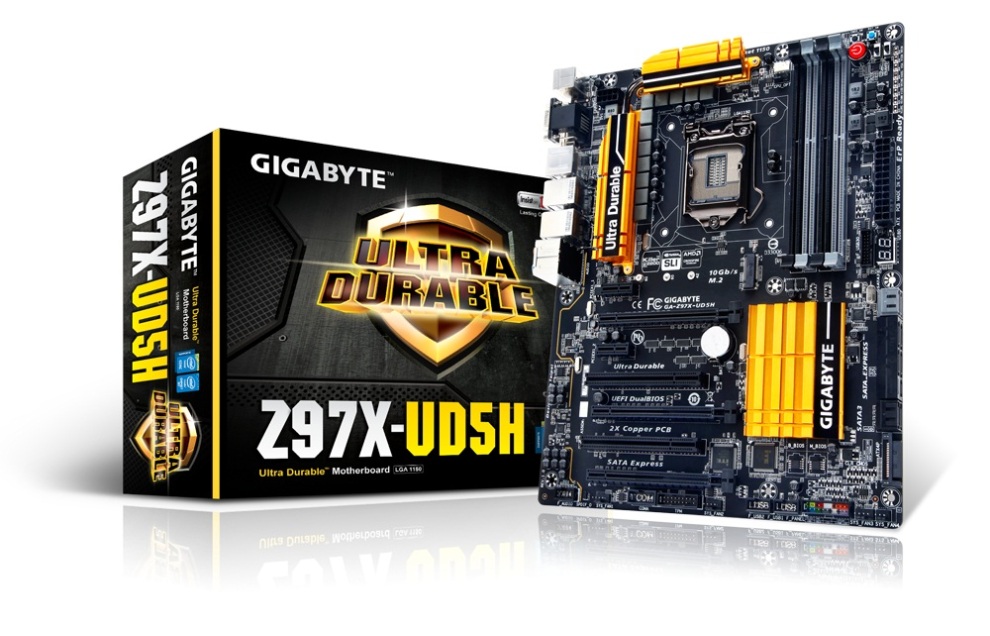

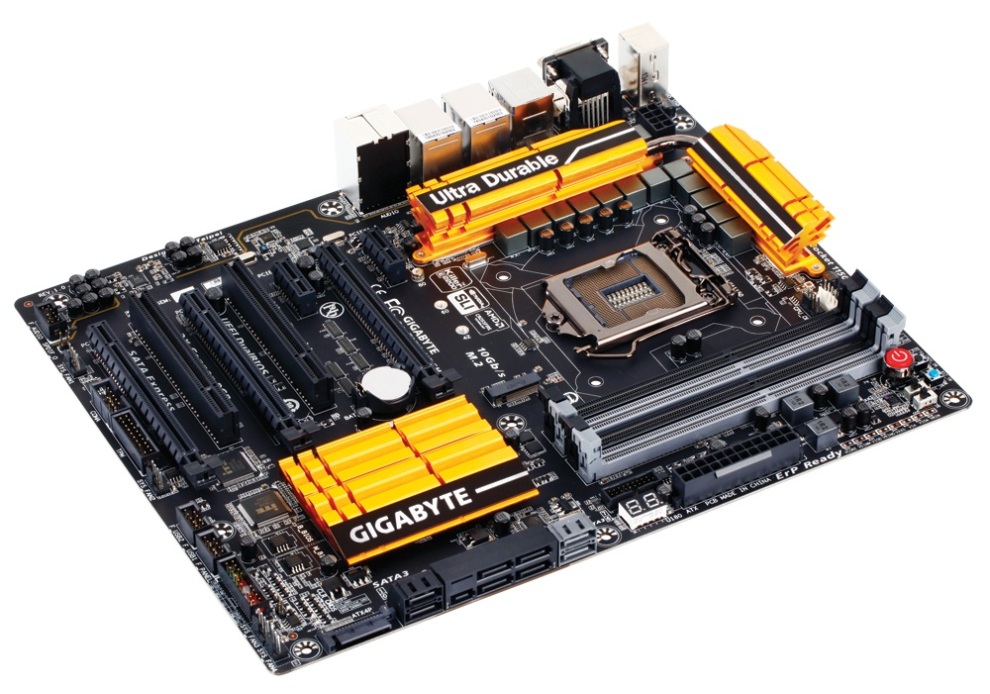

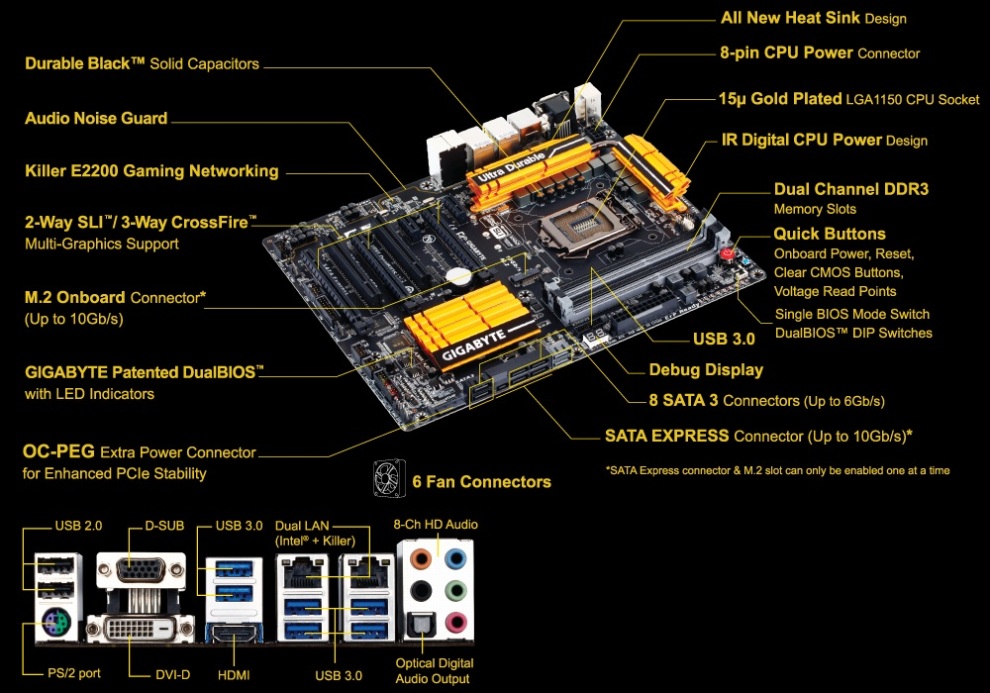

مادربرد گیگابایت Z97X-UD5H

Model

Brand

GIGABYTE

Model

GA-Z97X-UD5H

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset

Intel Z97

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333

Expansion Slots

PCI Express x16

1

PCI Express x8

1

PCI Express x4

1

PCI Express x1

2

PCI Slots

2

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

Onboard Audio

Audio Chipset

Realtek ALC1150

Onboard LAN

LAN Chipset

Intel i217V

Second LAN Chipset

E2201

Max LAN Speed

Dual 10/100/1000Mbps

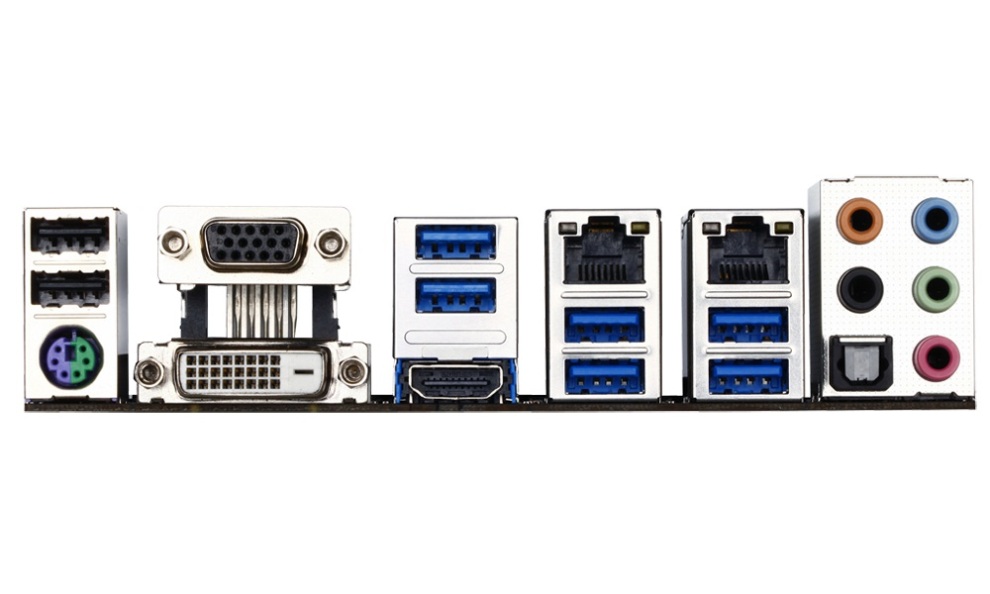

Rear Panel Ports

Video Ports

1 x DVI
1 x VGA

HDMI

1 x HDMI

USB 3.0

6 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Physical Spec

Form Factor

ATX

Dimensions

12.0" x 9.6"
