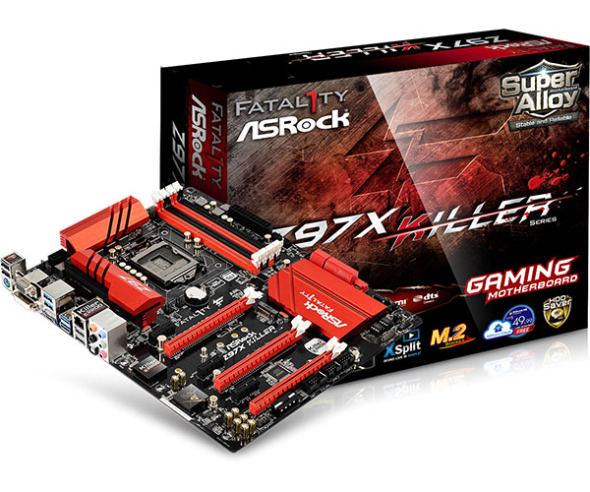

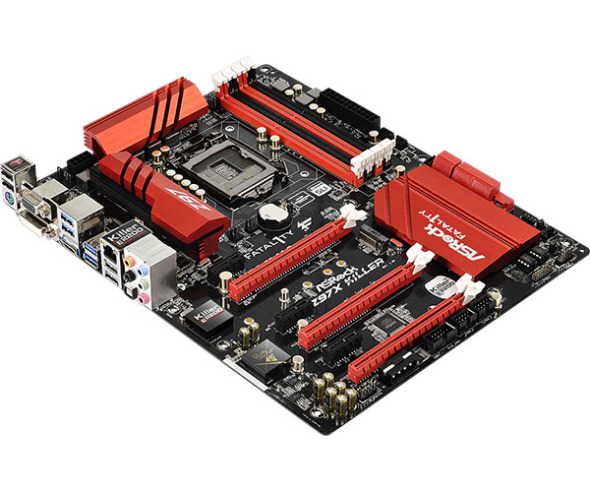

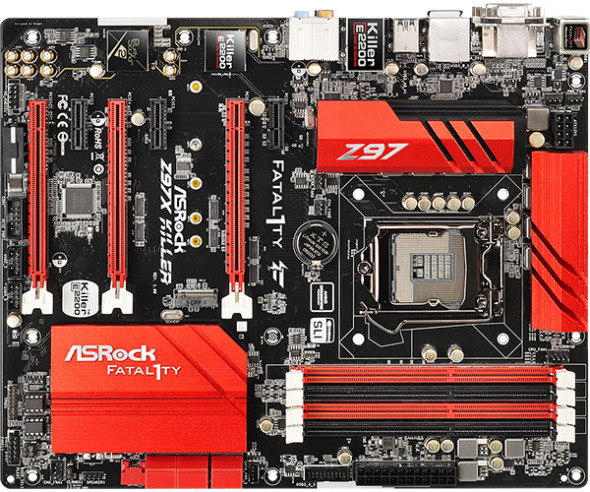

مادربرد ازراک FATAL1TY Z97X Killer
گارانتی (سازگار)
- ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB - Gaming Armor
» CPU Power - Hi-Density Power Connector
» Memory - 15μ Gold Contact in DIMM Slots
» VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE2), PCIe Power Connector
» Internet - Qualcomm® Atheros® Killer™ LAN
» Audio - Purity Sound™ 2 - Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- Digi Power, 8 Power Phase design
- Supports Dual Channel DDR3 3200+(OC)
- 3 PCIe 3.0 x16, 3 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™ and NVIDIA® Quad SLI™
- Graphics Output Options: D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
- 1 SATA Express, 6 SATA3, 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm, 42mm, 60mm, 80mm, 110mm M.2 devices), 8 USB 3.0 (2 Front, 6 Rear), 6 USB 2.0 (4 Front, 1 Rear, 1 Fatal1ty Mouse Port)
- 1 COM Port Header
- Supports ASRock HDD Saver Technology, Full Spike Protection, ASRock Cloud, APP Shop, F-Stream, Key Master, Full HD UEFI
Product Specifications
| General | |
| Gaming Armor | CPU Power - Hi-Density Power Connector - Dual-Stack MOSFET (DSM) Memory - NexFET™ MOSFET - 15μ Gold Contact in DIMM Slots VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE2) - PCIe Power Connector Internet - Qualcomm® Atheros® Killer™ LAN Cooling - XXL Aluminum Alloy Heatsink Audio - Purity Sound™ 2 |
| Unique Feature | ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - NexFET™ MOSFET - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
| CPU | - Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking |
| Chipset | - Intel® Z97 |
| Memory | - Dual Channel DDR3 Memory Technology *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600 *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. ***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound™ 2 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Direct Drive Technology - EMI shielding cover - PCB isolate shielding - Supports DTS Connect |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Qualcomm® Atheros® Killer™ E2200 Series - Supports Qualcomm® Atheros® Security Wake On Internet Technology - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE6) - 3 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA® Quad SLI™ and SLI™ |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology *Support to be announced. |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x HDD Saver Connector - 1 x PCIe Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |

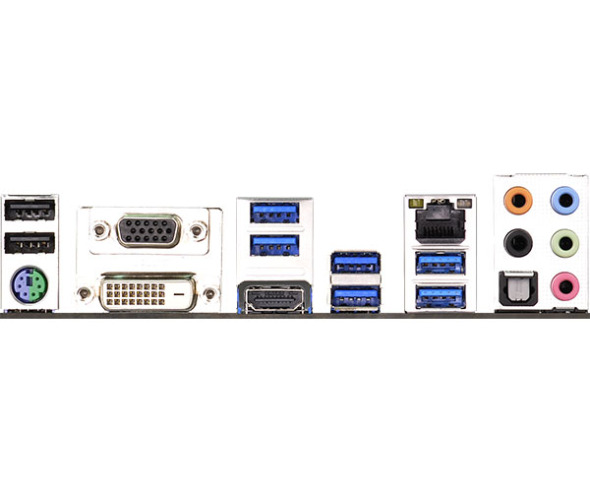

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (Intel® Z97) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and UEFI | Software - ASRock F-Stream - ASRock Disk Health Report - ASRock USB Key - ASRock Key Master - ASRock APP Charger - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager |
| Accessories | - 1 x ASRock SLI_Bridge_2S Card - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x HDD Saver Cable - 1 x Screw for M.2_SSD (NGFF) Socket 3 |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages |
| Form Factor | - ATX Form Factor - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
