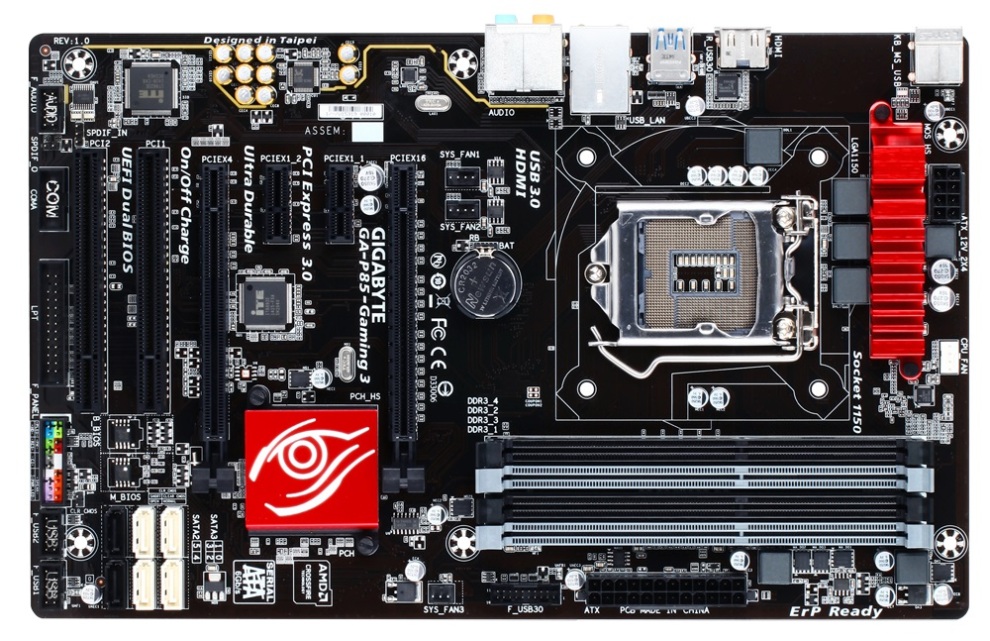

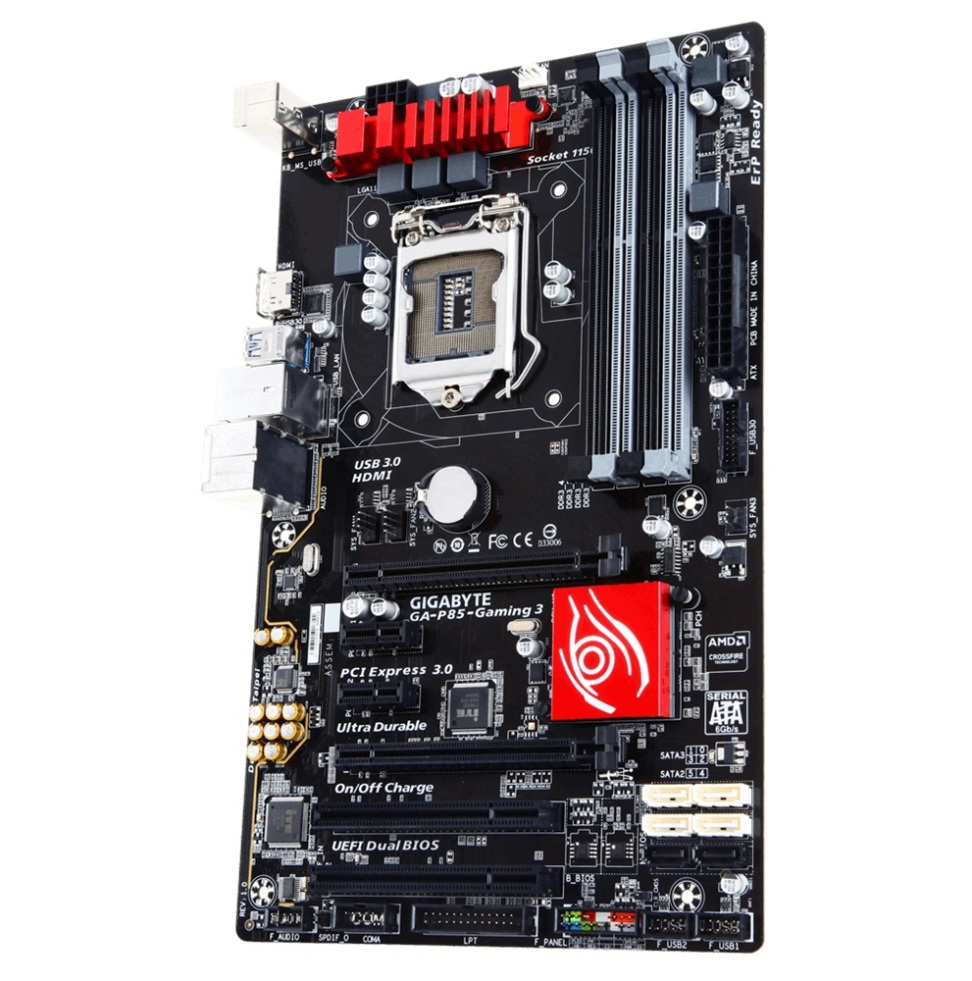

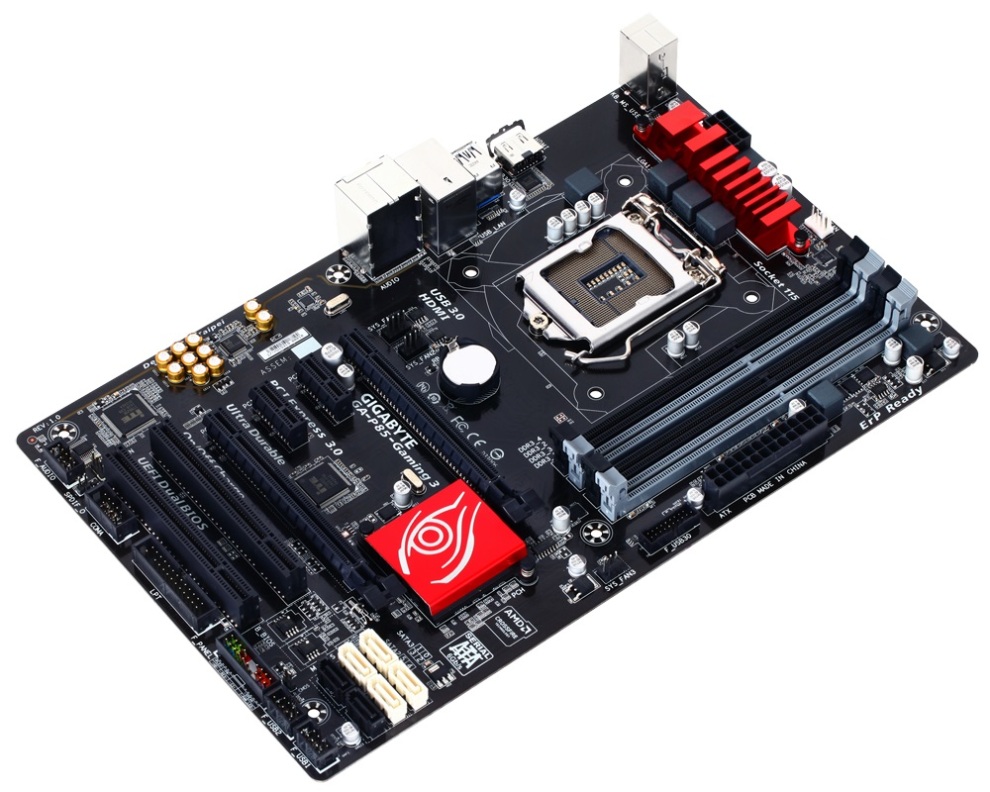

مادربرد گیگابایت P85-Gaming 3

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel^® B85 Express Chipset

1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor - Intel^® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160
   * Support for HDMI 1.4a version.
2. Maximum shared memory of 1 GB

1. Realtek^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out

1. Realtek^® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
   (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots

1. Support for 2-Way AMD CrossFire™ technology

Chipset:

1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)

Chipset:

1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 3 x system fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.0/2.0 header
11. 2 x USB 2.0/1.1 headers
12. 1 x serial port header
13. 1 x parallel port header
14. 1 x Clear CMOS jumper

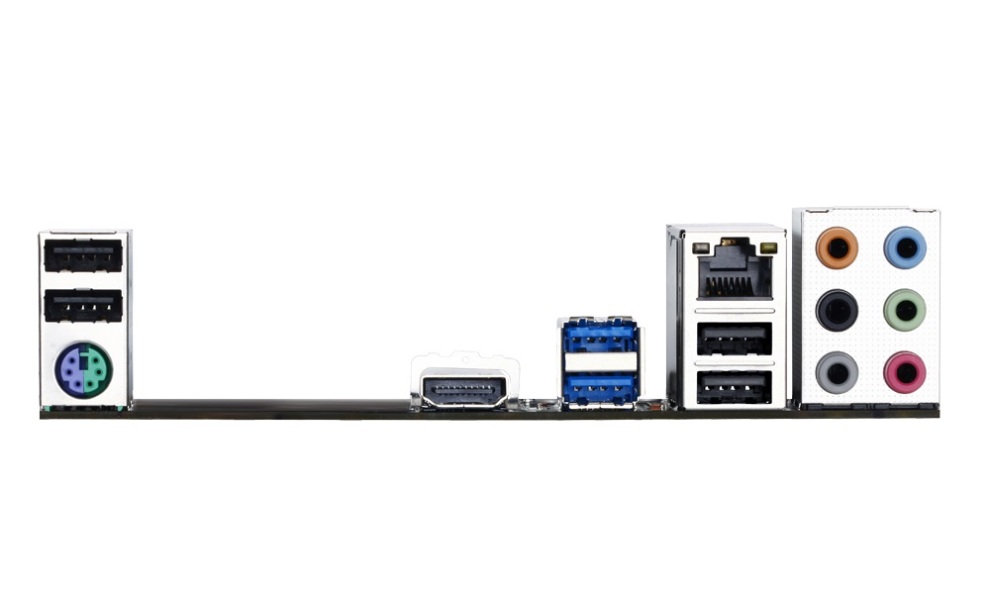

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 2 x USB 3.0/2.0 ports
4. 4 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

1. iTE^® I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   USB Blocker
   Fast Boot
   Smart TimeLock
   Smart Recovery 2
4. Support for ON/OFF Charge

1. Norton^® Internet Security (OEM version)
2. Intel^® Rapid Start Technology
3. cFosSpeed

1. Support for Windows 8.1/8/7

1. ATX Form Factor; 30.5cm x 19cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
