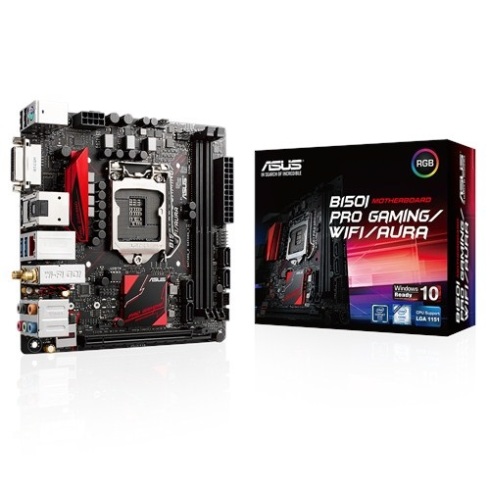

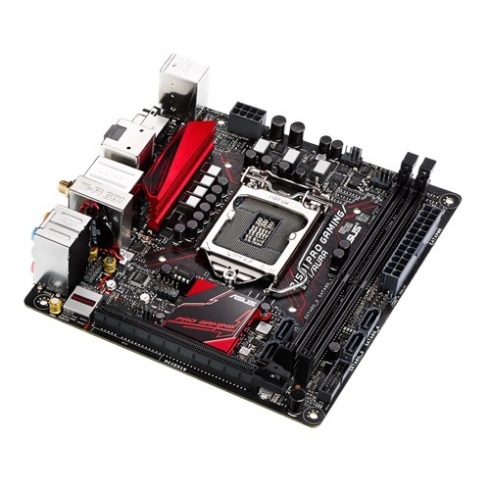

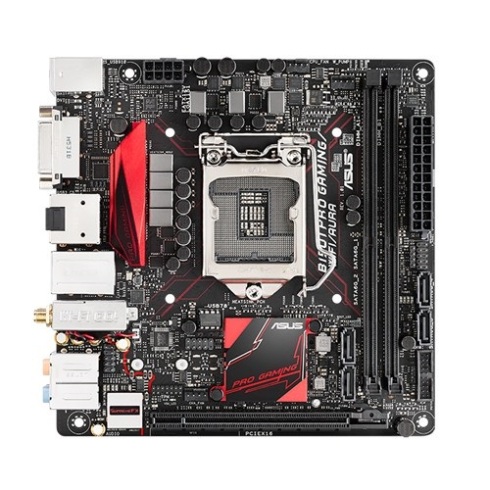

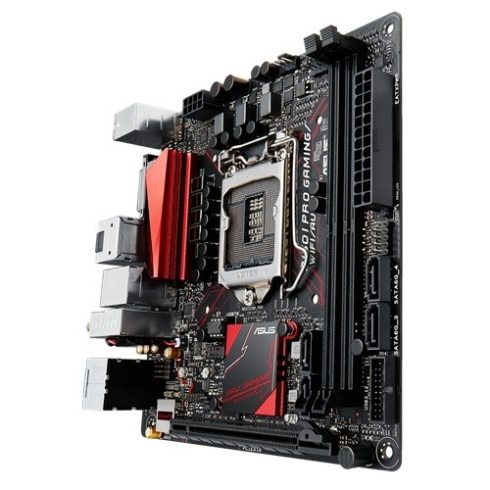

مادربرد ایسوس B150I PRO GAMING/WIFI/AURA

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel B150

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI, DVI-D ports
Supports HDMI 1.4b with max. resolution 4096 x [email protected]
Supports DVI-D with max. resolution 1920 x [email protected]
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Maximum shared memory of 1024MB

Memory

Number of Memory Slots

2×288pin

Memory Standard

DDR4 2133

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16 slot (at x16 mode)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 Socket 3 with M key, type 2242*/2260/2280 storage devices support (both SATA & PCIE x4 mode)

* Support with M.2 2242 mounting kit.

Onboard Audio

Audio Chipset

SupremeFX 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112dB SNR stereo playback output
Audio Features:
- SupremeFX Shielding Technology
- Headphone AMP
- Optical S/PDIF out port at back panel
- Sonic Radar II

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel Gigabit LAN
Anti-surge LANGuard
GameFirst technology

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO support

Bluetooth

Bluetooth v4.1

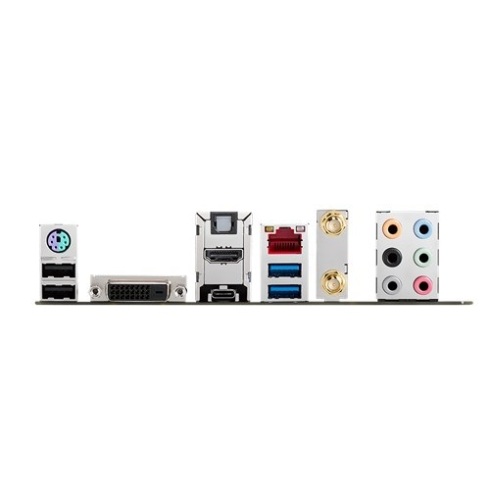

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

1 x USB 3.0 Type C port
2 x USB 3.0/2.0 ports

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

8-channel audio I/O ports

Antenna Connectors

2 x Wi-Fi antenna ports

Internal I/O Connectors

Onboard USB

1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 port
1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports

Other Connectors

1 x System panel connector
1 x Front panel audio connector (AAFP)
1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support
1 x Water pump connector (4-pin)
1 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Speaker header
1 x TPM header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x Clear CMOS jumper (2-pin)

Physical Spec

Form Factor

Mini ITX

Dimensions (W x L)

6.7" x 6.7"

Power Pin

24 Pin

Features

Features

ASUS Gaming Features:
Gamer's Guardian
- DIGI+ VRM
- DRAM Overcurrent Protection
- ESD Guards on DVI, LAN, Audio, KBMS and USB 3.0/2.0 ports
- Highly Durable Components
- Stainless Steel Back I/O
- Q-Design (Q-Shield, Q-DIMM, Q-LED, Q-Connector (cable))
Performance Level Up
- DIGI+ VRM
- AI Suite 3
- Fan Xpert 2+ featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- UEFI BIOS EZ Mode (CrashFree BIOS 3, EZ Flash 3)
- RAMCache: Speed your game loads
Aura: RGB lighting control
ASUS Exclusive Features
- ASUS CPU-Z
- USB 3.0 Boost featuring speedy USB 3.0 transmission
- AI Charger
- Disk Unlocker
- Push Notice
- HyStream
- Media Streamer

BIOS features:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support DVD:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System Support:
Windows 10*
Windows 8.1*
Windows 7
* 64-bit supported only

Packaging

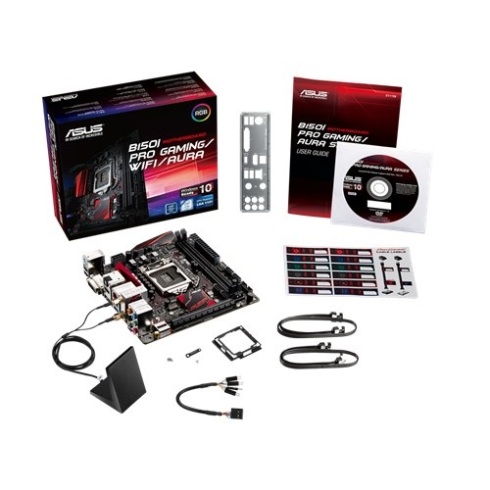

Package Contents

Accessories:
2 x Serial ATA 6.0Gb/s cables
1 x M.2 2242 mounting kit
1 x Wi-Fi 2T2R Antenna
1 x User Manual
1 x I/O Shield
1 x M.2 Screw package
1 x CPU Installation Tool
1 x PRO GAMING cable labels
1 x pack of cable tie
1 x Support DVD
