رم کینگ استون DDR4 2400Mhz ECC

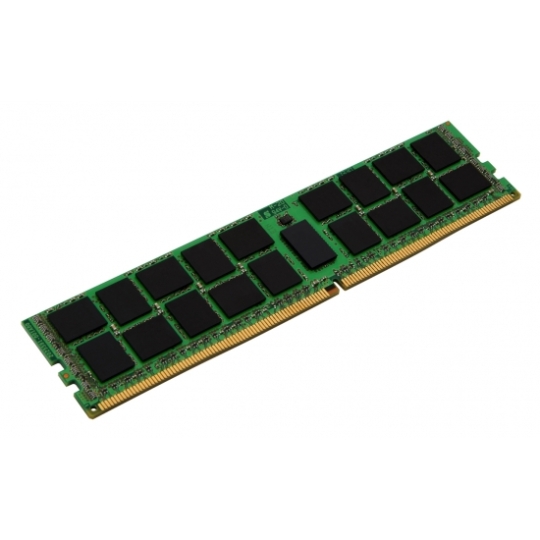

ValueRAM's KVR24R17D4/32 is a 4G x 72-bit (32GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx4, ECC, memory module, based on thirty six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD=1.2V (1.14V to 1.26V)

• VDDQ = 1.2V (1.14V to 1.26V) • VPP - 2.5V (2.375V to 2.75V)

• VDDSPD=2.25V to 2.75V

• Functionality and operations comply with the DDR4 SDRAM datasheet

• 16 internal banks

• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available

• Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Supports ECC error correction and detection

• On-Die Termination (ODT)

• Temperature sensor with integrated SPD

• This product is in compliance with the RoHS directive.

• Per DRAM Addressability is supported

• Internal Vref DQ level generation is available

• Write CRC is supported at all speed grades

• CA parity (Command/Address Parity) mode is supported
