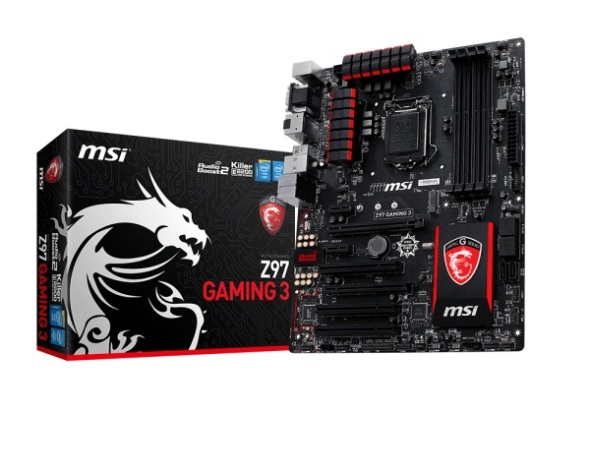

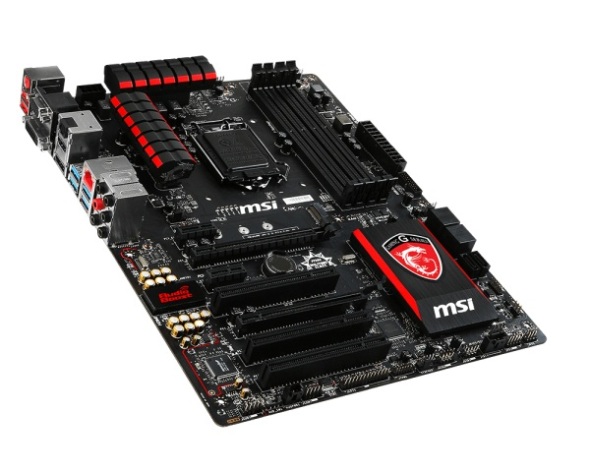

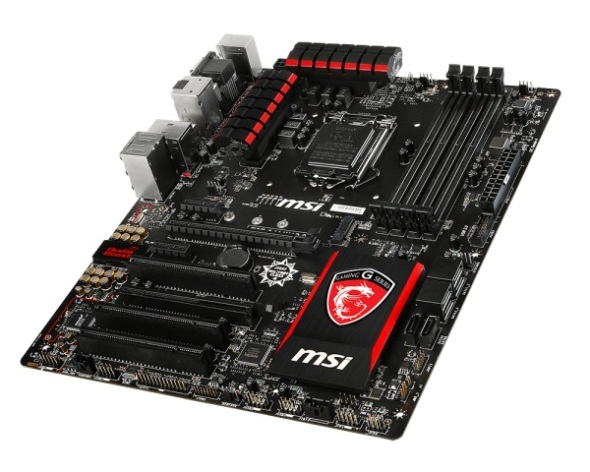

مادربرد ام اس آی Z97 Gaming 3

Model

Brand

MSI

Model

Z97-Gaming 3

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset

Intel Z97

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 3300(OC)/3200(OC)/3100(OC)/3000(OC)/2800(OC)/2666(OC)/2600(OC)/2400(Oc)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1600/1333/1066

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1

PCI Express 2.0 x16

1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 speed)

PCI Express x1

2

PCI Slots

3

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Qualcomm Killer E2205

Max LAN Speed

10/100/1000Mbps

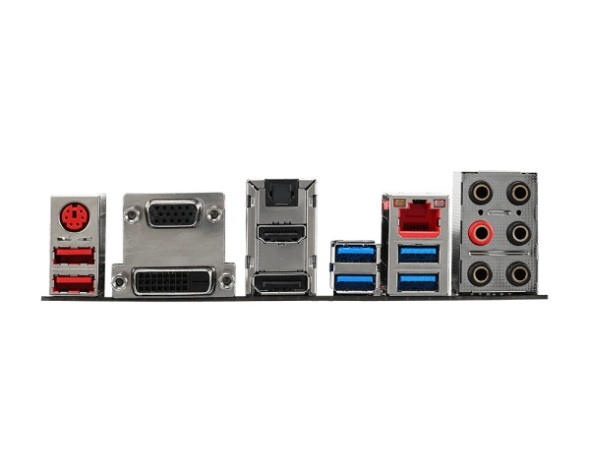

Rear Panel Ports

Video Ports

1 x DVI
1 x D-SUB

HDMI

1 x HDMI

DisplayPort

1 x DisplayPort

USB 3.0

4 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

6 Ports

Internal I/O Connectors

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)

Other Connectors

1 x 24pin ATX main power connector
1 x 8pin ATX 12V power connector
2 x 4pin CPU fan connectors
3 x 4pin system fan connectors
1 x Clear CMOS jumper
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Direct audio power connector
1 x Audio power switch

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12" x 9.6"

Power Pin

24 Pin

Features

Features

Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket

Supports DDR3-3300(OC) Memory

M.2 + USB 3.0 + SATA 6Gb/s

Audio Boost 2: Reward Your Ears with True Quality

Killer Ethernet: Kill Your Lag

USB Audio Power: Surve Stable 5V Power & Better Signal Transmission over USB

XSplit Gamecaster: Show off Your Skills and Achievements

Guard-Pro: Improved Protection and Power Efficiency

OC Genie 4: Overclock in 1 Second

Gaming App: Boost Your Frame Rate

Click BIOS 4: Easily Fine-tune Your System

Multi-GPU: AMD CrossFire Support

Sound Blaster Cinema 2: Realistic Surround Sound Experience

Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices
