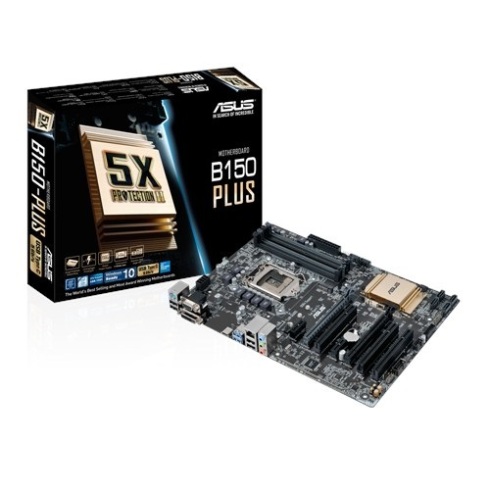

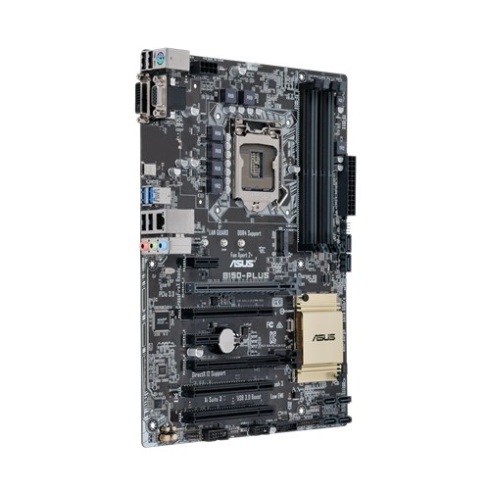

مادربرد ایسوس B150-PLUS

ASUS B150-PLUS LGA1151 B150 Mainboard
گارانتی (گارانتی اصلی ( تابا , لایفبرد , سازگار , ویستا ))
کد کالا: Lion-Product-8836

ناموجود

Supreme B150 ATX motherboard with 5X Protection II for dependable stability, DDR4 support and reversible USB Type-C connectivity.

  • 5X Protection II – Advanced hardware safeguards for all-round protection
  • DDR4 memory compatibility
  • Lightning-fast M.2 support
  • USB Type-C for convenient connectivity
  • Epic gaming audio with LED-illuminated shielding
  • Media-acclaimed UEFI BIOS with EZ Flash 3

  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B150
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *1
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
    * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : DVI-D/RGB ports
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
  • Multi-GPU Support
    Supports AMD Quad-GPU CrossFireX™ Technology
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    1 x PCIe 3.0/2.0 x16 (x4 mode)
    2 x PCIe 3.0/2.0 x1
    3 x PCI
  • Storage
    Intel® B150 chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    6 x SATA 6Gb/s port(s), gray,
  • LAN
    Realtek®, 1 x Gigabit LAN Controller(s)
    ASUS LAN Guard
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *2
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports
    Intel® B150 chipset :
    1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
    Intel® B150 chipset :
    4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
    Intel® B150 chipset :
    6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
  • Special Features
    ASUS 5X Protection II :
    - ASUS LANGuard - 2.5X higher surge tolerance
    - ASUS Overvoltage Protection - World-class circuit-protecting power design
    - ASUS DIGI+ VRM - 6 Phase digital power design
    - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
    - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - Low EMI Solution
    - ESD Guards
    - USB 3.0 Boost
    - Mobo Connect
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS EZ Flash 3
    - ASUS MyLogo 2
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Operating System Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit *3

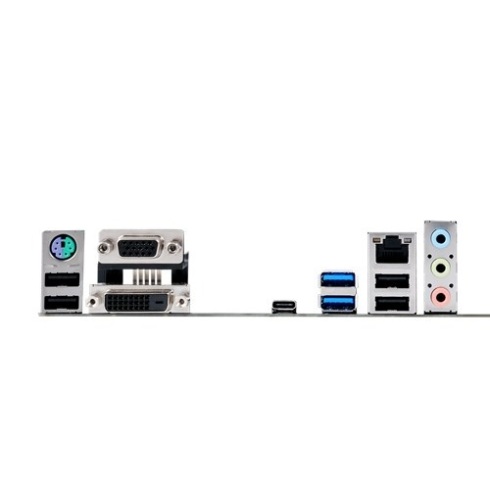

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x LAN (RJ45) port(s)
    1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
    2 x USB 3.0 (blue)
    4 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
  • Note
    *1: Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
    *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
    *3: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.


مادربرد

سازنده

ASUS

چیپست

B150

سوکت پردازنده

LGA1151

پشتیبانی از SLI

ندارد

پشتیبانی از CrossFire

دارد

اسلات M.2

دارد

پورت SATA III

6 عدد

درگاه USB 2.0

6 عدد

درگاه USB 3.0 (USB 3.2 GEN 1 )

5 عدد

پورت شبکه

دارد

اتصال Wi-Fi

ندارد

بلوتوث

ندارد

مادربرد ایسوس B150-PLUS
