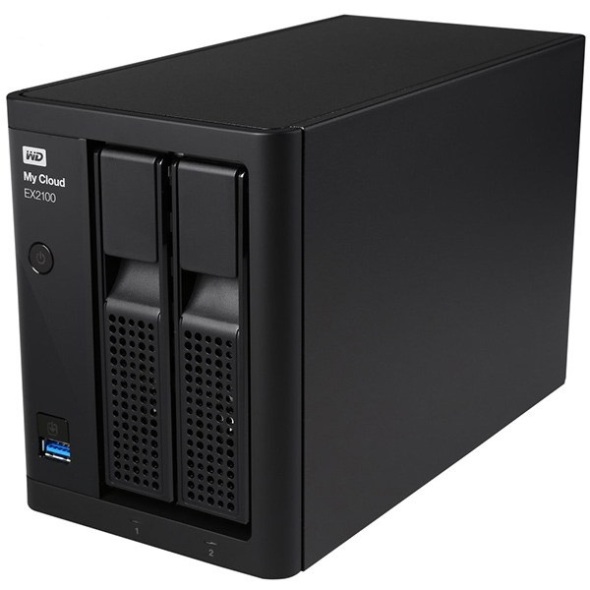

هارد تحت شبکه وسترن دیجیتال My Cloud EX2100 12TB

My Cloud EX2100  ذخیره ساز تحت شبکه است که  فایل های شخصی را میتوان درون آن با اطمینان خاطر نگهداری کرد

دارای 2 عدد پورت LAN با سرعت گیگابایتی برای ذخیره بهتر اطلاعات درون شبکه ای بدون از دست دادن دیتا

قابلیت ریموت کردن از راه دور

دارای 2 عدد پورت USB3

Interface

• Gigabit Ethernet x 2
• Power supply (DC in) x 1
• USB 3.0 expansion port x 1 rear
• USB 3.0 port with direct copy x 1 front

CPU

• Marvell® ARMADA® 385 1.3 GHz dual-core

Memory

• 1 GB DDR3

Drive bays

• 2 x 3.5 inch hard drive bays, hot swap capable, tray-less design

Internal hard drives

• WD Red NAS hard drives

External Ports

• 2 USB 3.0 ports ( 1 x back side; 1 x front side with direct copy button)

System Requirements

• Windows 8.1, Windows 7, or Windows Vista, operating system
• Mac OS X Yosemite, Mavericks, Mountain Lion, or Lion operating systems
• DLNA/UPnP devices for streaming
• Router with Internet connection

Supported Web Browsers

• Internet Explorer 10 or higher
• Safari 6 or higher
• Firefox 30 or higher
• Google Chrome 31 or higher on supported Windows and Mac OS platforms

Network Protocols

• DHCP Client or Static IP
• NTP Client
• Dynamic DNS (DDNS)
• Apple Bonjour and Windows Rally
• Jumbo frame support up to 9K
• VLAN (802.1Q)
• Link Aggregation and failover for 2 Gigabit Ethernet ports
• UPnP port forwarding
• LLTD Link Layer Topology Discovery Protocol
• iSCSI
• SSH

Network File Services

• OS Supports
  • Windows XP Home/ Pro/ 64-bit SP3+
  • Windows Vista/ 7/ 8 (All versions)
  • Mac OS X 10.6, Lion, Mountain Lion
• CIFS/SMB for Windows, Mac OS X and Linux
• Linux Distributed File System (DFS)
• AFP for Mac OS X
• FTP/SFTP Server
• WebDAV Server
• Microsoft Active Directory support

Backup management

• Remote backups: My Cloud Expert Series to My Cloud Expert Series locally or remotely
• Backup internal files or folders of the device to other files/folders on the NAS or attached USB drive
• WD SmartWare Pro for Windows clients
• Apple Time Machine (10.5.8+) support
• Cloud-based backup services
  • Amazon S3
  • ElephantDrive (http://home.elephantdrive.com/)
• Disk sync management for the attached USB ports

Disk management

• RAID: JBOD, spanning, 0/1
• RAID migration
  • JBOD to RAID 1
• Hot swapping
• Disk roaming
• Array roaming

Security

• Volume Encryption (256 bit AES)

File System

• EXT4 for internal HDD
• Support following formats for externally attached USB drives
  • FAT/FAT32
  • NTFS (read and write capability)
  • HFS+J (case sensitive)
  • Linux EXT2, EXT3, EXT4
• Support for mounting ISO-Image

FTP Server

• Support Port Setting
• Set port range of passive FTP
• Option to report external IP in PASV mode
• Client language selection
• Anonymous FTP
• Secure FTP Support
• Support File eXchange Protocol (FXP)
• FTP bandwidth restriction (upstream/downstream)
• IP address block (block access from undesired IP address)

Download Management

• HTTP downloads from a URL to a user specified folder on the NAS
• FTP downloads of files or folders from an FTP server to another files/folders on the NAS
• P2P Download Manager

Power Management

• Drive Spin Up/Down (including Attached WD USB drives)
• Automatic power recovery (with UPS)
• Schedule power on/off
• Graceful shutdown on UPS low battery
• FAN Control
• Network UPS
• Wake On LAN

Remote Access

• My Cloud mobile app
• My Cloud desktop app
• WD Photos mobile app

User/Group Management

• Max No. of Users: 512 for Samba, 800 for ADS
• Max No. of User Groups: 64 for Samba, 200 for ADS
• Max No. of Network Shares: Max No. of Network Shares: 128
• Max concurrent CIFS connections: 10
• User/Group assignment for network sharing/FTP
• Quotas for groups or users
• Assignment of users to multiple groups
• Batch assignment of users to groups
• Batch user creation
• Importing users (CSV Delimited Format)
• Importing groups (CSV Delimited Format)

System Management

• System status: Device Information
  • Capacity usage status for the external storage
  • File category breakdown of how much video, photo, music is stored
• Alert notifications
  • Event UI message
  • UI Alert (with message acknowledgment required)
  • Email notice
  • QuickView pop-up message
  • RED LED status
• Network recycle
  • Support Windows CIFS
  • Support Apple AFP
• System/FTP Log (Syslog Client)
• HTTP/S (Web) Administration Interface (HTTP Server)
• Firmware upgrade
• Configuration backup and restore
• SNMPv2
• System Information
  • CPU percentage
  • RAM usage
  • Network performance in MB/s

Media Streaming

• UPnP AV Media server (Twonky)
• DLNA certification
• Support WD TV, WD TV Live, Xbox 360, PlayStation 3, Windows 8, connected TVs, Blu-ray players and digital picture frames
• iTunes Server

Third-party App Support

• aMule - peer to peer file sharing application
• Icecast - media streaming app
• phpBB - Internet forum application
• Joomla! - content management system
• SqueezeCenter - streaming audio server
• phpMyAdmin - My SQL administration tool
• WordPress - blogging tool and content management system
• Transmission - BitTorrent client

iSCSI

• iSCSI Target
  • CHAP authentication
  • iSNS (Internet Storage Name Service )
  • Up to 64 iSCSI Targets
• Volume Virtualization
  • Virtual Disk Drive (via iSCSI Initiator)
  • Max number of virtual disk drives supported is eight (8)

Power Supply

• Input voltage: 100V to 240V AC
• Input frequency: 50 to 60 Hz
• Output voltage: 12V DC, up to 4A

Temperature

• Operating Temperature: 0° C to 35° C ( 32° F to 95° F)
• Non-op Temperature: -40° C to 70° C (-40° F to 158° F)

Package Contents

• NAS
• Ethernet cable
• Power supply and cable
• Quick Install Guide
