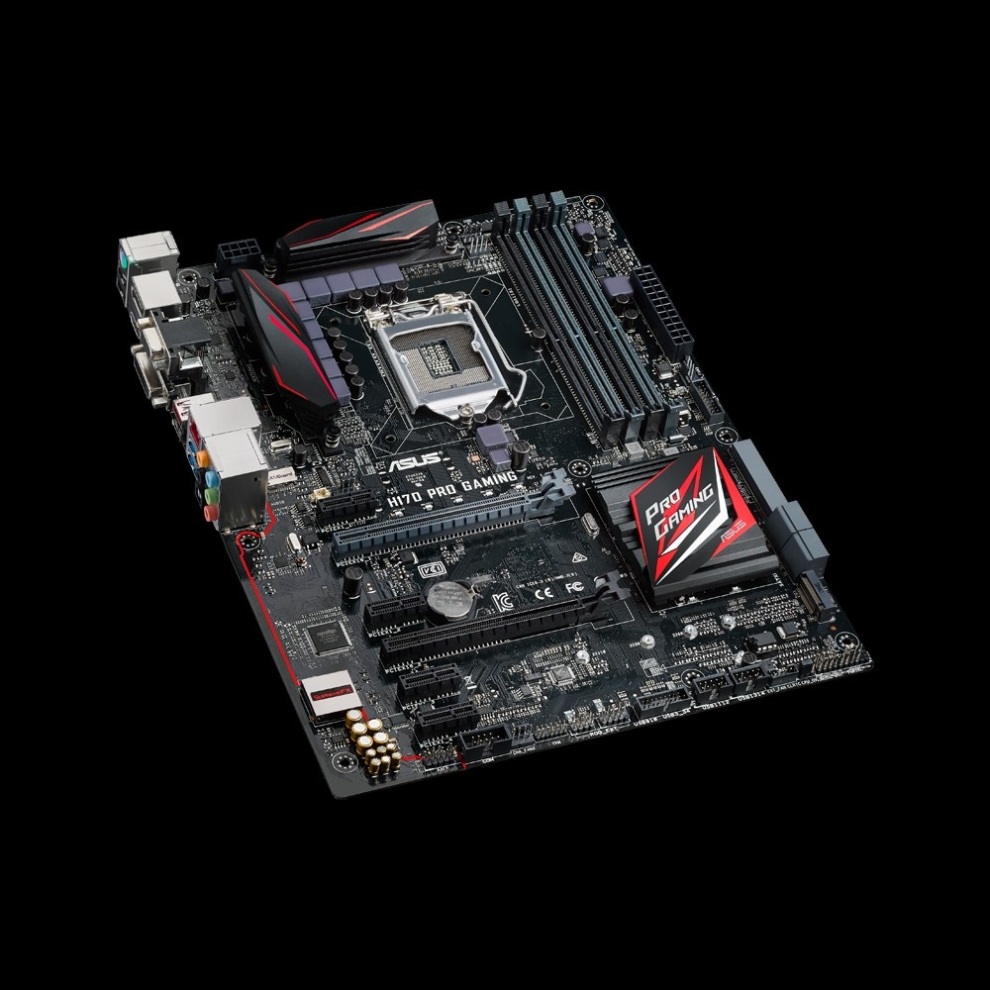

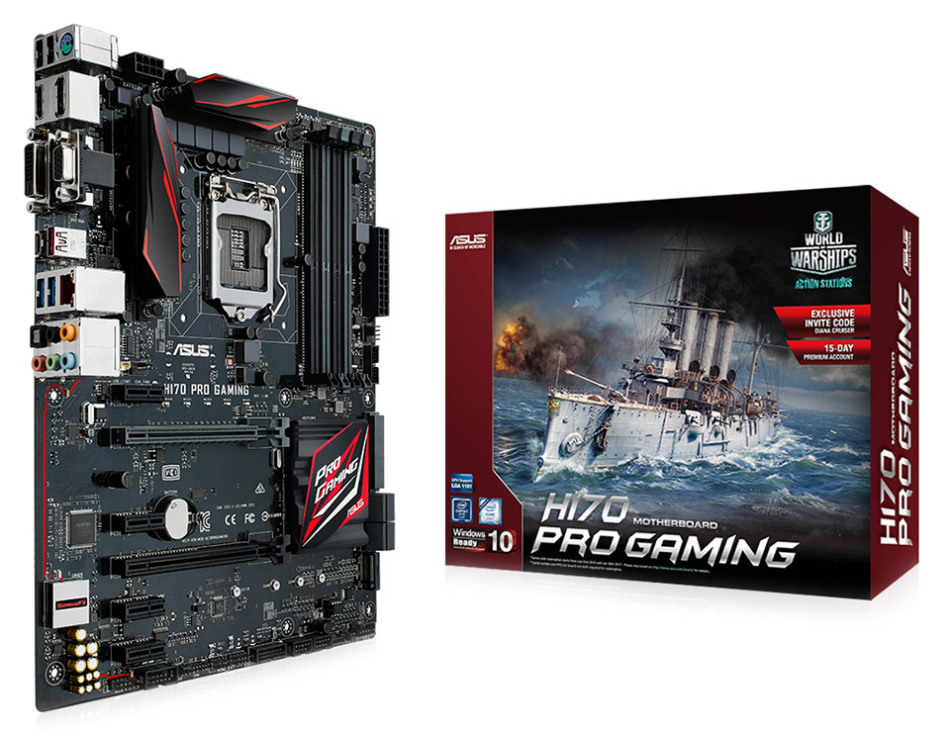

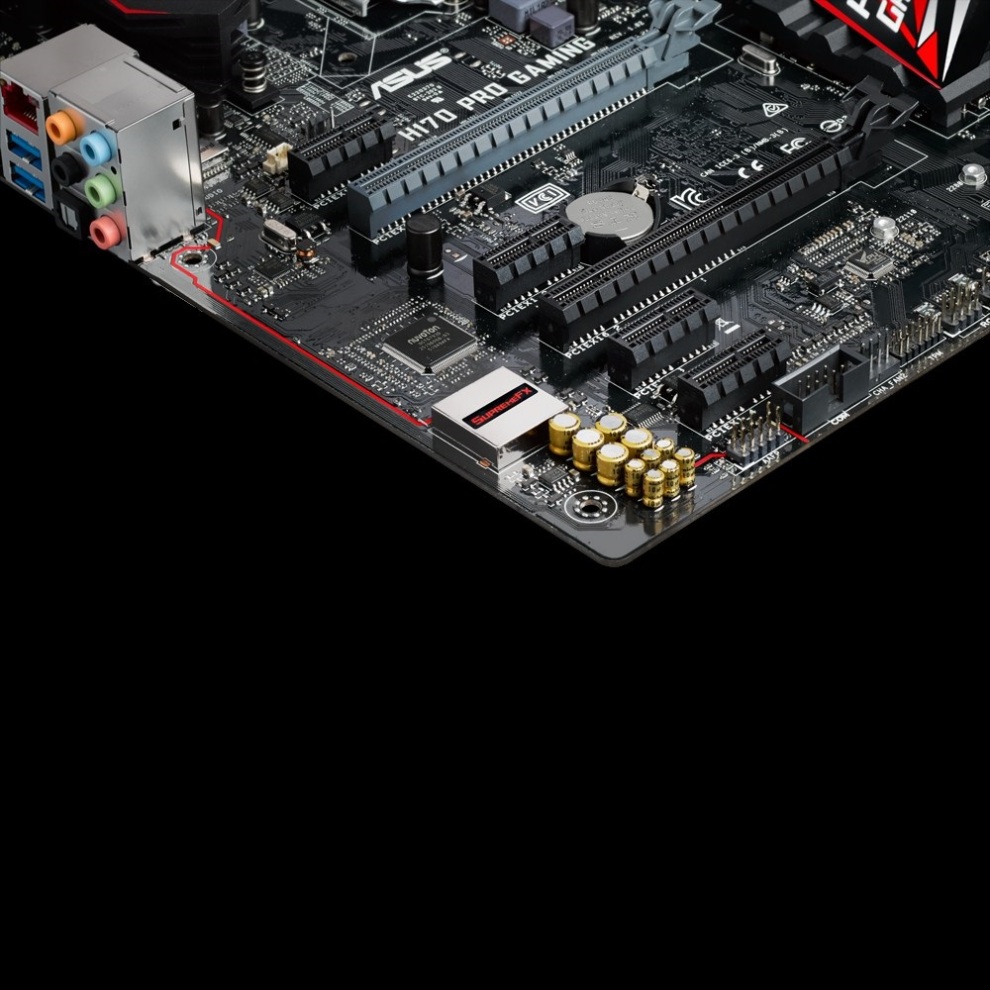

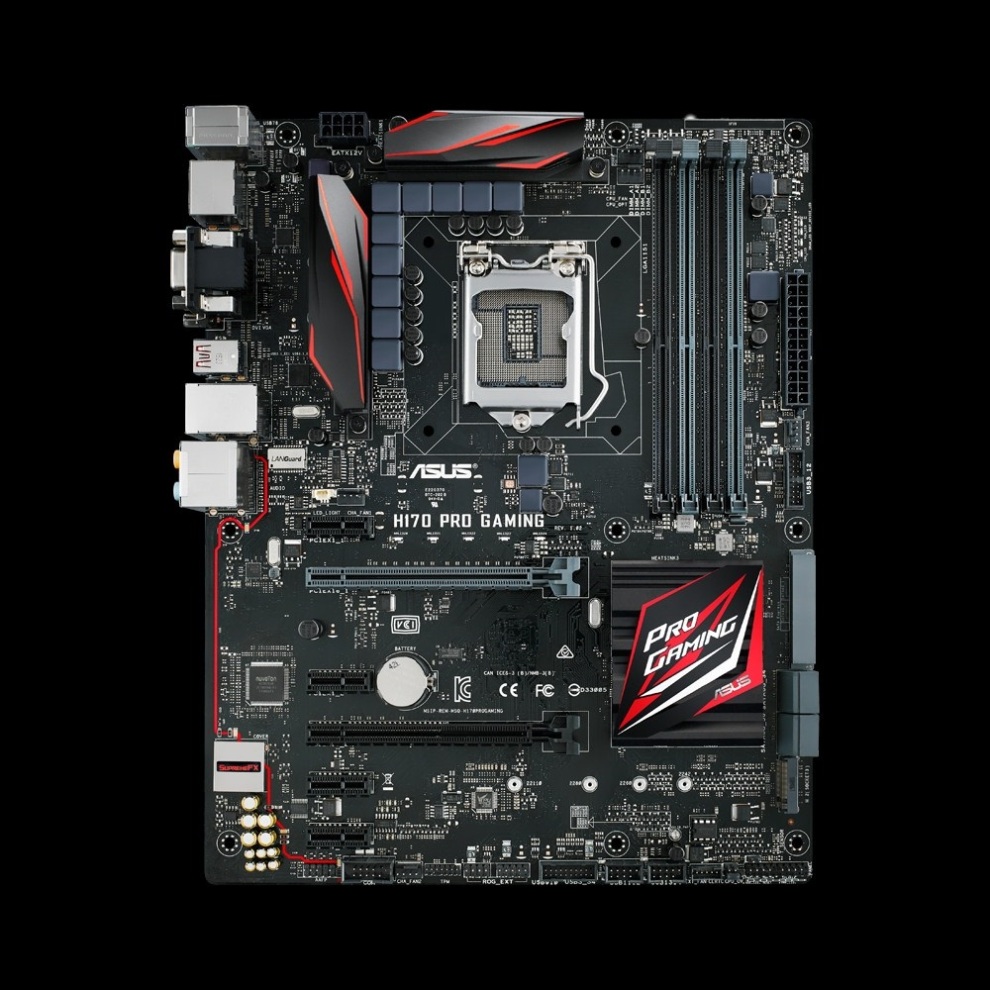

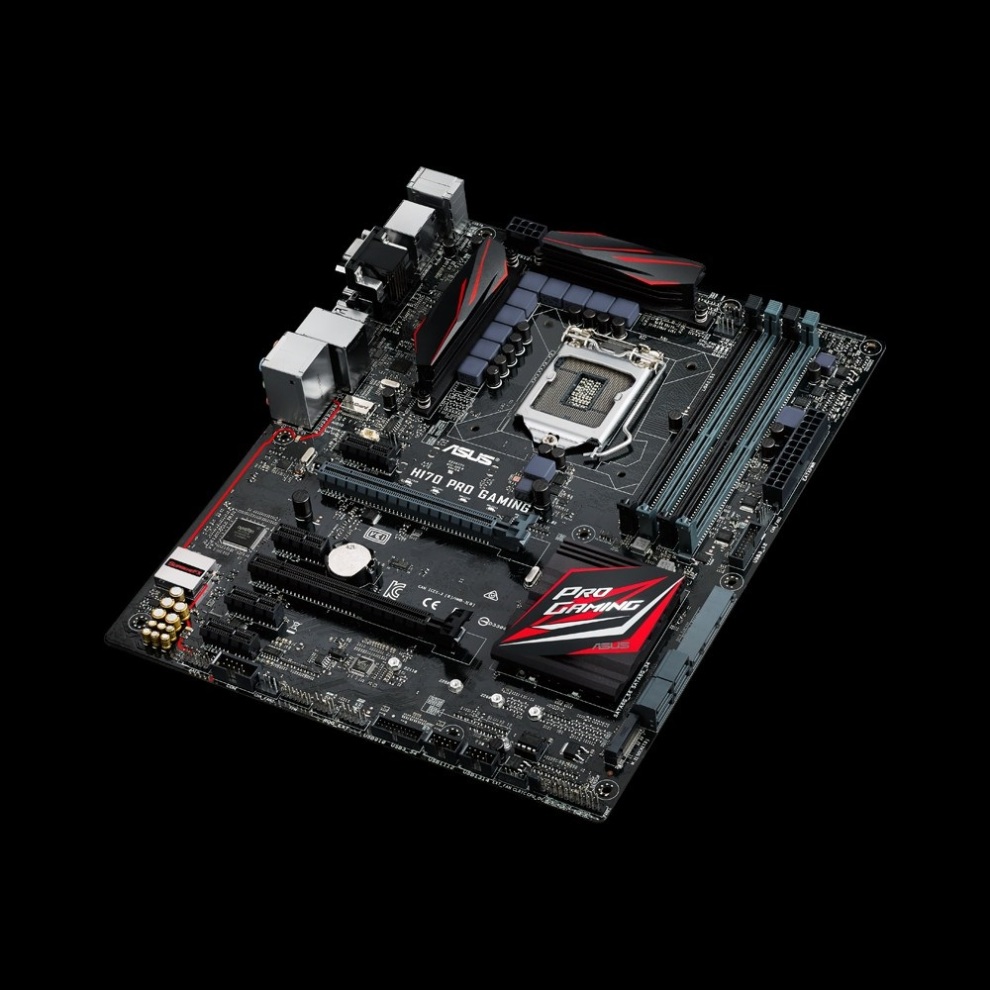

مادربرد ایسوس H170 PRO GAMING

Model

Brand

ASUS

Model

H170 PRO GAMING

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Supported CPU Technologies

Turbo Boost Technology 2.0

Chipsets

Chipset

Intel H170

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

PCI Express x1

4 x PCI Express 3.0 x1

Storage Devices

SATA 6Gb/s

4 x SATA 6.0 Gb/s ports (gray)

SATA Express

1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports)

M.2

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIe3.0 x4 modes)*
* When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, DVI, D-sub ports
Supports DisplayPort 1.2 with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Supports D-sub with max. resolution 1920 x 1200 @60Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Maximum shared memory of 512MB

Multi-GPU support
Supports AMD 2-Way/ Quad-GPU CrossFireX Technology

Onboard Audio

Audio Chipset

SupremeFX 8-Channel High Definition Audio CODEC

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Intel Gigabit LAN
Anti-surge LANGuard
GameFirst technology

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

D-Sub + DVI

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

2 x USB 3.1 ports (1 Type-A, red; 1 Type-C, black)

USB 3.0

2 x USB 3.0/2.0 ports

USB 1.1/2.0

2 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

8-channel audio I/O ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 connectors supports additional 4 USB 3.0 ports
3 x USB 2.0 connectors support additional 6 USB 2.0 ports (one connector via ROG_EXT header)

Other Connectors

1 x System panel header
1 x Front panel audio connector (AAFP)
1 x CPU fan connector (4-pin)
1 x CPU optional fan connector (4-pin)
3 x Chassis fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x Thermal sensor connector
1 x EXT_FAN header
1 x COM connector
1 x TPM header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x ROG extension (ROG_EXT) header
1 x CPU_OV
1 x Standby Power LED (red)
1 x Clear CMOS jumper (2-pin)

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

ASUS Gaming Features

Gamer's Guardian
DIGI+ VRM
DRAM Overcurrent Protection
ESD Guards on VGA, LAN, Audio, KBMS and USB3.0/2.0 Ports
Highly Durable Components
Stainless Steel Back I/O
Q-Design (Q-DIMM, Q-Slot, Q-Shield, Q-LED)

Performance Level Up
DIGI+ VRM
AI Suite 3
Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
UEFI BIOS (CrashFree BIOS 3, EZ Flash 3)
RAMCache: Speed your game loads

ASUS Exclusive Features
USB3.1 Boost featuring speedy USB3.1 transmission
Media Streamer
Push Notice
Disk Unlocker
AI Charger+
ASUS CPU-Z

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support DVD:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System Support:
Windows 10*
Windows 8.1*
Windows 7
*64-bit supported only

Packaging

Package Contents

Accessories:
4 x Serial ATA 6.0Gb/s cables
1 x User manual
1 x I/O shield
1 x M.2 Screw package
1 x PRO GAMING Cable Labels
1 x Support DVD
