تعداد آنتن: 2 عدد خارجی
کلید: Reset - Power - WPS - WLAN
استاندارد شبکه بیسیم : IEEE 802.11b/g/n
سرعت انتقال داده: 300 مگابیت بر ثانیه
پورت شبکه: 4 عدد

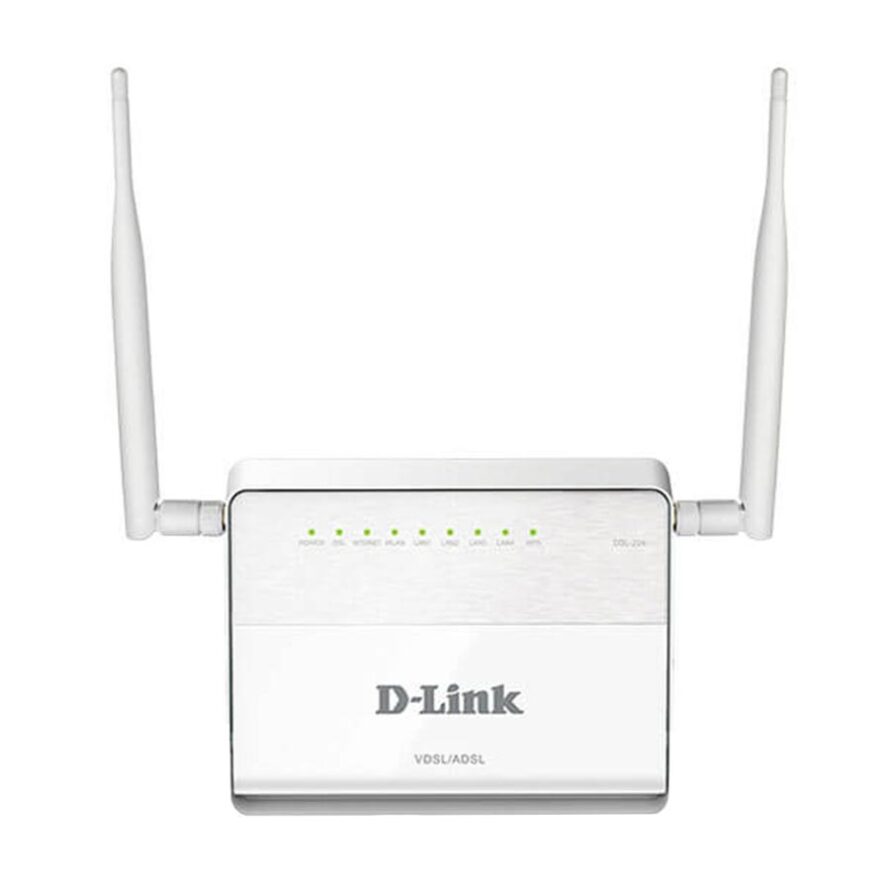

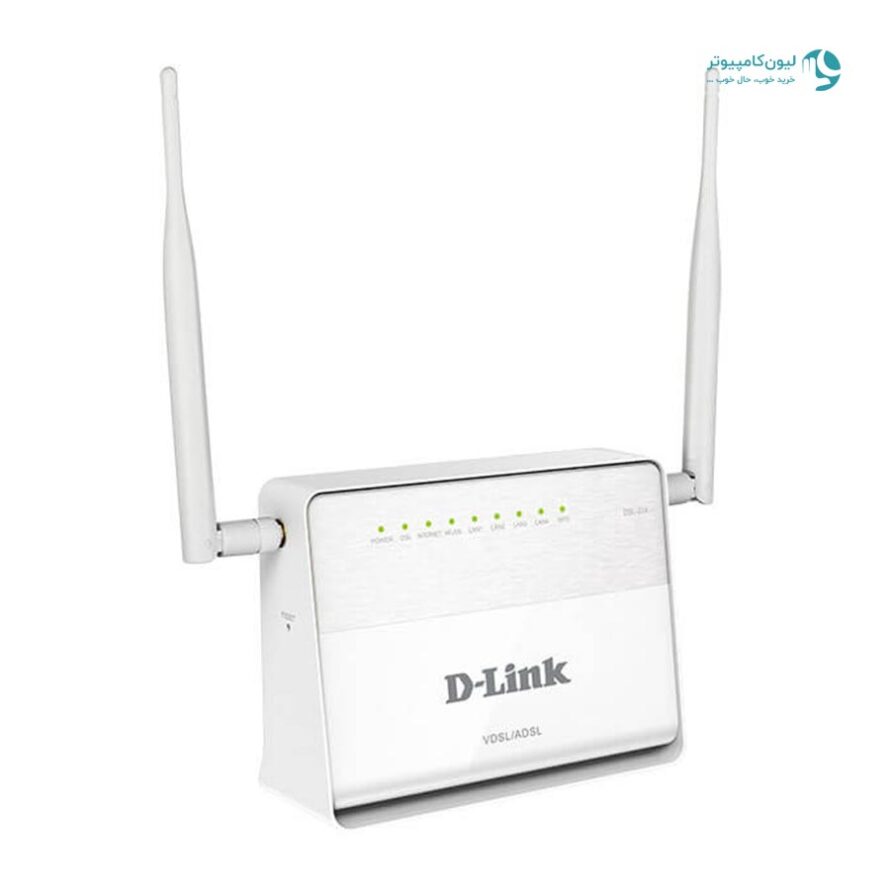

The DSL-224 combines both VDSL2/ADSL2+ modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection with all your devices.
Connect to your VDSL2/ADSL2+Internet Service Provider with download speeds of up to 100Mbps, then immediately share the Internet connection with both wireless and wired devices. Additionally, the DSL-224 gives you the option to connect to your broadband modem via WAN/LAN Ethernet port giving you the freedom to access the Internet via VDSL2/ADSL2+, Cable, or other connection types.
802.11n wireless gives you the bandwidth to stream HD multimedia and feature-rich content across your home, so you can browse the Internet and stream digital media at combined speeds of up to 300 Mbps across two separate bands.
DSL-224 Features | |
General | |
Availability: | currently available |
LAN / WAN Connectivity | |
WAN throughput: | 100 Mbps |
WAN throughput upstream: | 50 Mbps |
WAN ports: | 1 |
WAN port(s) type: | DSL/ISDN/POTS connector (RJ-11) |

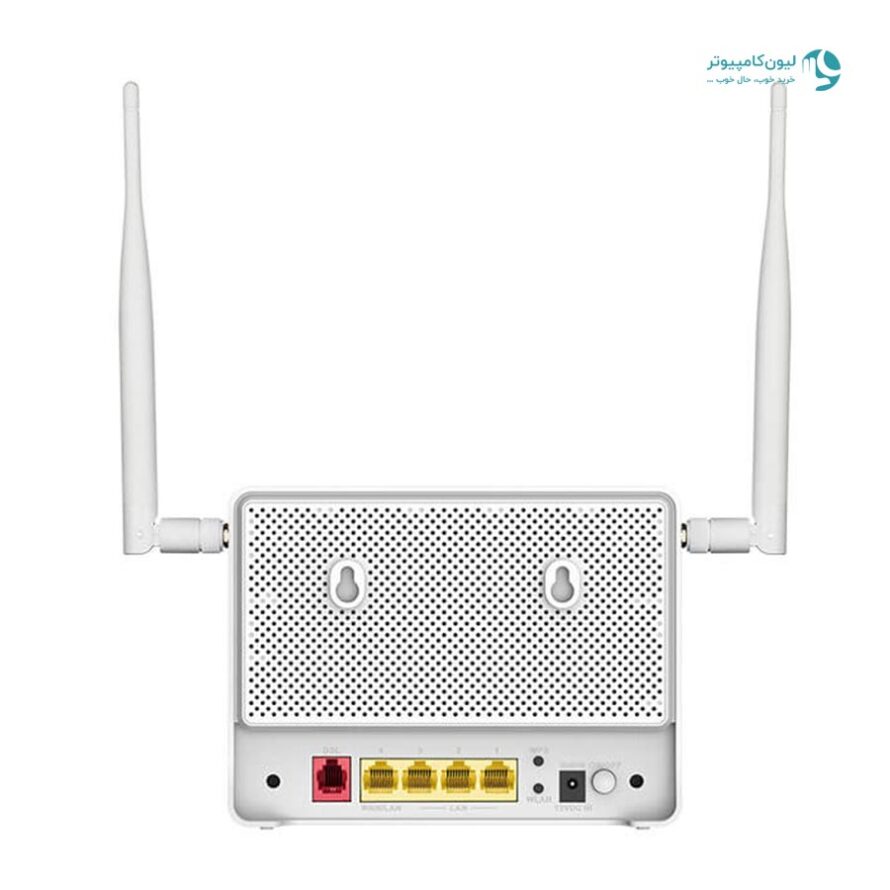

LAN ports: | 4 |
LAN ports type: | 10/100 Base-TX (RJ-45) |
LAN ports auto cross-over: | |
Router | |
NAT routing: | |
Multihomed: | |
QoS: | |
UPnP: | |
DSL | |
DSL compliance: | ADSL1 (G.dmt 992.1, G.lite 992.2, G.hs 994.1, DMT T1.413) ADSL2 (G.992.3, G.lite.bis 992.4) ADSL2+ (G.992.5) VDSL (G.993.1) VDSL2 (G.993.2) |
PPPoE client: | |
PPPoA client: | |
Wireless | |
Maximum Wireless Speed: | 300 Mbps |
WiFi standards supported: | 802.11b (11 Mbps) 802.11g (54 Mbps) 802.11n |
Wifi security/authentication: | WEP WPA (TKIP) WPA2 (AES) |
WiFi modes: | Access point |
external antenna(s): | 2 |
WDS compatible: | |
WPS (Wi-Fi Protected Setup): | |
VPN | |
IPSec | |
IPSec passthrough: | |
L2TP | |
L2TP passthrough: | |
PPTP | |
PPTP passthrough: | |
Firewall | |
SPI firewall: | |
Device Management | |
Administration: | Quick Setup Wizard Telnet / CLI |
Firmware upgradeable: | |
Event log: |
مودم
D_Link
VDSL2/ADSL2+
2 عدد
خارجی
Reset,Power | WPS | WLAN
دارد
IEEE 802.11b/g/n
2.4 - 5.0 گیگاهرتز
WEP - WPA/WPA2 - МАС filter - WPS (PBC/PIN)
300 مگابیت بر ثانیه
4 عدد
دارد
