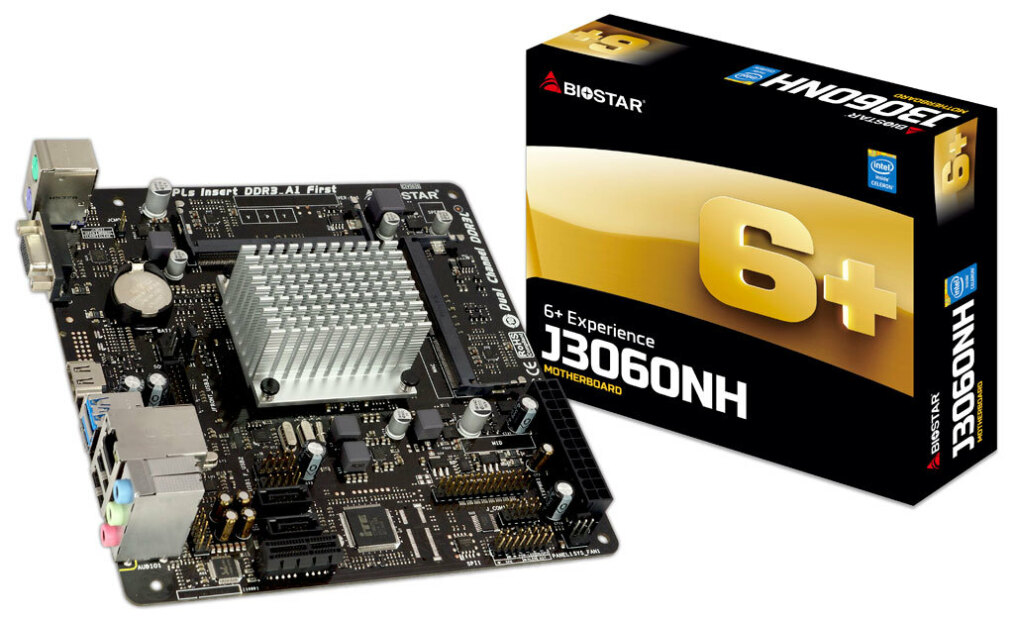

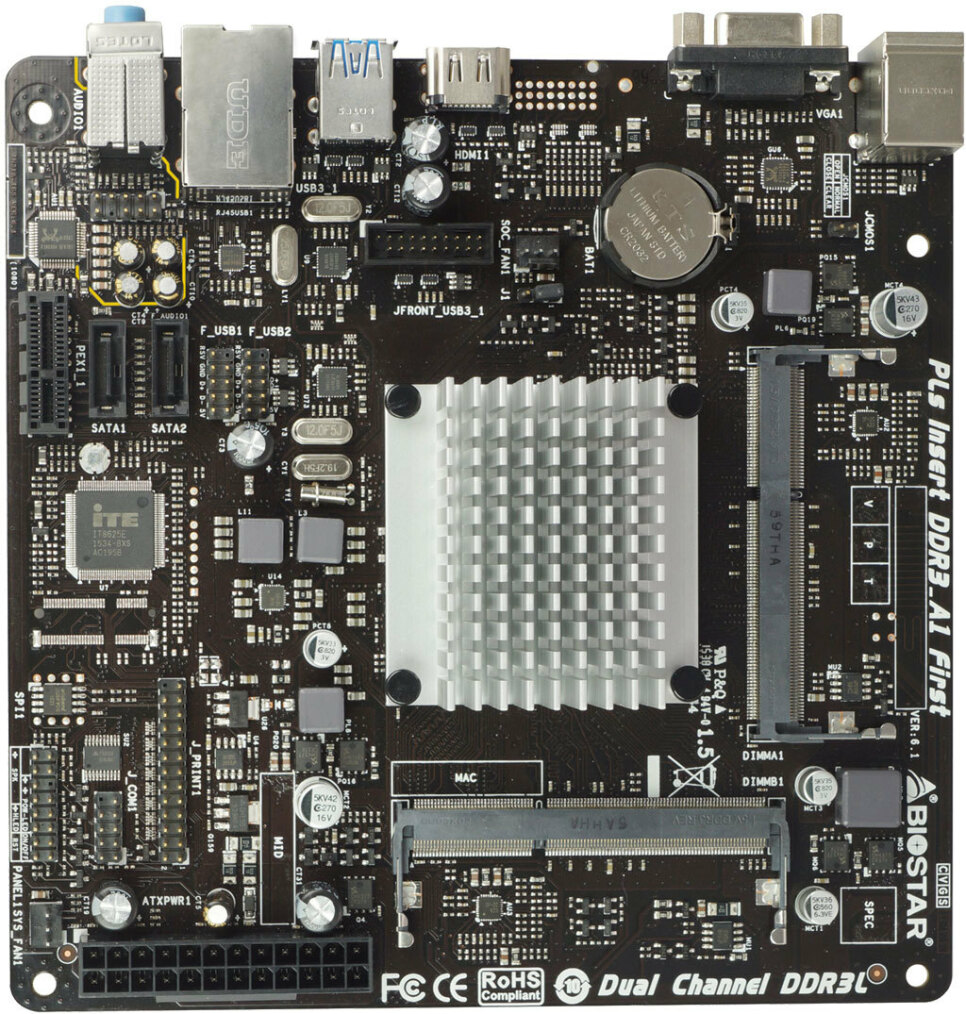

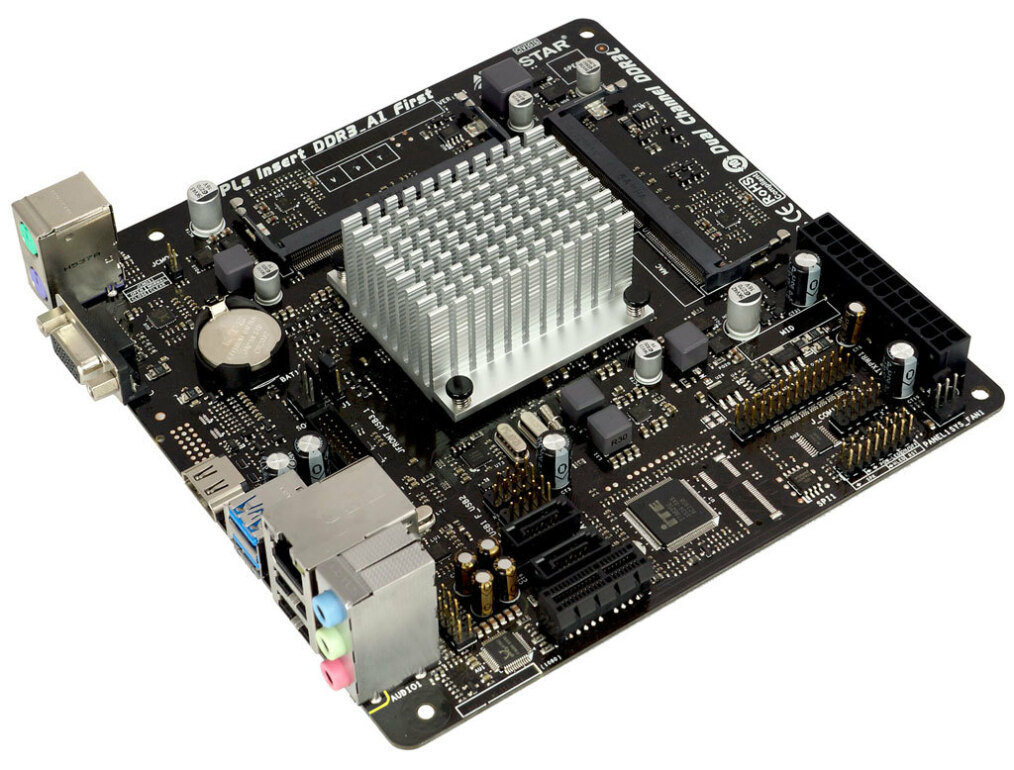

مادربورد بایواستار J3060NH Ver 6 x

CPU Intel® Celeron J3060 Dual-core 2.48G
MEMORY Support Dual Channel DDR3L 1600/1066 MHz
2 x DDR3 SO-DIMM Memory Slot
Max. Supports up to 8GB Memory for DDR3L-1600 OR 16GB Memory for DDR3L-1066
※The DIMM must be installed to DIMMA1 slot first.
INTEGRATED VIDEO Intel HD Graphics
Supports DX11.1
Supports HDCP
STORAGE 2 x SATA3 Connector
LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC Realtek ALC662 6-Channel HD Audio
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT 1 x PCI-E 2.0 x1 Slot

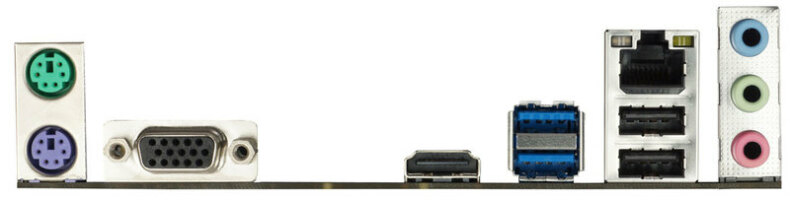

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks
INTERNAL I/O 1 x Printer Header
1 x USB 3.0 Header
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
2 x System Fan Connector
1 x Serial Port Header
H/W MONITORING CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring
DIMENSION Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
OS SUPPORT Support Windows 7(x64) / 8.1(x64) / 10
BUNDLE SOFTWARE BullGuard
BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update
