ذخیره ساز تحت شبکه کیونپ TS-1277-1600-8G
TS127716008G

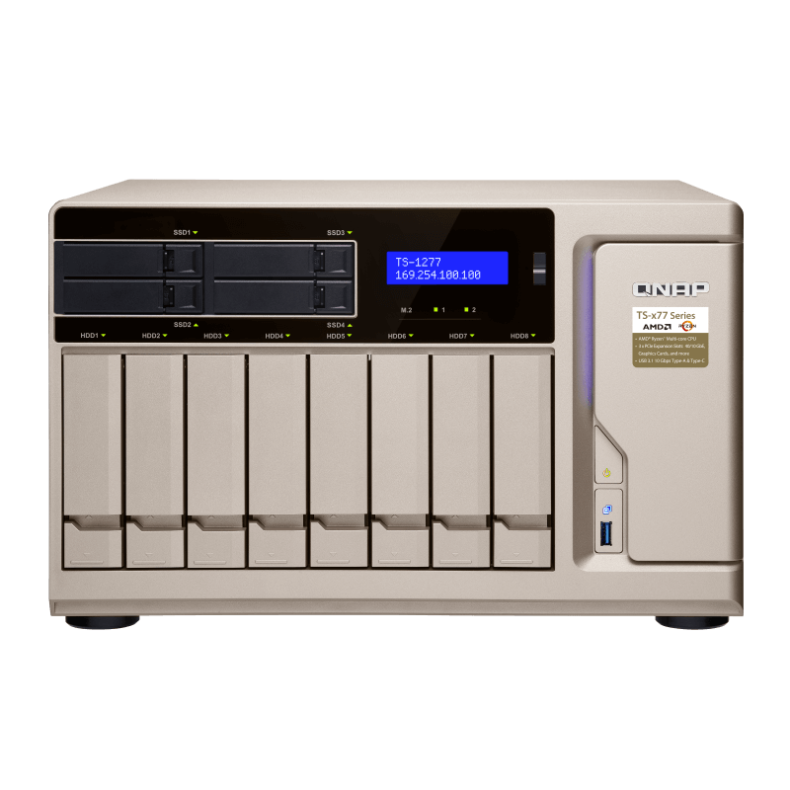

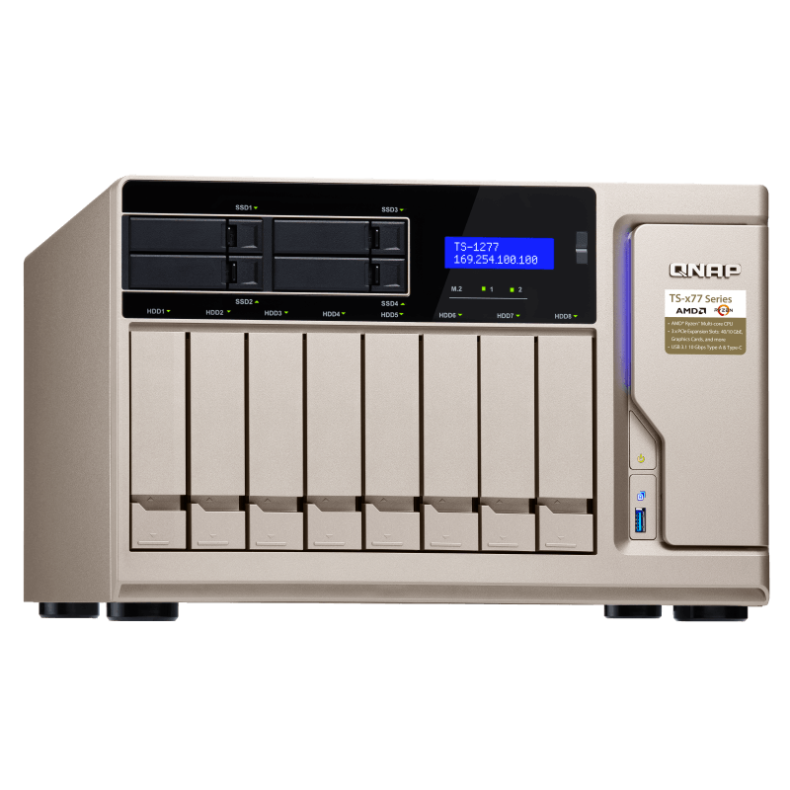

QNAP TS-1277-1600-8G 12Bay Network Storage
گارانتی پانا
The TS-1277 powered by AMD’s new 14nm Ryze processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-1277 the preeminent choice to tackle resource-demanding applications and tasks.
| CPU | Processor: AMD Ryzen™ 5 1600 6-core/12-thread 3.2 GHz processor, Turbo Core 3.6 GHz Architecture: 64-bit Graphics: Optional (with PCIe expansion card) Encryption Engine: AES-NI |
| System Memory | 8 GB DDR4 (2 x 4 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x UDIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 5GB (DOM for dual OS) |
| Drive Bay | 8 x 3.5-inch SATA 6 Gbps bays 4 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives 2.5-inch bays: • 2.5-inch solid state drives |
| M.2 SSD Slot | 2 x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | • 3.5-inch drive bays 1 to 8 • 2.5-inch drive bays 1 to 4 • M.2 slots 1 to 2 • Optional: SSD using PCIe expansion slot |
| Hot-swappable | Yes The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| 10 Gigabit Ethernet Port | Optional: With PCIe expansion card |
| Gigabit Ethernet Port | 4 x RJ45 |
| PCIe Slot | 1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4 |
| USB Port | 2 x USB 3.1 10 Gbps • Back: 1 x USB 3.1 10 Gbps Type-C • Back: 1 x USB 3.1 10 Gbps Type-A 6 x USB 3.0 • Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button) • Back: 5 x USB 3.0 Type-A |
| HDMI Output | Optional: With PCIe expansion card |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 2 x speakers Note: You cannot use the speakers and the line-out jack simultaneously. |
| Display Panel | Monochrome backlit LCD display with Enter and Select buttons |
| USB One Touch Copy | Front: USB 3.0 Type-A |
| Form Factor | Tower |
| Dimensions (H x W x D) | 234.6 x 369.9 x 319.8 mm 9.23 x 14.56 x 12.59 inch |
| Net Weight | NAS: 11.27 kg (24.85 lbs) Shipping: 13.49 kg (29.74 lbs) |
| Power Supply Unit | 550W, 100-240V AC, 50/60Hz |
| Fan | System: 3 x 80 mm CPU: 2 x 90 mm |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
