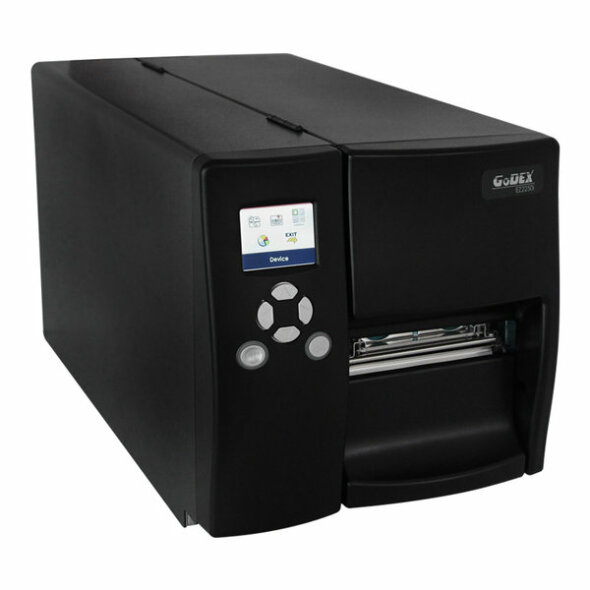

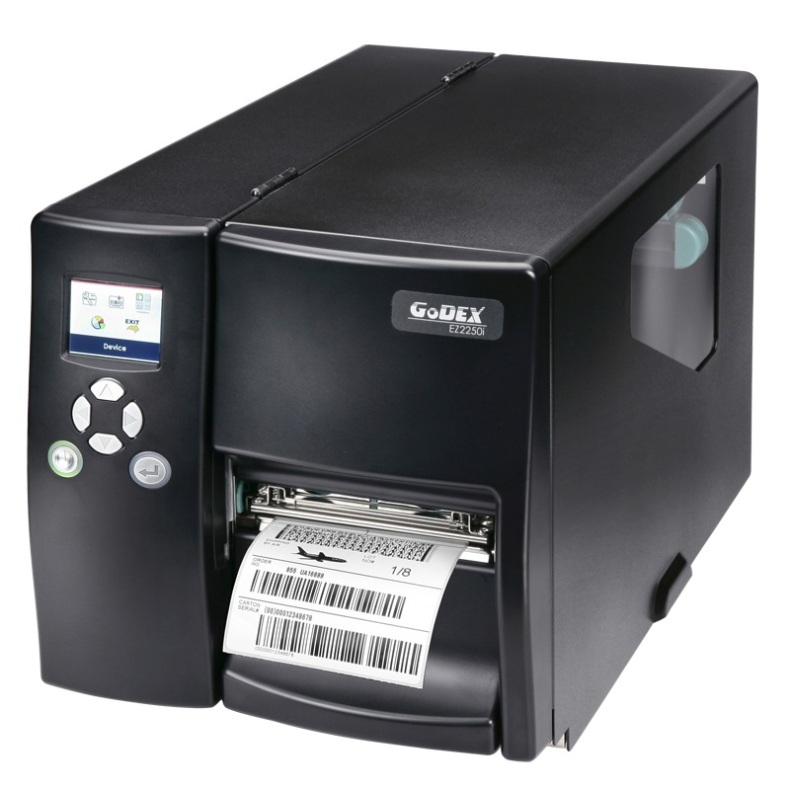

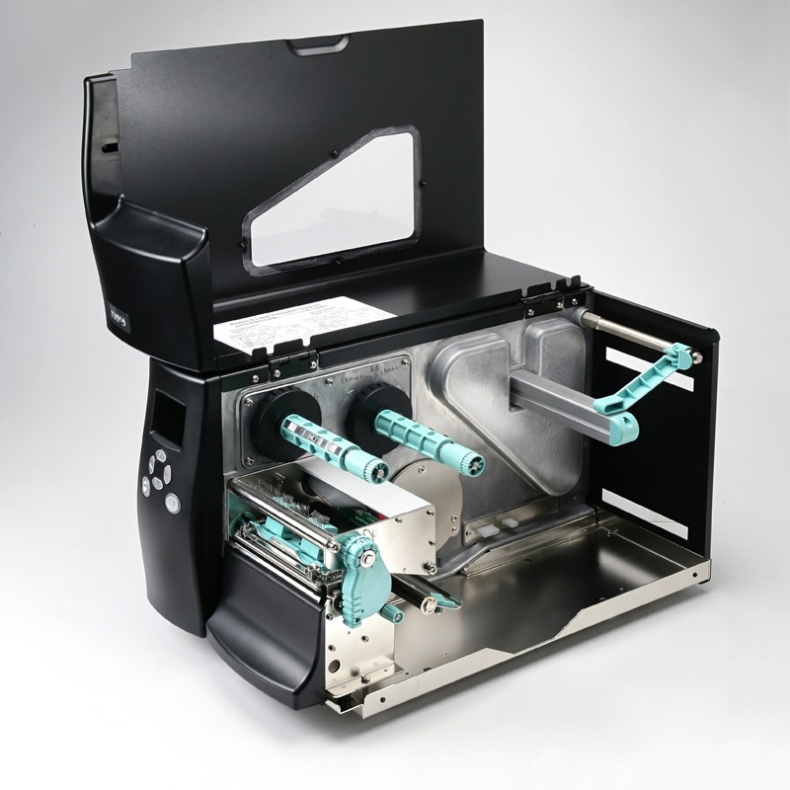

پرینتر صنعتی بارکد گودکس EZ2250
Godex EZ2250 Printer Label
کد کالا:
Lion-Product-9463
ناموجود
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 7IPS (177 mm/s) |
| Print Width | 4.09" (104mm) |
| Print Length | Min. 0.16” (4 mm); Max. 100” (2540 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) / 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor and transmissive sensor, left aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm) Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm) |

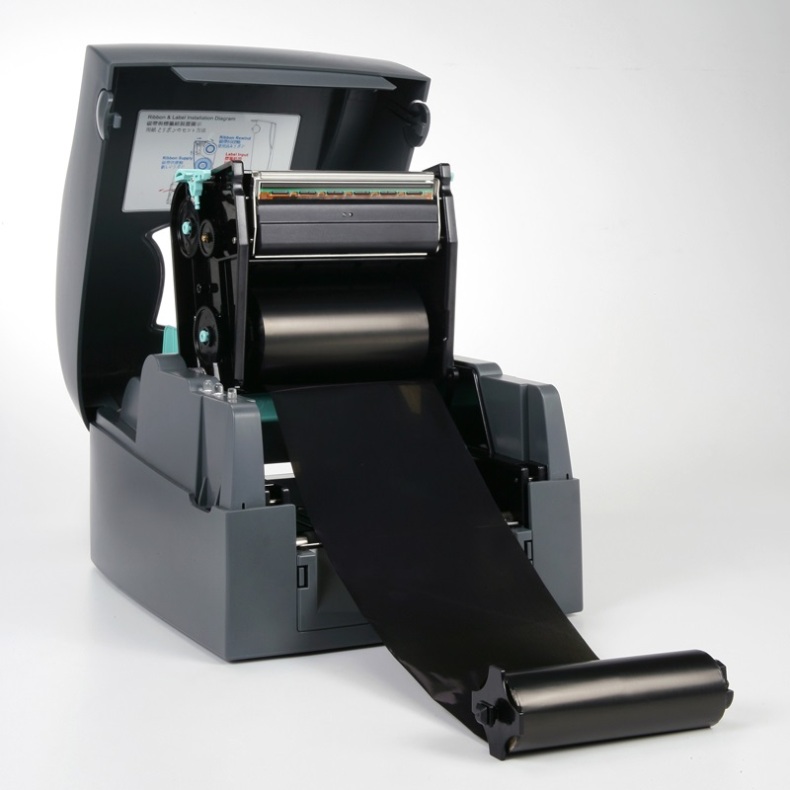

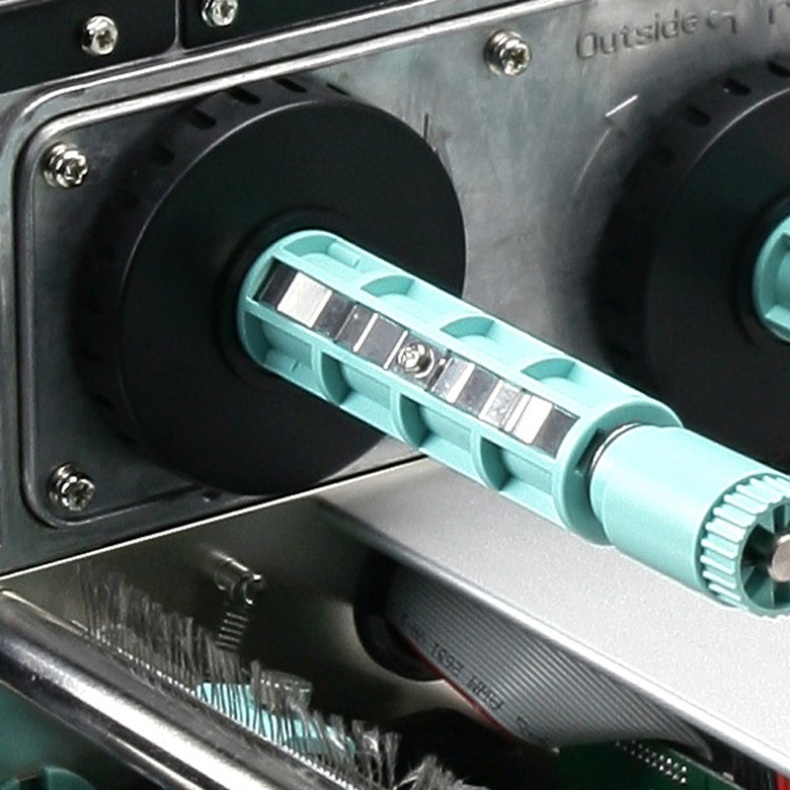

| Ribbon | Types: Wax, wax/resin, resin Length: 1471’ (450 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.99“ (76 mm) Core diameter: 1” (25.4 mm) |
| Printer Language | EZPL , GEPL, GZPL auto switch |
| Software | Label design software: GoLabel (for EZPL only) Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008 |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |

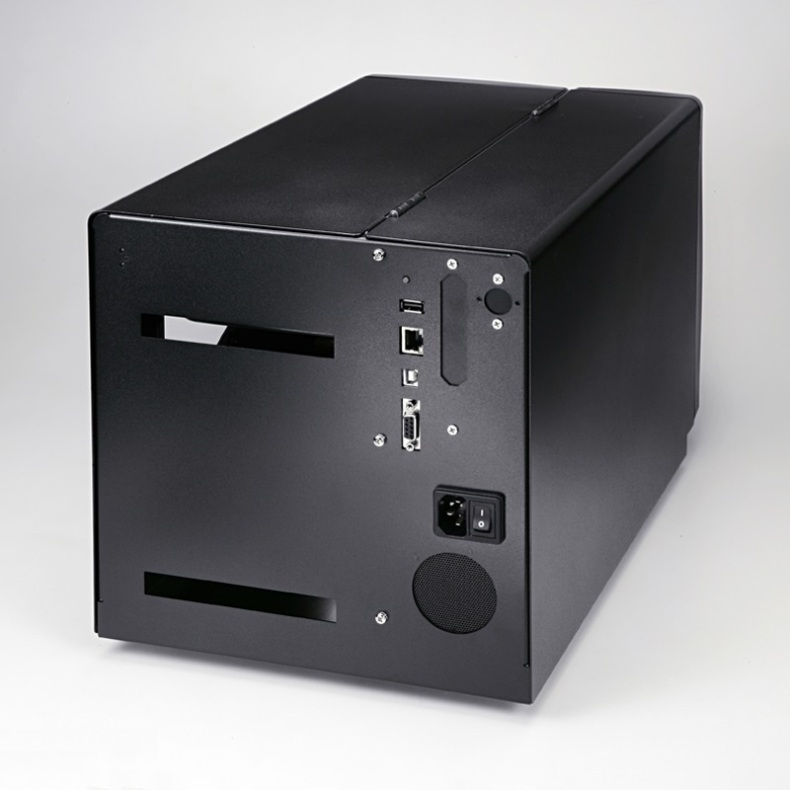

| Interfaces | Serial port: RS-232 (DB-9) USB 2.0 Ethernet 10/100 Mbps USB Host |

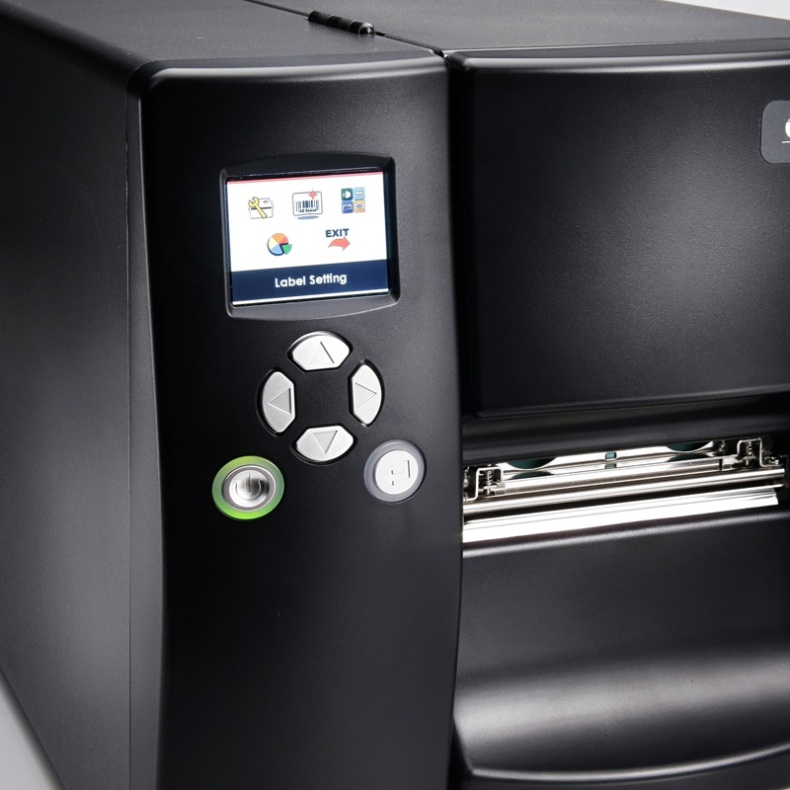

| Control Panel | Color TFT LCD with navigation button Power on/off button Calibration button |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Real Time Clock | Standard |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimension | Length: 20.15” (512 mm) Height: 11.45” (291 mm) Width: 10.78” (274 mm) |
| Weight | 33 lbs (15Kg) ,excluding consumables |
| Options | Cutter Module Label Dispenser + Internal Rewinder Parallel port adopter module (Centronic female 36-pin) Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
پرینت-اسکن-کپی-فکس
نوع کاربری
چاپ سیاه و سفید
ارتباط بیسیم
ندارد
تکنولوژی پرینت
Thermal
درگاه USB
دارد
چاپ دو رو
ندارد
اسکنر
ندارد
فکس
ندارد
