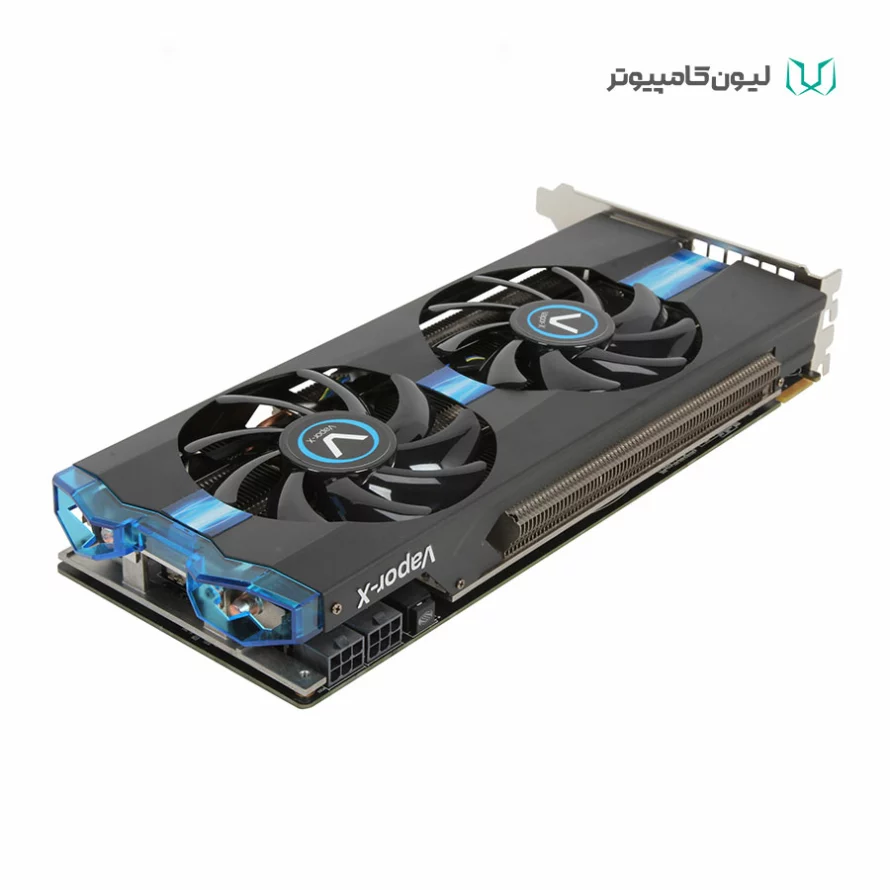

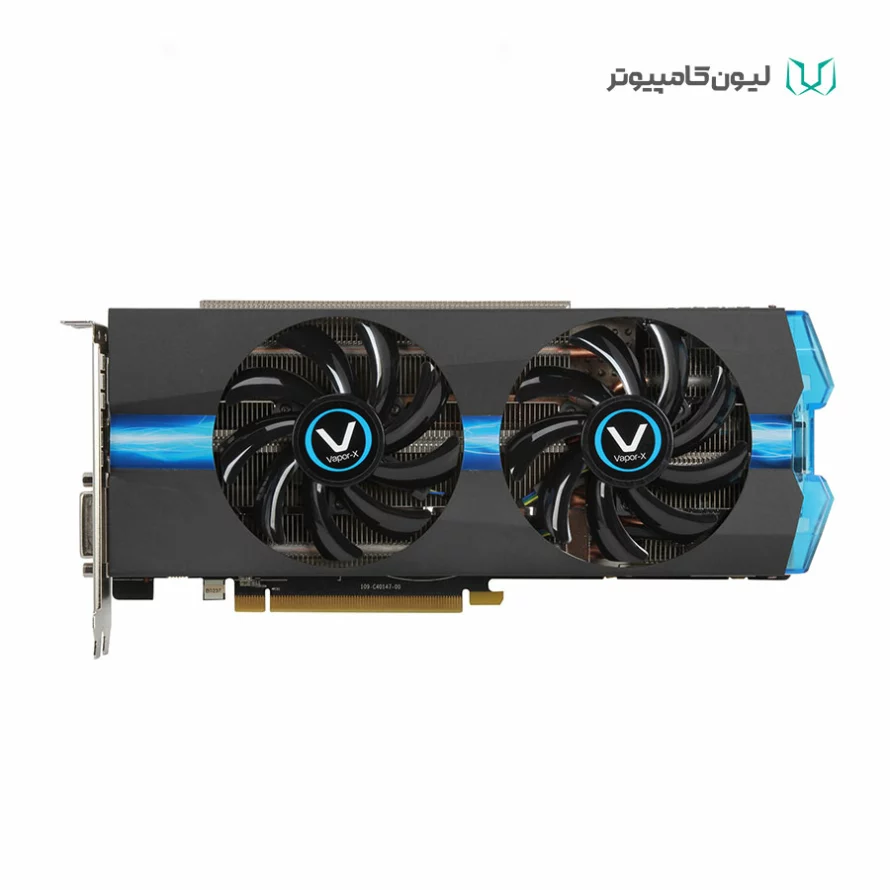

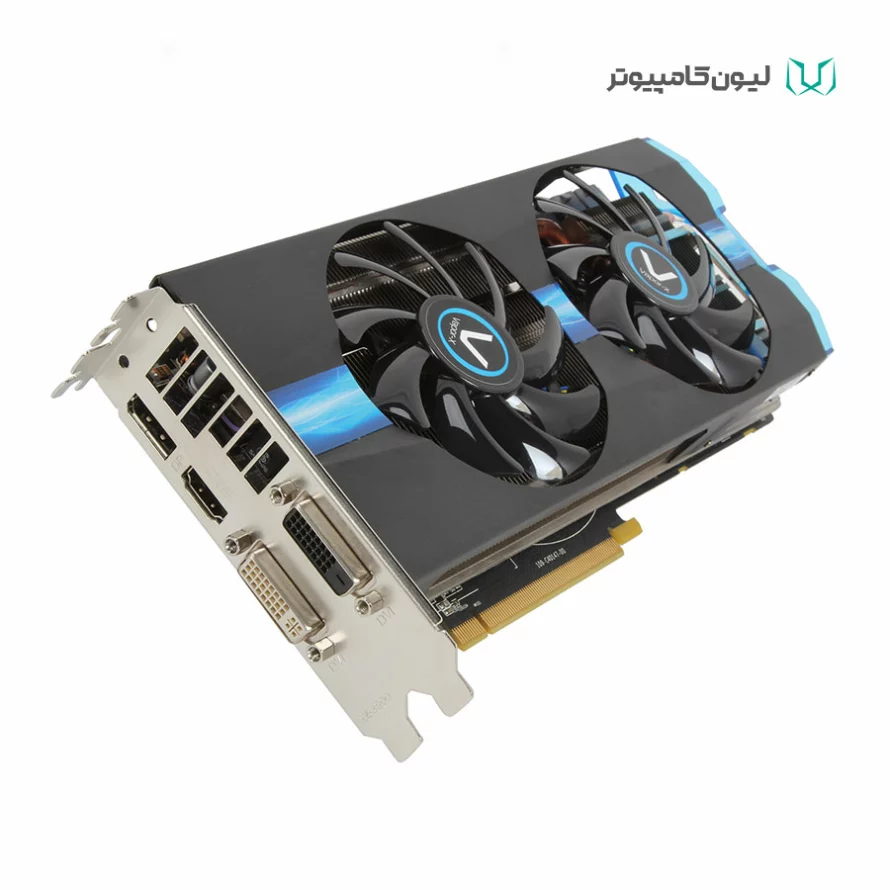

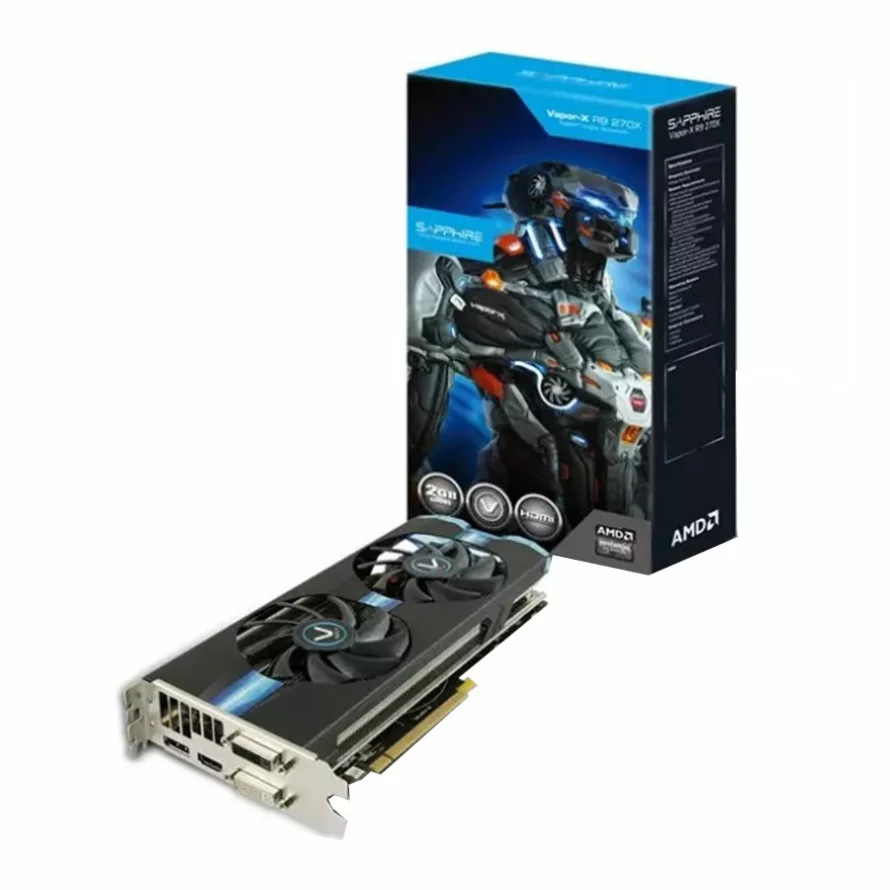

کارت گرافیک سافایر Vapor X R9 270X OC 2GB

Sapphire Vapor-X R9 270X OC 2GB GDDR5 Graphics Card

پلتفرم : AMD
مدل پردازنده : R9 270X
فرکانس : 1100 مگاهرتز
حجم حافظه: 2 گیگابایت
نوع حافظه: GDDR5
کد کالا: Lion-Product-3610

ناموجود

Overview

HDMI (with 3D)


Support for Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic,  ensuring the highest quality Blu-ray and video experience possible from your PC.


DisplayPort 1.2

Doubling the effective bandwidth of previous DisplayPort implementations, DisplayPort 1.2 now includes support for Multi-Stream, allowing you to drive up to four separate monitors from a single DisplayPort 1.2 connector (requires DP1.2 monitors or Multi-Stream compatible hub), Stereoscopic 3D monitor support  and adds support for high quality, lossless, 7.1 channel audio formats.


Dual-Link DVI-D

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.


Dual-Link DVI-I

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.


Advanced GDDR5 Memory Technology

GDDR5 memory provides twice the bandwidth per pin of GDDR3 memory, delivering more speed and higher bandwidth.


Vapor-X Technology

SAPPHIRE’s innovative Vapor-X cooling technology allows products to run not only cooler but also much quieter.  A Vapor-X product means a virtually silent gaming experience and more headroom to explore performance tweaking !


AMD Stream Technology

Accelerate the most demanding applications with AMD Stream technology and do more with your PC. AMD Stream Technology allows you to use the teraflops of compute power locked up in your graphics processer on tasks other than traditional graphics such as video encoding, at which the graphics processor is many, many times faster than using the CPU alone.


AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)

Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder(UVD)


AMD CrossFireX™ Multi-GPU Technology

Triple or Quadruple gaming power with AMD CrossFireX™ Multi-GPU Technology.AMD CrossFireX technology supports up to four graphics cards to be used in a single system.


Black Diamond Choke & Full Solid Cap Design

Choke is an important component of the graphics card. By working with the component engineer, Sapphire’s patent pending choke is 10% cooler and offers 25% more power efficiency than a normal choke. The graphics card will be more reliable and save energy.

Improved reliability and better overclocking are possible by using only high-polymer, aluminum capacitors which posses far superior characteristics than regular aluminum capacitor for a longer product life. When operational temperatures drop by 20°C, the product life span is extended by a factor of ten, when the operational temperature increases by 20°C, the product life span only decreases by 10%.


AMD HD3D Technology

Enjoy the most immersive experience possible with full support for High Definition Stereoscopic 3D, a technique that presents 2D images (movies, games, photos) in a format that creates the illusion of three-dimensional depth when using compatible 3D displays / glasses / software.


28 nm GCN (Graphic Core Next) Architecture

The new 28nm GCN Architecture’s more efficient process technology puts more transistors in less space, enabling a dramatic increase in processing power


PCI Express 3.0

PCI-Express 3.0 delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU (GPU communication-up to 16GB/sec in each direction), maximizing the performance from your GPU when paired with the latest platforms.


AMD Eyefinity 2.0

The next generation of AMD Eyefinity technology is here, featuring all-new support for stereo 3D, universal bezel compensation and brand new display configurations. Face it: the best just got better: The enhancements for AMD Radeon HD7000 series include: Stereo 3D-multi-display stereoscopic 3D support via DisplayPort 16K X 16K maximum display group resolution-output up to 268 megapixels per GPU.


*To support 3 displays, one of the monitors has to support DisplayPort
*With Sapphire Flex Technology, this requirement will be no necessory
 Learn more about Sapphire Flex Technology
**When running Microsoft Windows XP, Eyefinity technlogy supports a maximum of 2 displays.


DirectX® 11.2

The tessellation performance on AMD Radeon R7/ R9 series is up to 2X faster than the previous generation, and DirectCompute performance is also faster to accelerate advanced post-processing, filtering, and anti-aliasing techniques. Direct X11 games has never looked this good.


OpenGL 4.3

OpenGL 4.3 improves the GPU efficiency by improving the shader process operation and capturing GPU tessellated geometry. The process of modifying an arbitrary subset of compress texture is also simplified. The memory management in handling shaders is more efficient as well.


Mantle


Properly enabled games will reach new heights of performance by speaking the language of Graphics Core Next architecture.


AMD Catalyst Control Center™

The AMD Catalyst Control Center™ software application gives you complete control over the performance and visual quality of your SAPPHIRE AMD Radeon™ based graphics card allowing for the best experience on your PC.


Dolby® TrueHD and DTSHD Master Audio™ Support

Support for copy protected, high bandwidth, 7.1 channel surround sound over HDMI. Get a fully immersive, high definition audio experience with the latest Blu-ray movies. (Requires a DVI to HDMI dongle on some models, an HD capable monitor and a Blu-ray drive)


Anti-aliasing features

Supports advanced AA (Anti-aliasing) features to maximise your enjoyment of high definition gaming.

  • Multi-sample anti-aliasing (2, 4 or 8 samples per pixel)
  • Up to 24x Custom Filter Anti-Aliasing (CFAA) for superior quality
  • Adaptive super-sampling and multi-sampling
  • Gamma correct
  • Super AA (AMD CrossFireX™configurations only)
  • All anti-aliasing features compatible with HDR rendering

TriXX Utility

TriXX helps users to get the optimum performance from compatible SAPPHIRE graphics cards in any application by allowing them to monitor, tune and save different settings of key parameters for the card.


Enhanced Unified Video Decoder 3 (UVD 3)



Watch the hottest Blu-ray movies or other HD content at full 1080p (and beyond !) display resolution. Enjoy a feature rich video experience with enhanced Unified Video Decoder 3 (UVD 3), offloading the bulk of the video decoding tasks from the CPU to the GPU allowing for a cooler, quieter and more balanced system.


Microsoft Office 2010



Take advantage of improved picture and media editing capabilities in Office 2010 as well as edit and share your content in real time.

See more, and get more done. Enhanced productivity with accelerated GPU processing for Office applications.


AMD App Acceleration

AMD App Acceleration is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for OpenCL, DirectCompute or DirectX Video Acceleration (DXVA).


AMD PowerPlay with ZeroCore Power Technology

AMD PowerPlay is a power management technology in response to the GPU loading, AMD PowerPlay automatically manages the power consumption.
AMD ZeroCore Power technology allows your AMD Radeon™ GPU to consume virtually no power when in idle state5. When used with AMD CrossFire™ technology, it shuts down additional GPUs when they’re not in use.


AMD HD Media Accelerator

AMD HD Media Accelerator has been designed to help optimize and dramatically improve video playback on your computer by taking advantage of hardware video acceleration from your AMD Radeon GPU. With full 3D stereoscopic decode you can enjoy it all in 3D. AMD HD Media Accelerator speeds up the decode of one 1080p and one 1080i HD video streams simultaneously by hardware, and the new hardware encodes/transcoder processes your media content faster than ever!


Cutting-edge Quad HD display support (4K Support)

The display resolution on AMD Radeon HD7000 series is quadrupled to the resolution of 4KX2K( 4096X2160 ) from the outputs of DisplayPort 1.2 and HDMI.


AMD PowerTune technology (with Boost)

AMD PowerTune technology (with Boost) is a breakthrough technology that sets an entirely new direction for maximum performance at TDP. It allows the GPU to be designed with higher engine clock speeds which can be applied on the broad set of applications that have thermal headroom.
In HD 7900 series, AMD PowerTune technology enables intelligent power monitoring to enable higher clock speeds and better performance in your favorite games





Windows® 8/8.1 support

WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for SAPPHIRE  cards ensuring compatibility and reliability with Microsoft Windows 8/8.1.



Specification

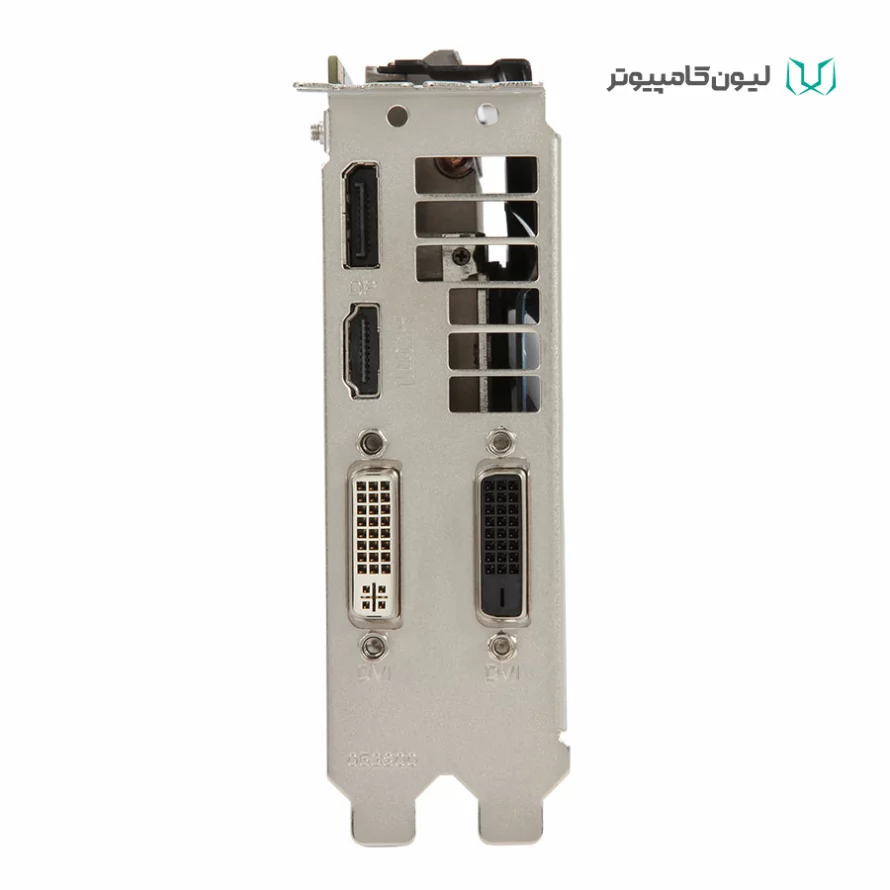

Display Support 3 x Maximum Display Monitor(s) support
Output 1 x HDMI (with 3D)
1 x DisplayPort 1.2
1 x Dual-Link DVI-D
1 x Dual-Link DVI-I
GPU 1050/Boost:1100 MHz Core Clock
28 nm Chip
1280 x Stream Processors
Video Memory 2048 MB Size
256 -bit GDDR5
5800 MHz Effective
Dimension 264(L)X103(W)X35(H) mm Size.
2 x slot
Software Driver CD
SAPPHIRE TriXX Utility
Accessory CrossFire™ Bridge Interconnect Cable
DVI to VGA Adapter
6 PIN to 4 PIN Power Cable x 2
HDMI 1.4a high speed 1.8 meter cable(Full Retail SKU only)


کارت گرافیک

سازنده

Sapphire

تعداد فن

2 عدد

مدل پردازنده

R9 270X

سازنده پردازنده گرافیکی

AMD

تکنولوژی ساخت

28 نانومتر

هسته‌ Stream

1280 واحد

فرکانس پایه

1050 مگاهرتز

فرکانس افزایشی

1100 مگاهرتز

حجم حافظه

2 گیگابایت

نوع حافظه

GDDR5

پهنای باند رابط

256 بیت

نسل PCI Express x16

نسل سوم

چینش SLI/CrossFire

دارد

رابط DirectX

نسخه 11.2

رابط Open GL

نسخه 4.3

پشتیبانی از HDCP

دارد

پشتیبانی از Full HD

دارد

خروجی D-Sub

ندارد

خروجی DVI

دارد

خروجی HDMI

دارد

خروجی DisplayPort

دارد

خنک کننده

هیت‌سینک و پایپ و فن

اسلات توسعه

2 عدد

تغذیه 6 پین

2 عدد

پاور پیشنهادی

450 وات
