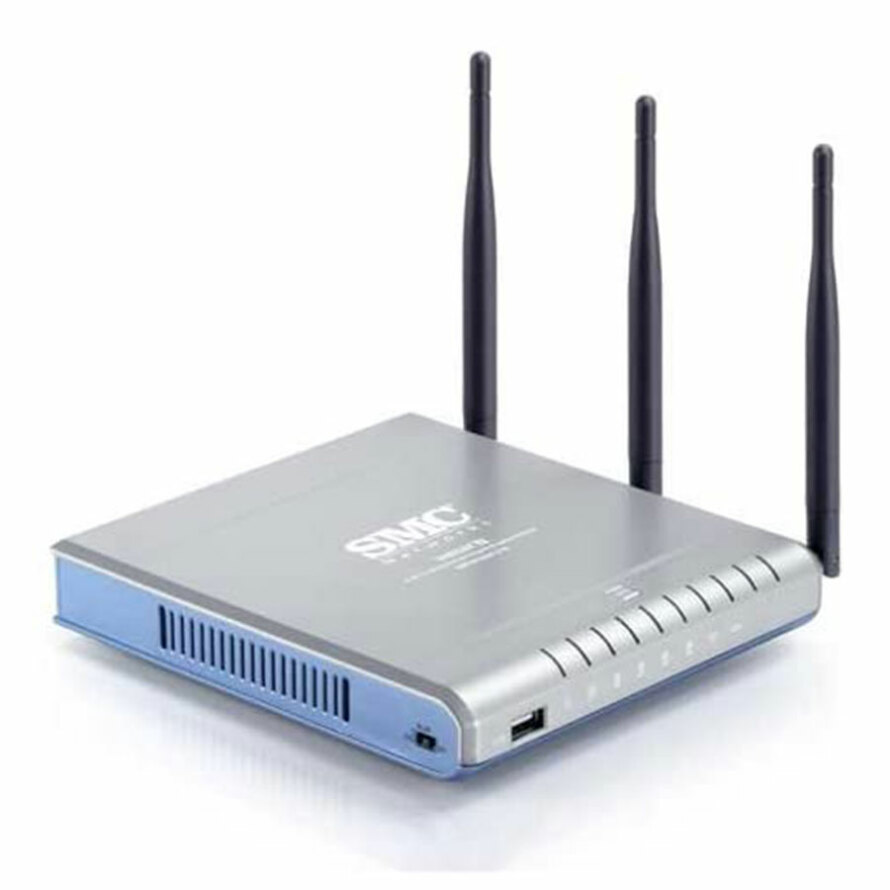

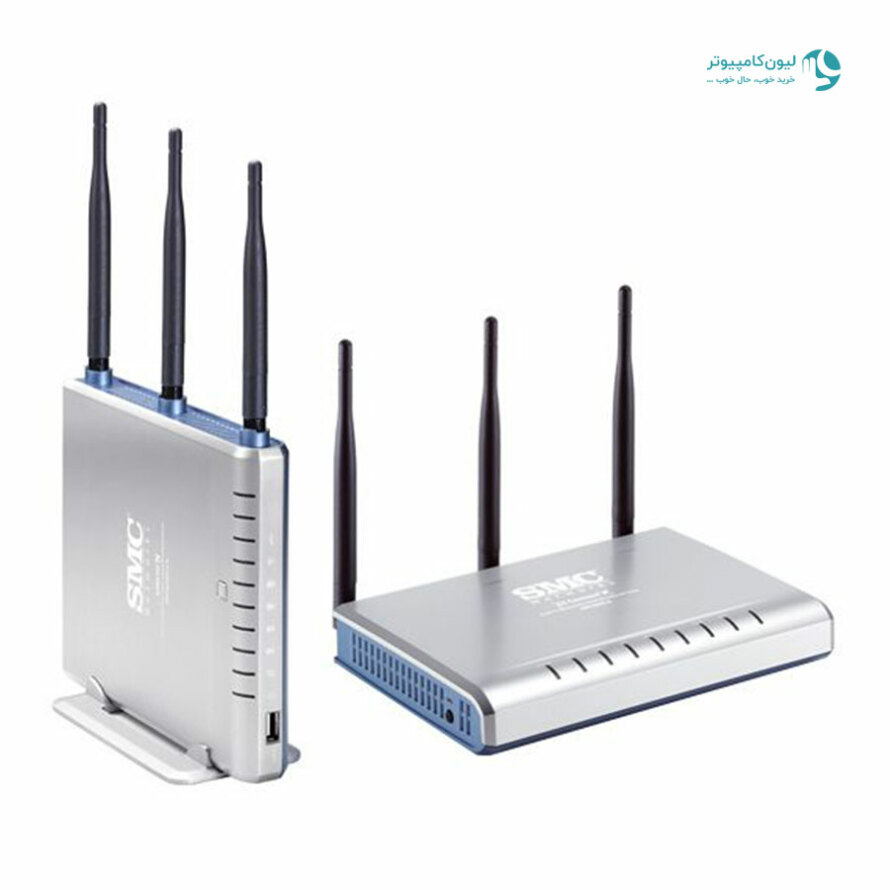

روتر اس ام سی SMCWGBR14-N

روتر بیسیم با برد و سرعت بالا

PHYSICAL

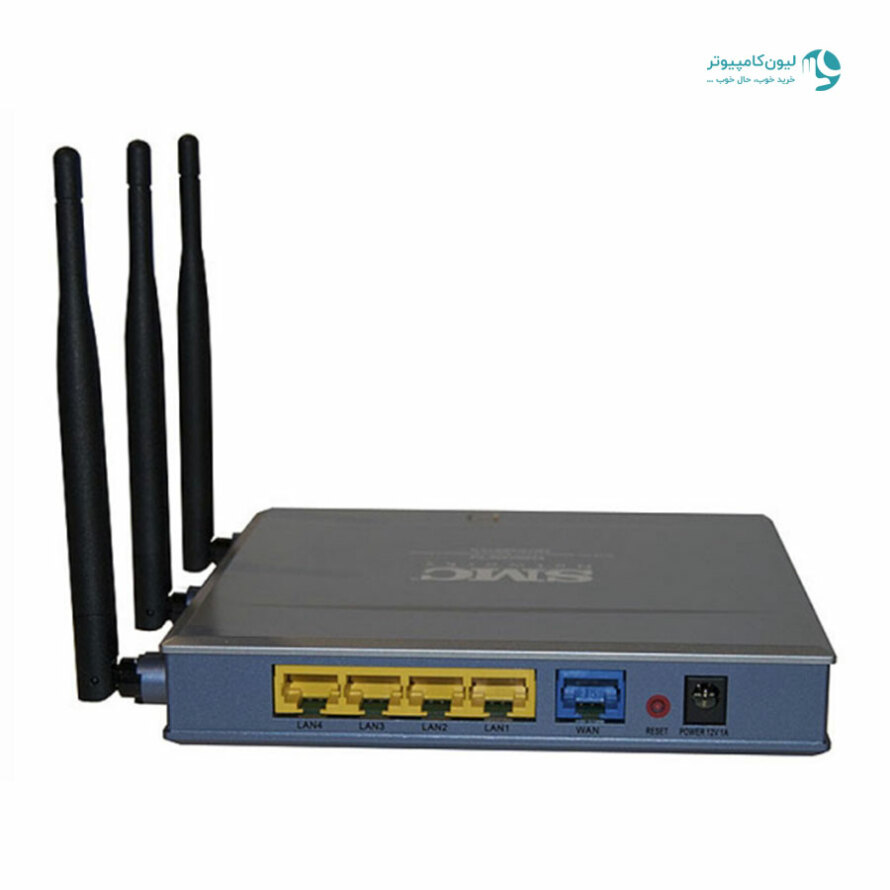

• One 10/100/1000Mbps WAN port
• 4-port 10/100/1000Mbps LAN switch
• Three 4dBi fixed antennas
• USB2.0 Multi-function Print Server
• WPS button
• WLAN On/Off slide switch
• Reset button

MANAGEMENT FEATURES
• EZ Installation Wizard
• Web based management interface (HTTP)
• Remote management

SECURITY FEATURES
• NAT Firewall with SPI
• Denial-of-Service protection
• Intrusion Detection System
• Access Control
• Web Filter
• DMZ Host
• IPSec, PPTP and L2TP VPN pass-through
• SSID Broadcast disable
• MAC address Filtering
• WEP 64-/128-Bit Encryption
• WPA-/WPA2-PSK (Pre Shared Key)
• WPA/WPA2 Enterprise mode (802.1x)

QUALITY-OF-SERVICE
• Intelligent Stream Handling Technology
• Wireless Intelligent Stream Handling Technology

MISCELLANEOUS
• UPnP IGD compliant
• WDS (Wireless Distribution System)**
• Virtual Server, Special Application rules, Gaming Rules
• System logging with selectable event levels and types
• Syslog server support

STANDARDS
• EEE802.3 (10Base-T), IEEE802.3u (100Base-TX)
• IEEE802.11b, IEEE802.11g, IEEE802.11n

OPERATING FREQUENCY
• FCC: 2412~2462MHz (Ch1~Ch11)
• ETSI: 2412~2472MHz (Ch1~Ch13)

TYPICAL RF OUTPUT POWER
• 11n Mode: 14dBm
• 11g Mode: 15dBm
• 11b Mode : 18dBm

TEMPERATURE
• Operating: 0 degrees C to 40 degrees C
• Storage: -20 degrees C to 60 degrees C

HUMIDITY
• Operating: 10% to 85% Non-condensing
• Storage: 5% to 90% Non-condensing

DIMENSIONS
• 164 x 151 x 26 mm
• 6.46 x 5.94 x 1.02 in

WEIGHT
• 0.351Kg
• 0.77lbs

POWER INPUT
• 12V/1A

CERTIFICATIONS
• FCC
• CE

SYSTEM REQUIREMENTS
• Broadband (Cable/xDSL) Internet service and Modem with Ethernet connection.
• 2.4GHz 802.11n wireless adapter or 2.4GHz 802.11b/g wireless adapter installed on each PC. Alternatively an Ethernet adapter can be used.
• Internet Explorer 5.5 or above, Netscape 4.7 or above, Mozilla Firefox 1.0 or above
• We recommend using this product with the SMCWCB-N2, SMCWPCI-N2 and SMCWUSB-N/SMCWUSBS-N2 EZ Connect™ N wireless adapters

PACKAGE CONTENTS
• Barricade™ N Broadband Router (SMCWGBR14-N)
• Vertical Stand
• Power Supply
• RJ-45 Ethernet cable
• Documentation CD
• Quick Installation Guide
• Warranty Information Card

FEATURES
• Share your high speed cable/xDSL internet connection
• 4-port 10/100/1000Mbps Gigabit LAN switch with auto MDI-MDIX
• Built-in Wireless-N (802.11n) access point
• NAT firewall with Stateful Packet Inspection (SPI)
• WPA/WPA2 Encryption
• Wi-Fi Protected Setup™ (WPS)
• Intelligent stream handling technology
• USB2.0 Multi-function print server
• Web-Based management interface
