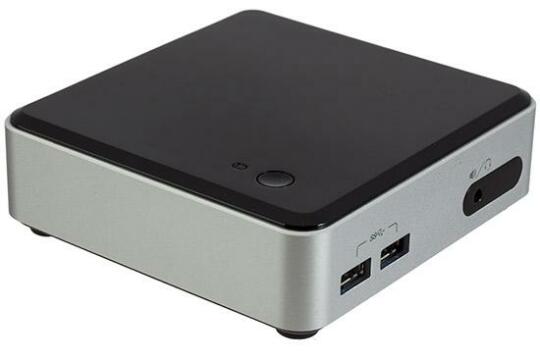

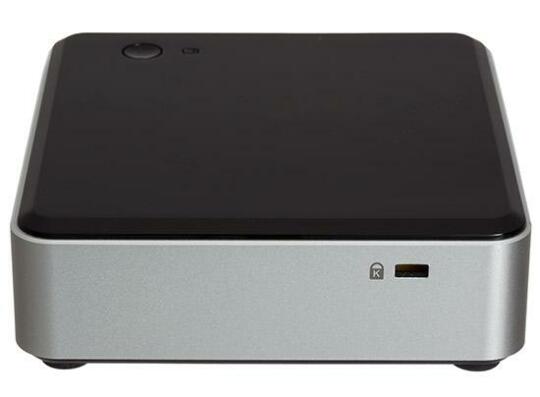

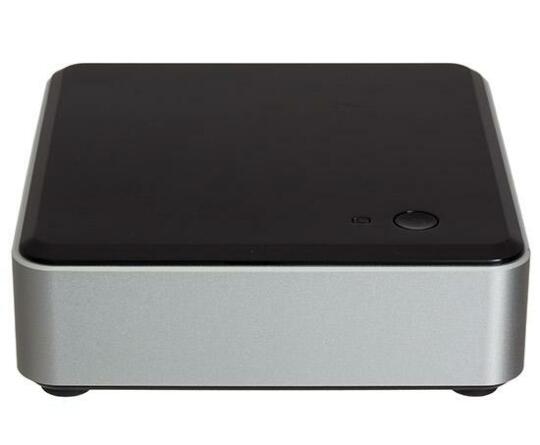

کامپیوتر کوچک Intel® NUC Kit D54250WYK

-

Essentials

Status

End of Interactive Support

Launch Date

Q4'13

Expected Discontinuance

See Roadmap

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

mSATA SSD

# of Internal Drives Supported

1

Embedded Options Available

No

Lithography

22 nm

TDP

15 W

DC Input Voltage Supported

12-19 VDC

Recommended Customer Price

N/A

Datasheet

Link

Processor Included

Intel® Core™ i5-4250U Processor (3M Cache, up to 2.60 GHz)

Warranty Period

3 yrs

-

Memory Specifications

Max Memory Size (dependent on memory type)

16 GB Max RAM Support

Memory Types

DDR3L-1333/1600 1.35V SO-DIMM

Max # of Memory Channels

2

Max Memory Bandwidth

25.6 GB/s

Max # of DIMMs

2

ECC Memory Supported ‡

No

-

Graphics Specifications

Integrated Graphics ‡

Yes

Graphics Output

Mini-DP 1.2; Mini-HDMI 1.4a

Intel® Clear Video Technology

Yes

# of Displays Supported ‡

3

-

Expansion Options

PCI Express Revision

Gen2

PCI Express Configurations ‡

Half-length MiniPCI card with PCIe x1 lane

PCIe Mini Card Slot (Half Length)

1

PCIe Mini Card Slot (Full Length)

1

-

I/O Specifications

USB Revision

2.0, 3.0

# of USB Ports

6

USB 2.0 Configuration (External + Internal)

0 + 2

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

2

Max # of SATA 6.0 Gb/s Ports

2

Audio (back channel + front channel)

7.1 digital + analog stereo headset

Integrated LAN

10/100/1000

Integrated Wifi

No

Integrated Bluetooth

No

Consumer Infrared Rx Sensor

Yes

Additional Headers

FRONT_PANEL, 2x USB2.0, DC_IN, CUST_SOL (CEC, WDT, DMIC)

-

Package Specifications

Low Halogen Options Available

See MDDS

-

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® vPro Technology ‡

No

TPM

No

Intel® HD Audio Technology

Yes

Intel® Rapid Storage Technology

Yes

Intel® Virtualization Technology (VT-x) ‡

Yes
