پاور ریدمکس آر ایکس 630 اس اس

Model

Brand

RAIDMAX

Model

RX-630SS

Series

HYBRID 2

Details

Type

ATX12V V2.2/ EPS12V

Maximum Power

630W

Fans

1 x 135mm Blue Glowing LED Fan

Main Connector

20+4Pin

+12V Rails

2

PCI-Express Connector

1 x 6-Pin, 1 x 6+2-Pin

SATA Power Connector

6

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

Up to 85%

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Input Current

10A @ 115V, 5A @ 230V

Output

+3.3V@25A, +5V@25A, +12V1@22A, +12V2@22A,, -12V@0.5A, +5VSB@2.0A

Approvals

UL, CUL, FCC, TUV, CE, C-tick, CCC, CB

Dimensions

6.5" x 3.5" x 6"

Energy-Efficient

No

Features

Connectors

1 x 20+4 pins Main Connector
1 x 4+4 pins ATX 12V/EPS 12V Connector
2 x 6+2 pins PCI-E Connectors
6 x 5 pins SATA Connectors
3 x 4 pins Peripheral Connector
1 x 4 pins Floppy Connector

Features

Dual 12V output circuits provide added system stability

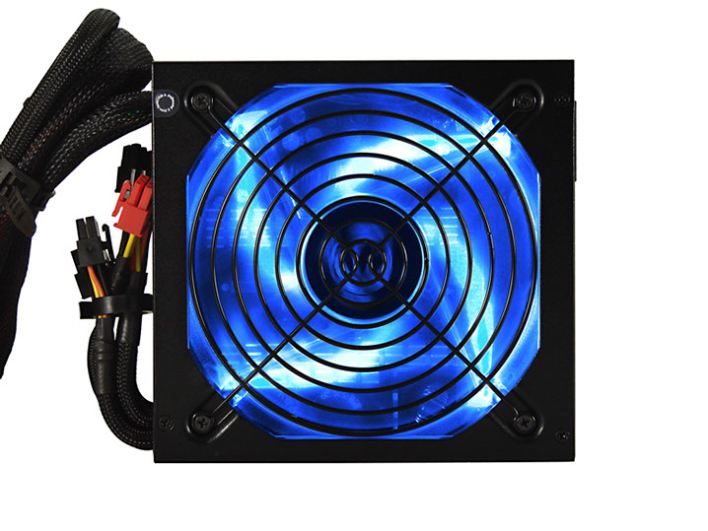

Huge 135mm silent blue LED fan
Durable black stain finish
Hexflo honey comb cutouts for maximum airflow
High grade black mesh wrapped cabling
Modular cables
Power Material: Stained Black SECC Steel
