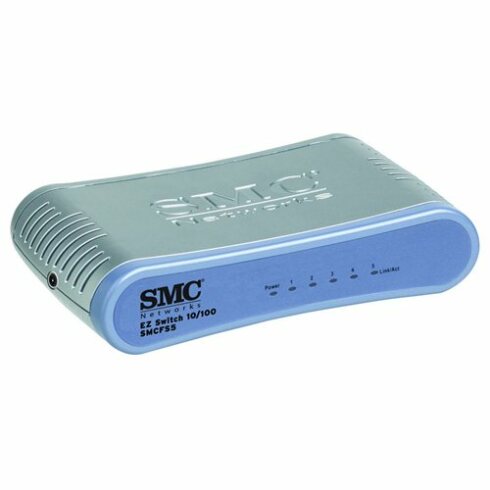

سوییچ 5 پورت شبکه اس ام سی مدل FS5

هاب سوئیچ با 5 پورت شبکه

PORTS
• SMCFS5
• 5 x 10/100 BASE-T
• DC power socket

NETWORK INTERFACE
• 10Base-T, UTP/ STP category 3 or 5 cable
• 100Base-TX UTP/ STP category 3 or 5 cable

SWITCH FABRIC
• SMCFS5
• 1Gbps
• 74400 pps

BUFFER ARCHITECTURE
• SMCFS5 – 384Kbits

SWITCHING DATABASE
• 2K MAC address entries

LED
• System: Power
• Port: Link/activity

WEIGHT
• SMCFS5 – 155G (0.342LBS)

SIZE
• SMCFS5:
• 13.1 x 8.5 x 3.2 cm (5.15 x 3.384 x 1.26 in.)

POWER CONSUMPTION
• SMCFS5: 3.52 Watts

TEMPERATURE
• Operating: 32 to 122ºF (0 to 40ºC)
• Storage: -40 to 158ºF (-40 to 70ºC)

HUMIDITY
• 10% to 90%

STANDARDS
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x flow control support

EMC/SAFETY COMPLIANCES
• CE Mark Class B

EMISSIONS
• FCC Class B, CISPR Class B, EN 61000-3-2/3

IMMUNITY
• EN 61000-4-2/3/4/5/6/8/11

SAFETY
• CSA/NRTL (CSA60950-1 & UL60950-1)
• TUV/GS (EN60950-1)

FEATURES
• Auto MDI/MDI-X on each port to simplify integration into a network
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE802.3x compliant full-duplex flow control, HOL blocking prevention
• Broadcast storm control and CRC Filtering
• LED indicators for simple troubleshooting
