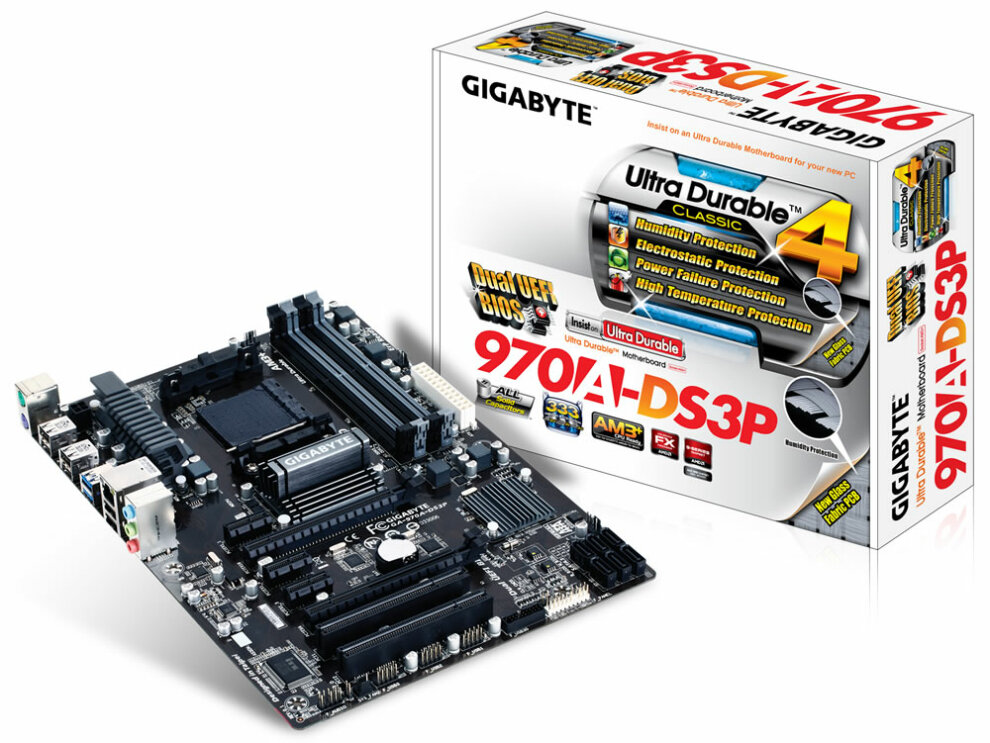

مادربرد گیگابایت 970A-DS3P

GIGABYTE 970A-DS3P AM3+ 970 MainBoard
گارانتی (آواژنگ)

کد کالا: Lion-Product-3674

ناموجود
GIGABYTE Ultra Durable™ 4 Classic


Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.



Electrostatic Protection
GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.



Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.


High Temperature Protection
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures.



CPU

AM3+ Socket:

  1. AMD AM3+ FX processors
  2. AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor

(Please refer "CPU Support List" for more information.)

Hyper Transport Bus
  1. 4800 MT/s
Chipset
  1. North Bridge: AMD 970
  2. South Bridge: AMD SB950
Memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

* To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.

  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules

(Please refer "Memory Support List" for more information.)

Audio
  1. Realtek® ALC887 audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
Storage Interface

South Bridge:

  1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
  2. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
USB

South Bridge:

  1. Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)

VIA® VL805 chip:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 6 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 2 x system fan headers
  6. 1 x power fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.0/2.0 header
  11. 3 x USB 2.0/1.1 headers
  12. 1 x Clear CMOS jumper

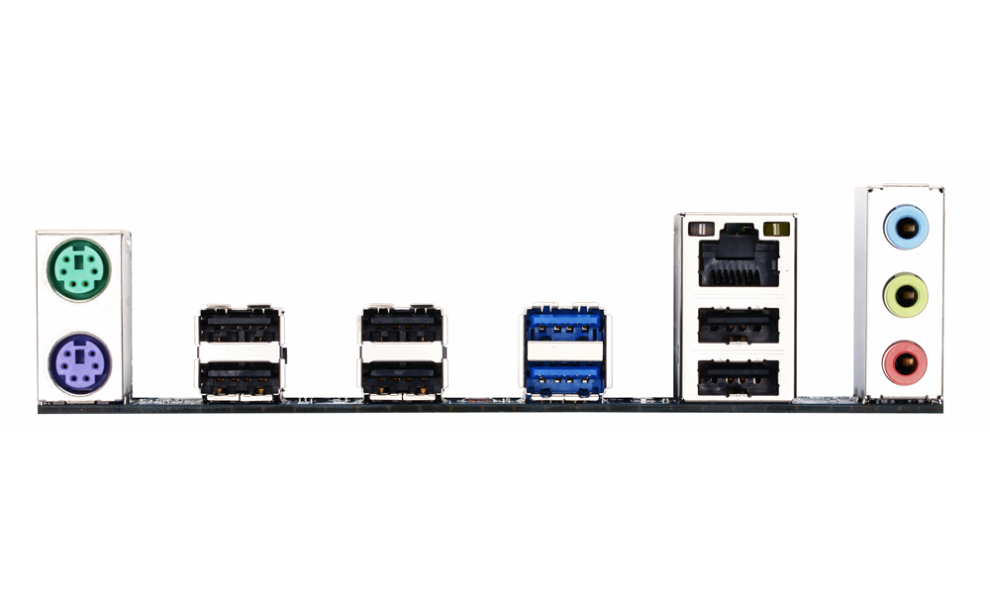

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 2 x USB 3.0/2.0 ports
  4. 6 x USB 2.0/1.1 ports
  5. 1 x RJ-45 port
  6. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring

* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features

* Available functions in EasyTune may differ by motherboard model.

  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for EasyTune
  5. Support for Smart Recovery 2
  6. Support for Auto Green
  7. Support for ON/OFF Charge
  8. Support for 3TB+ Unlock
  9. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Windows 8/7/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 21.5cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.


مادربرد

سازنده

GIGABYTE

چیپست

970

سوکت پردازنده

AM3+

پشتیبانی از SLI

ندارد

پشتیبانی از CrossFire

دارد

اسلات M.2

ندارد

پورت SATA III

6 عدد

درگاه USB 2.0

12 عدد

درگاه USB 3.0 (USB 3.2 GEN 1 )

4 عدد

پورت شبکه

دارد

اتصال Wi-Fi

ندارد

بلوتوث

ندارد

نوع رم قابل استفاده

DDR3
