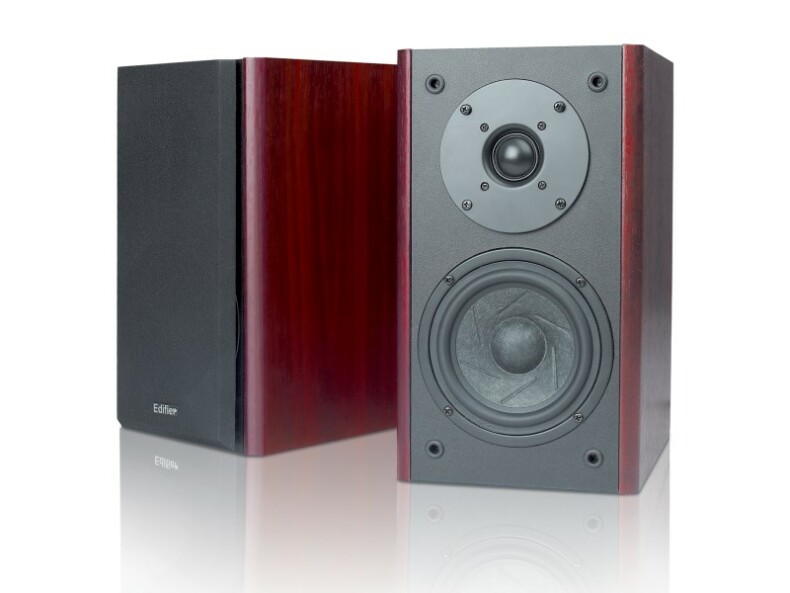

EDIFIER R1900TII STEREO MONITOR SPEAKER

All wood enclosure, using 12mm thickness MDF board.

Magnetically shielded drivers virtually eliminate monitor and TV screen interference.

1inch cloth-dome tweeter, 5 inch wool mixed paper cone woofer using diagonally reinforced cone ribbing to aid cone stiffness thereby improving bass performance.

Professional quality high performance crossover.

Extremely low noise Hi-Fi amplifier circuit design.

• Power Output: RMS 22W x 2(@ fo=1kHz, 10% THD, 2 channels loaded )


• THD+N (Amplifier): <=0.2% (@fo=1kHz, PO=10W )


• Signal-to-Noise Ratio (Amplifier): >=95dB(A Weighted)


• Input Sensitivity: 450mV


• Input Impedance: 10K Ohms


• Frequency Response: 46-20k Hz


• Input Port: stereo RCA Line-in


• Controller: Volume, Super Bass


• Speaker Impedance: 4 Ohms


• Bass driver unit: 5 inch (diameter 131mm), magnetically shielded


• Treble driver unit: 1 inch, cloth dome, magnetically shielded


• Size of Single Cabinet: 166(W) x 290(H) x 215(D) mm


• Gross Weight: about 11Kg


• Power Requirement:
  220V-240V ~ , 50/60Hz (for Model European/China/Korea/South America, etc.)
  100V-120V ~, 50/60Hz (for Model USA/Canada/Japan )


• MX Power Consumption: 60W
