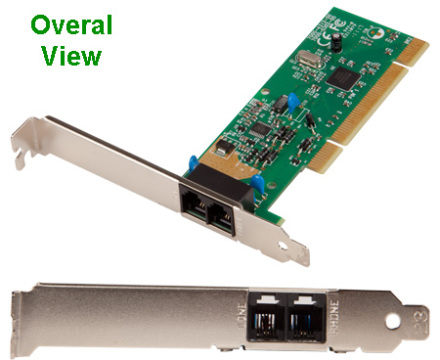

مودم جی نت Gnet FM56PCI 56k PCI Fax Modem

• فکس مودم اینترنال
• دارای سیستم مخابراتی
• پشتیبانی از پروتکل های V.90 و  V.92Caller ID
• هماهنگ با سیستم های مخابراتی Tone و Pulse
• دارای سیستم پاسخگوی خودکار تلفن
• راهنمای نصب فارسی
• قابلیت دریافت و ارسال فکس ودیتا
• دارای چیپ Agere

GENERAL DESCRIPTION

•    Integrated PCI interface
•    Operating System Support Windows 98 / 2000 / ME / XP / Vista / 7 / 2003 / 2008 and Windows NT
•    Host-based Controller utilizing PC host CPU (Pentium*)
•    V.92 and V.90 technology allow data to be received at speed up to 56 Kbps from a digitally connected central site modem. Modem on Hook (MoH),
fast connection, PCM upstream 48 kbits /s also supported.
•    Support Fax Class 1 send and receive rates up to 14400 bps.
•    Telephone Answering Machine (TAM) Function enabled with sound card
•    V.42 LAPM and MNP error correction.
•    V.44, V.42 bis and MNP 5 data Compression

FAX MODEM

• ITU-T V.17, V.29, V.27 ter and V.21 channel 2 .
• TIA/EIA 578 Class 1 FAX send and receive speeds of 14400, 12000, 9600, 7200, 4800 or 2400 bps.

VOICE/AUDIO MODE

• TAM through the microphone and speaker interface of sound card

ERROR CORRECTION

• Support V.42 LAPM, MNP 2-4

DATA COMPRESSION

• Support V.44, V.42 bis and MNP 5

DATA MODEM

• V.92, V.90, V.34bis, V.34, V.32bis, V.32, V.22bis, V.22 A/B, V.23,V.21, Bell 212A and Bell 103.

Received data from a digital source using V.92 or V.90 compatible central site modem over the digital telephone network portion of the PSTN at line speeds up to 56 Kbps with automatic fall-back depends on line condition.

DIALING TYPE

• Tone or Pulse dialing.

FLOW CONTROL

• Both transmit and receive fax data are buffered within the Modem .

Data transfer to and from the DTE is flow control by XON / XOFF and RTS / CTS
