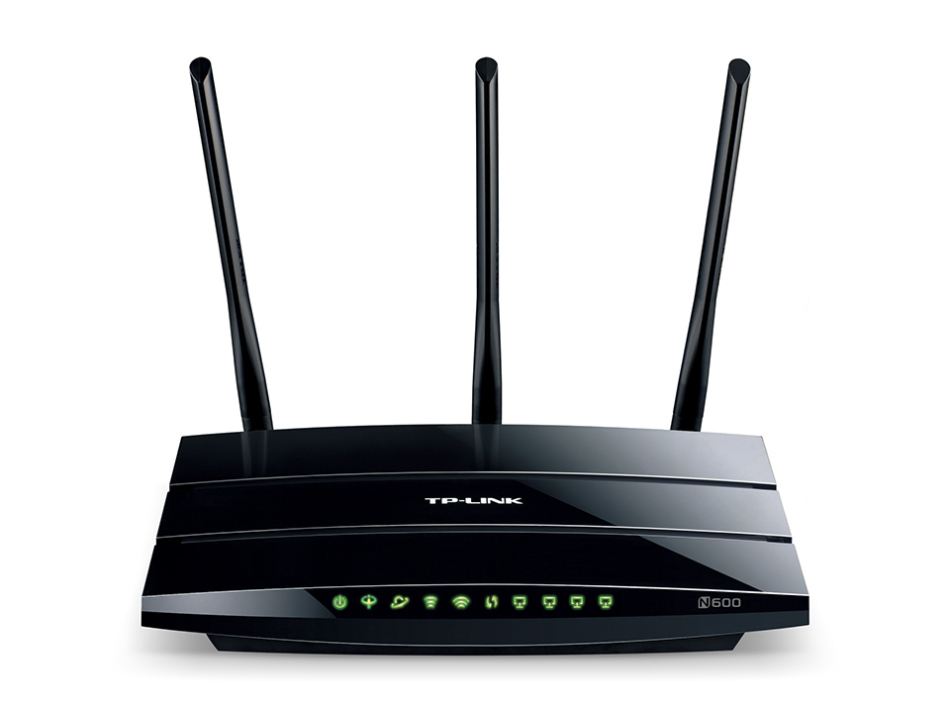

روتر تی پی لینک TD-W9980

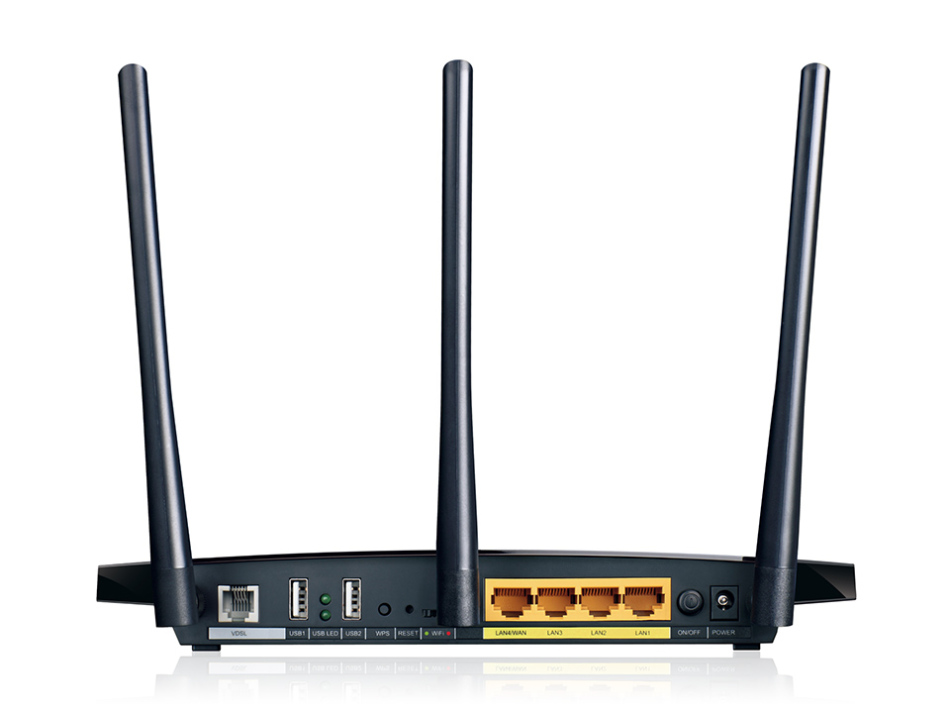

4 10/100/1000Mbps RJ45 Ports
1 RJ11 Port
2 USB 2.0 Ports

1 Power On/Off Button
1 WPS Button
1 Wi-Fi On/Off Switch
1 RESET Button

12VDC/1.5A

IEEE 802.3, 802.3u, 802.3ab

ITU-T G.993.2
ITU-T G.998.4 (G.INP）

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1

ITU-T G.992.3 (G.dmt.bis)

ITU-T G.992.5

9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)

Three 5GHz 5dBi detachable antennas (RP-SMA)
Two 2.4GHz 3.5dBi internal antennas

IEEE 802.11a,802.11b, 802.11g, 802.11n

2.4GHz and 5GHz

<20dBm(EIRP)

Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering

WMM, Bandwidth Control (IP QoS)

NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering

IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6

Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools

Virtual server, Port Triggering, UPnP, DMZ, Manage Control

PPTP, L2TP, IPSec Pass-through

ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs

Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS

Storage Sharing
FTP Server
Media Server
Print Server

IGMP snooping V1/V2/V3
IGMP Multicast

10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

CE, FCC, RoHS

TD-W9980
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter

Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system

Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
