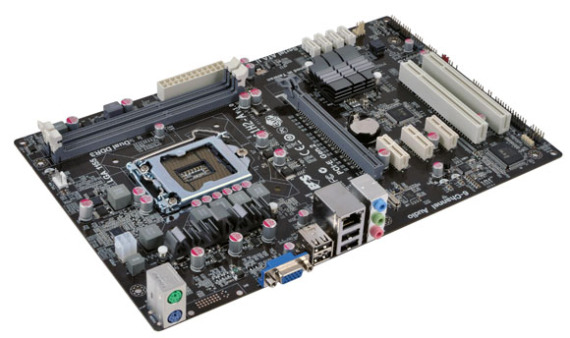

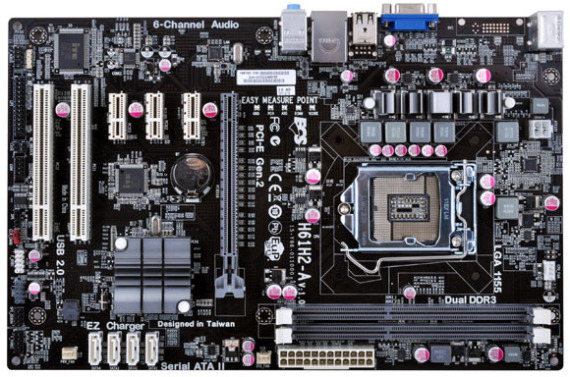

مادربرد الایت گروپ H61H2-A 1155 MB
ECS H61H2A 1155 MB MotherBoard
ECS H61H2-A 1155 MB
گارانتی عادی
گارانتی عادی
کد کالا:
Lion-Product-1359
ناموجود
| CPU | º LGA1155 socket for new 2nd Generation Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors º DMI 20Gb/s |
| CHIPSET | º Intel® H61 Express Chipset |
| MEMORY | º Dual-channel DDR3 memory architecture º 2 x 240-pin DDR3 DIMM socket support up to 16 GB* º Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM º *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB) Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| EXPANSION SLOT | º 1 x PCI Express x16 Gen2.0 slot º 3 x PCI Express x1 slots º 2 x PCI slots |
| STORAGE | º Support by Intel® H61 • 4 x Serial ATA 3.0Gb/s devices |
| AUDIO | º Realtek ALC662 6-channel audio º Compliant with HD audio specification |
| LAN | º Realtek 8111E Gigabit LAN Fast Ethernet Controller |

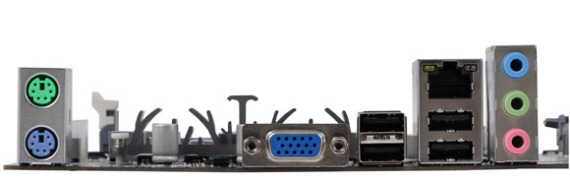

| REAR PANEL I/O | º 1 x PS/2 keyboard & PS/2 mouse connectors º 1 x D-sub(VGA) º 1 x DVI connector(optional) º 1 x RJ45 LAN connector º 1 x Audio port (Line-in, Line-out, Mic-in) º 4 x USB 2.0 Ports |
| INTERNAL I/O CONNECTORS & HEADERS | º 1 x Front panel audio header º 1 x 24-pin ATX Power Supply connector º 1 x 4-pin 12V Connector º 1 x 4pin CPU_FAN connectors º 1 x 3-pin PWR_FAN connector º 1 x 3-pin SYS_FAN connector º 1 x Speaker header º 1 x Front panel switch/LED header º 1 x SPDIF out header º 1 x Clear CMOS header º 1 x Serial port header º 1 x Parallel Header º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports º 4 x SATA 3Gb/s connectors º 1x 2-pin ME_UNLOCK header º 1x Chasis detect header |
| SYSTEM BIOS | º AMI BIOS with 32Mb SPI ROM º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Supports ACPI & DMI º Audio, LAN, can be disabled in BIOS º F7 hot key for boot up devices option º Support Page Up clear CMOS Hotkey º Support eDLU º Support eSF º Support eBLU º Support eJIFFY º Supports ACPI 3.0 revision º Support ECS M.I.B III Utility • Graphic Voltage Adjustable º Support Milti-language BIOS Utility |
| FORM FACTOR | º ATX Size, 305mm*195mm |
مادربرد
سازنده
ECS
چیپست
H61
سوکت پردازنده
LGA1155
پشتیبانی از SLI
ندارد
پشتیبانی از CrossFire
ندارد
اسلات M.2
ندارد
پورت SATA II
4 عدد
درگاه USB 2.0
8 عدد
پورت شبکه
دارد
اتصال Wi-Fi
ندارد
بلوتوث
ندارد
