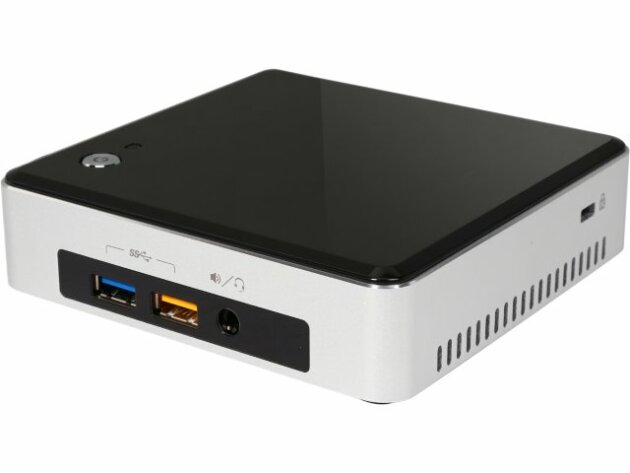

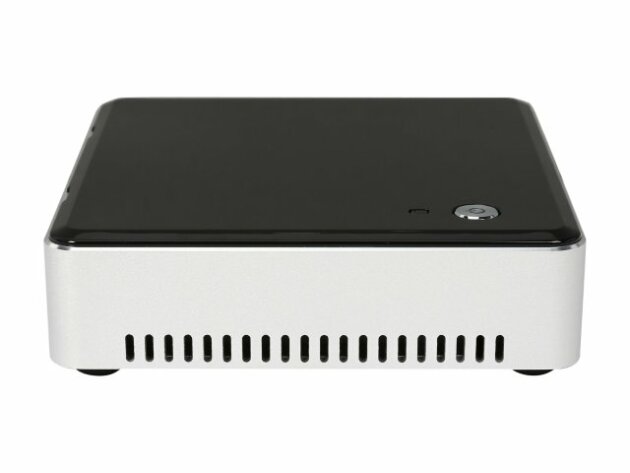

کامپیوتر کوچک Intel® NUC Kit NUC5i3RYK

General

Brand

Intel

Series

NUC (Next Unit of Computing)

Model

BOXNUC5i3RYK

Color

Black

Form Factor

UCFF (4" x 4")

CPU Supported

CPU Type

Intel Core i3-5010U Processor (2.1 GHz Dual Core, 3MB Cache, 15W TDP)

Memory Supported

Memory installed

No Memory

Memory slot

2 x 204Pin SO-DIMM

Memory Type Supported

DDR3L 1866/1600/1333

Max Memory Supported

16GB

Dual Channel Memory Supported

Yes

Storage

Hard Drive Installed

No Hard Drive

Graphics

Onboard Video

Intel HD Graphics 5500

Audio

Channel

Up to 7.1 surround audio via Mini HDMI and Mini DisplayPort

Communications

Max LAN Speed

10/100/1000Mbps

Wireless LAN

Intel Wireless-AC 7265 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Intel Wireless Display)

Bluetooth

Bluetooth 4.0

IrDA

Consumer Infrared sensor on the front panel

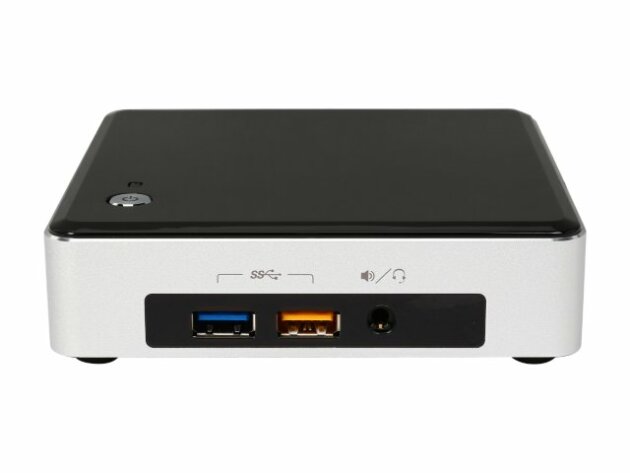

Front Panel Ports

Front USB

2 x USB 3.0 (1 x charging capable)
2 x Internal USB 2.0 via header

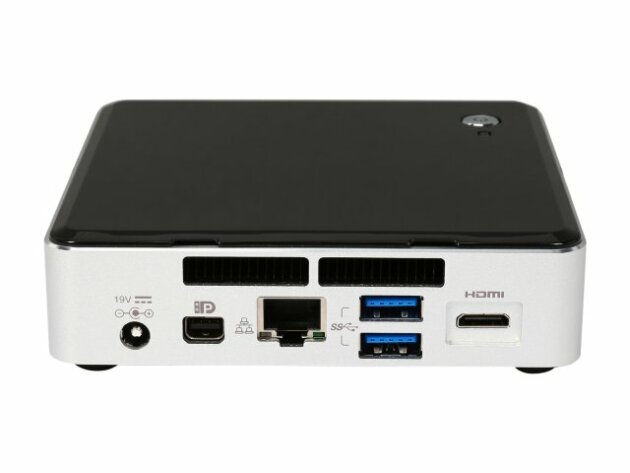

Back Panel Ports

HDMI

1 x Mini-HDMI

VGA

1 x Mini DisplayPort

Rear USB

2 x USB 3.0

Rear IEEE 1394

4

Rear Audio Ports

6 jacks

Power Supply

Power Supply

19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)

Physical SPEC

Dimensions

1.92" x 4.37" x 4.53"

Material

Silver with Black Top and Diamond Cut around the Top
Aluminum and Plastic

Features

Features

This new generation Intel NUC packs more features into an even slimmer form factor. Built with a 5th generation Intel Core i3 processor, integrated Intel HD Graphics 5500, and 8-channel audio, the Intel NUC gives you the power to create a media center PC. The sleek, small Intel NUC has a line-out/headset jack and USB 3.0 for easy home theater connections and gaming requirements. Or, use it as a home office PC.

Additional Features

Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows 8 & 8.1 Logo'd
OS compatibility: Ubuntu, Linux Mint, Fedora, OpenSUSE, TBD

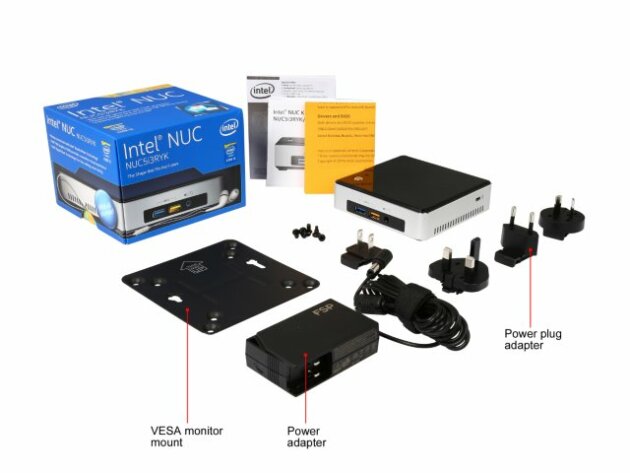

VESA mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington lock support
Integration Guide
12-19V DC Power Input

Plug Standards

Electrical Outlet Plug Type

Plug Type “A” (USA, Canada, Mexico, Japan)
