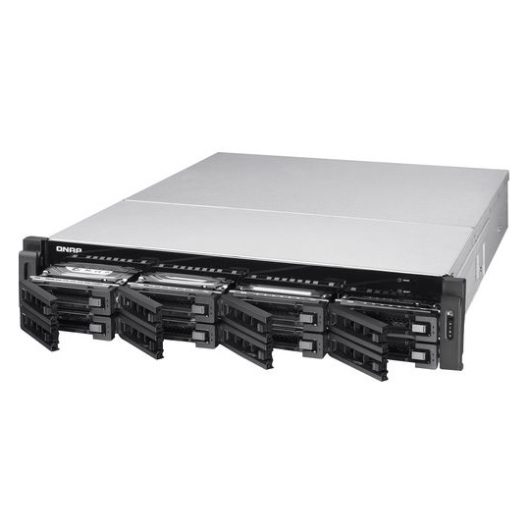

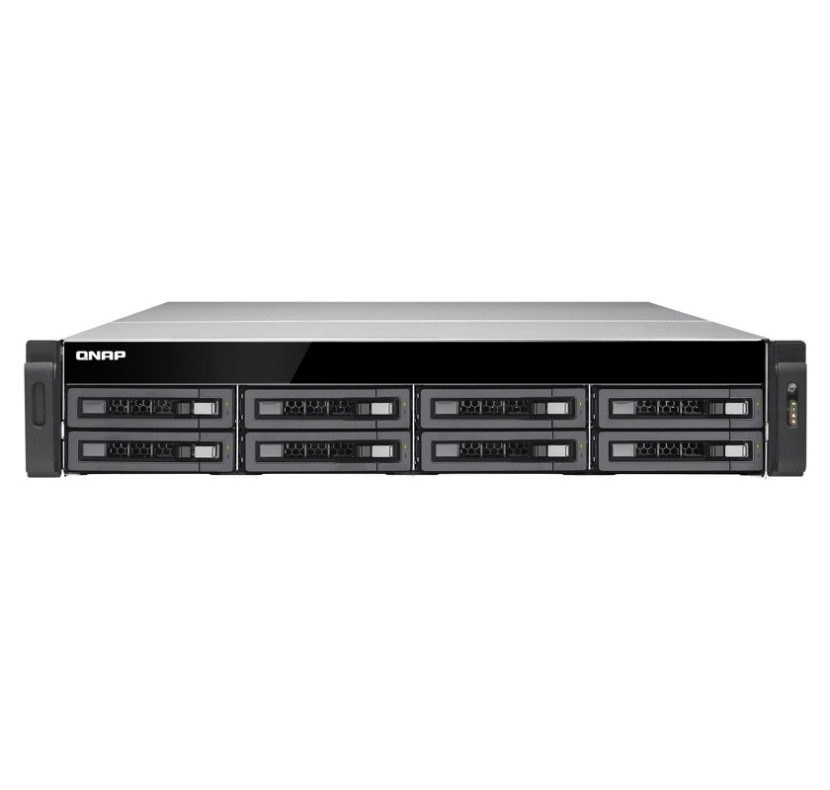

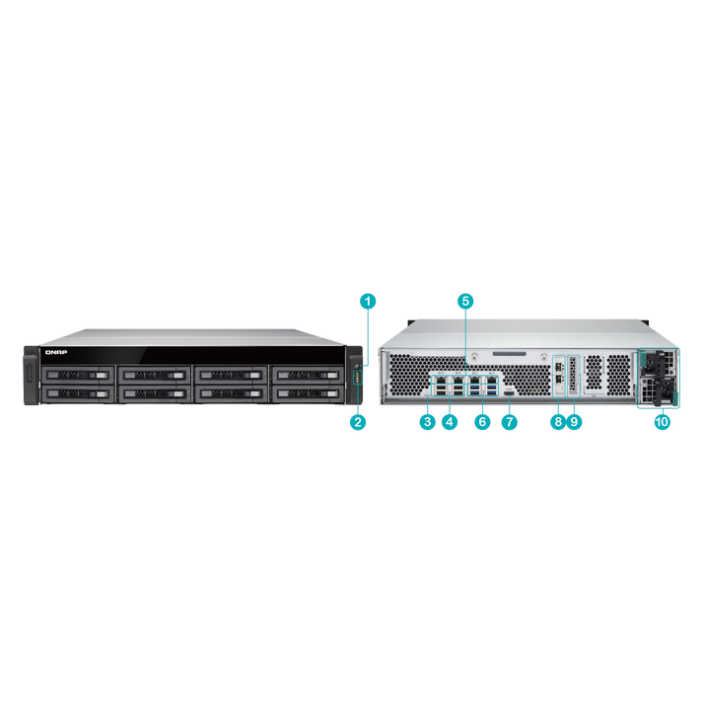

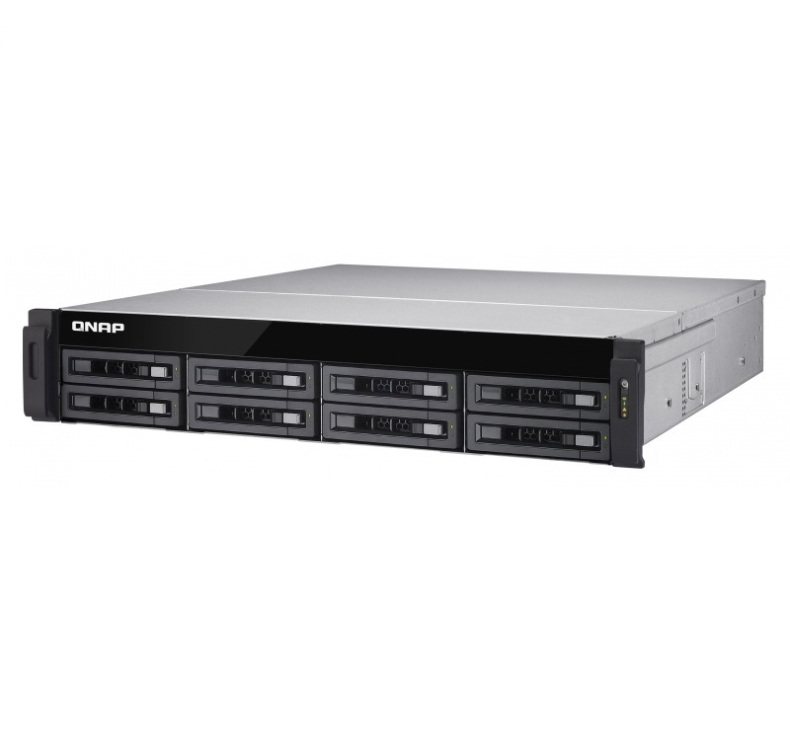

هارد تحت شبکه کیونپ TS-EC880U-E3-R2-4GE

TSEC880UE3R24GE

TS-EC880U-E3-R2-4GE 8Bay Network Storage
گارانتی شرکت پانا

کد کالا: Lion-Product-777346

ناموجود
Model Name TS-EC880U-E3-4GE-R2
CPU Intel® Xeon® E3-1245 v3 3.4 GHz Quad-core Processor, E3-1246 v3 3.5 GHz Quad-core Processor or a compatible E3-1200 v3 family Processor
Memory

Total memory slots: 4

System memory: 4 GB DDR3 ECC RAM
Memory module pre-installed: 2 GB x2
Memory expandable up to: 32 GB (8GB x4)


Note:
  1. When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed.
  2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory 512MB DOM
Internal Cache Port

Two mSATA port on board for read caching
Note: The standard system is shipped without mSATA flash. For the optional mSATA flash, please visit

Hard Drive 8 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive
NOTE:
  1. The standard system is shipped without hard drives.
  2. For the hard drive compatibility list, please visit Compatibility list
Hard Drive Tray 8 x hot-swappable and lockable tray
LAN Port

Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports
40GbE is optional

Note:
1. For the optional network card compatibility list
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
LED Indicators Status, 10 GbE, LAN, eSATA, storage expansion port status
USB

4x USB 3.0 port (rear)
4x USB 2.0 port (rear)

Support USB printer, pen drive, USB hub, and USB UPS etc.
Buttons System: Power button and reset button
Alarm Buzzer System warning
Form Factor 2U, Rackmount
Dimensions 88(H) x 442.5(W) x 530.5(D) mm
3.46(H) x 17.42(W) x 20.89(D) inch
Weight Net weight (NAS only) : 14.39 kg/ 31.72 lb
Gross weight (with packing and accessories) : 20.54 kg/ 45.28 lb
Sound Level* Sound pressure (LpAm) :55.2 dB(A)
Power Consumption (W) Sleep mode: 73.38
In Operation: 133.88 W
(with 12 x 1TB hard drive installed)
Temperature 0-40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C.
Power Supply Redundant power:
Input: 47-63 Hz; 100-127V~/ 8A; 200-240V/ 4A
Output: 400W
PCIe Slot 2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4)

Note:
The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter.
Fan 4 x 6 cm smart cooling fan


هارد اینترنال

سازنده

QNAP

فرم ظاهری

3.5 اینچ

رابط

SATA III

ظرفیت

4 ترابایت

حافظه کش

64 مگابایت
