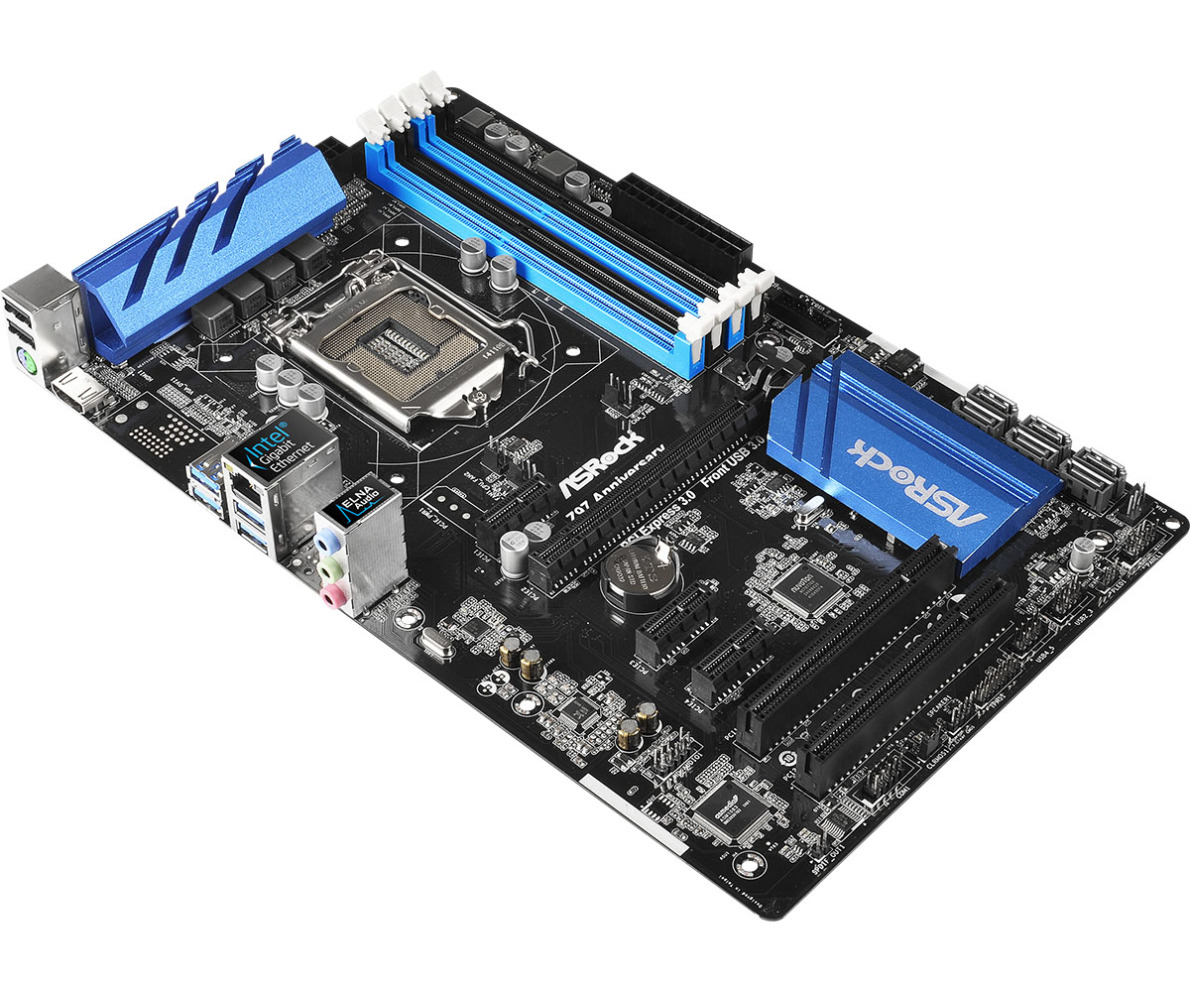

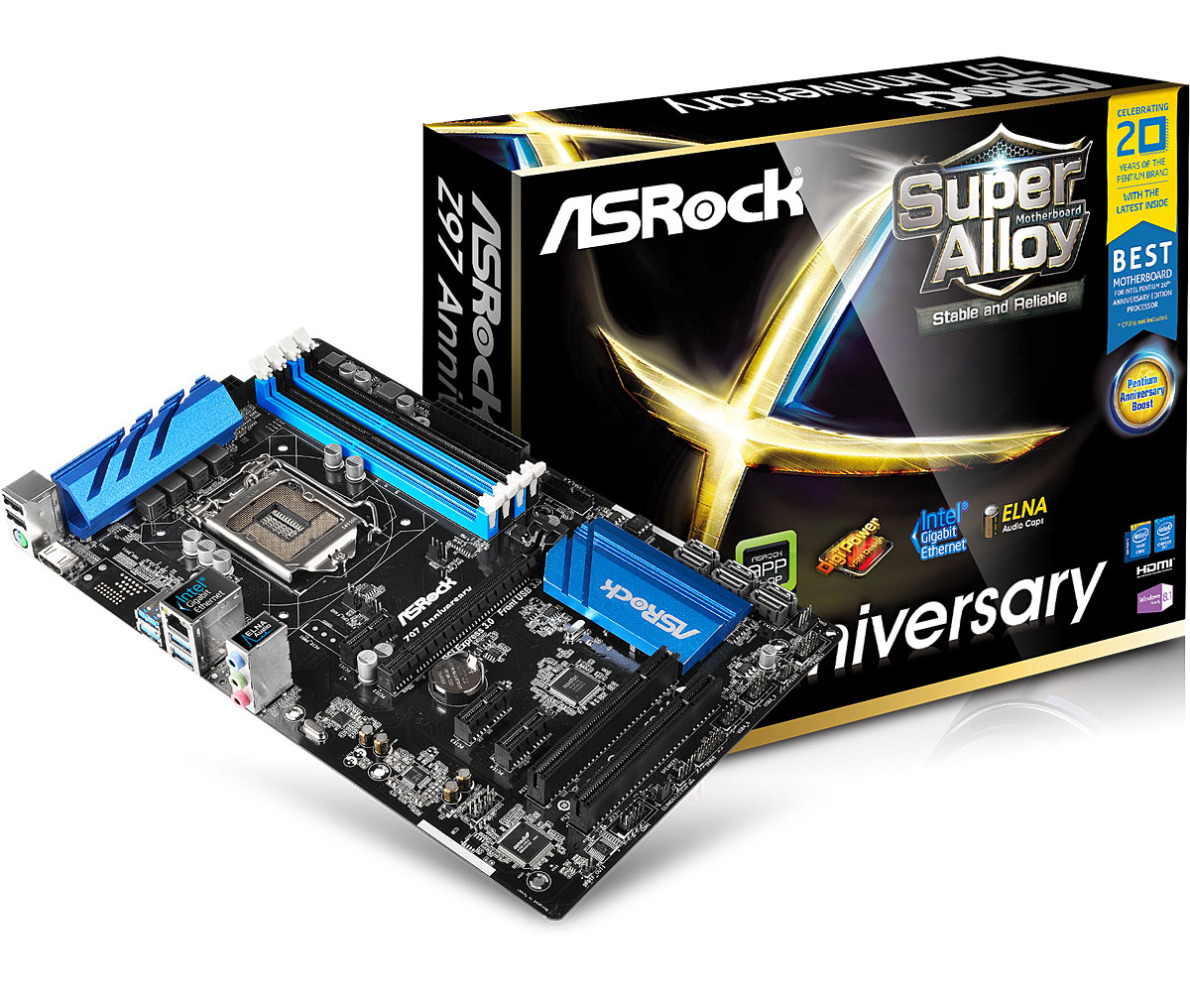

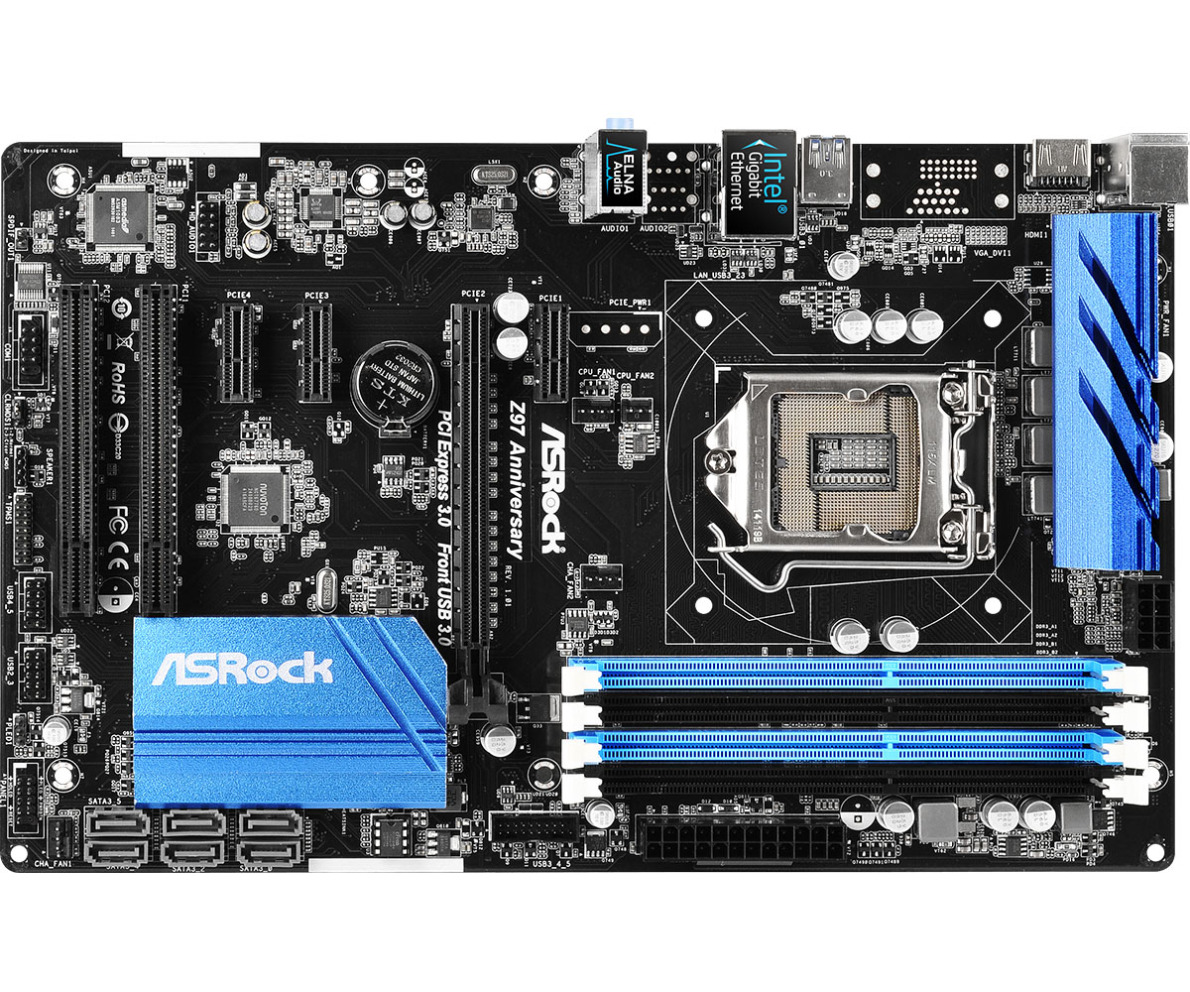

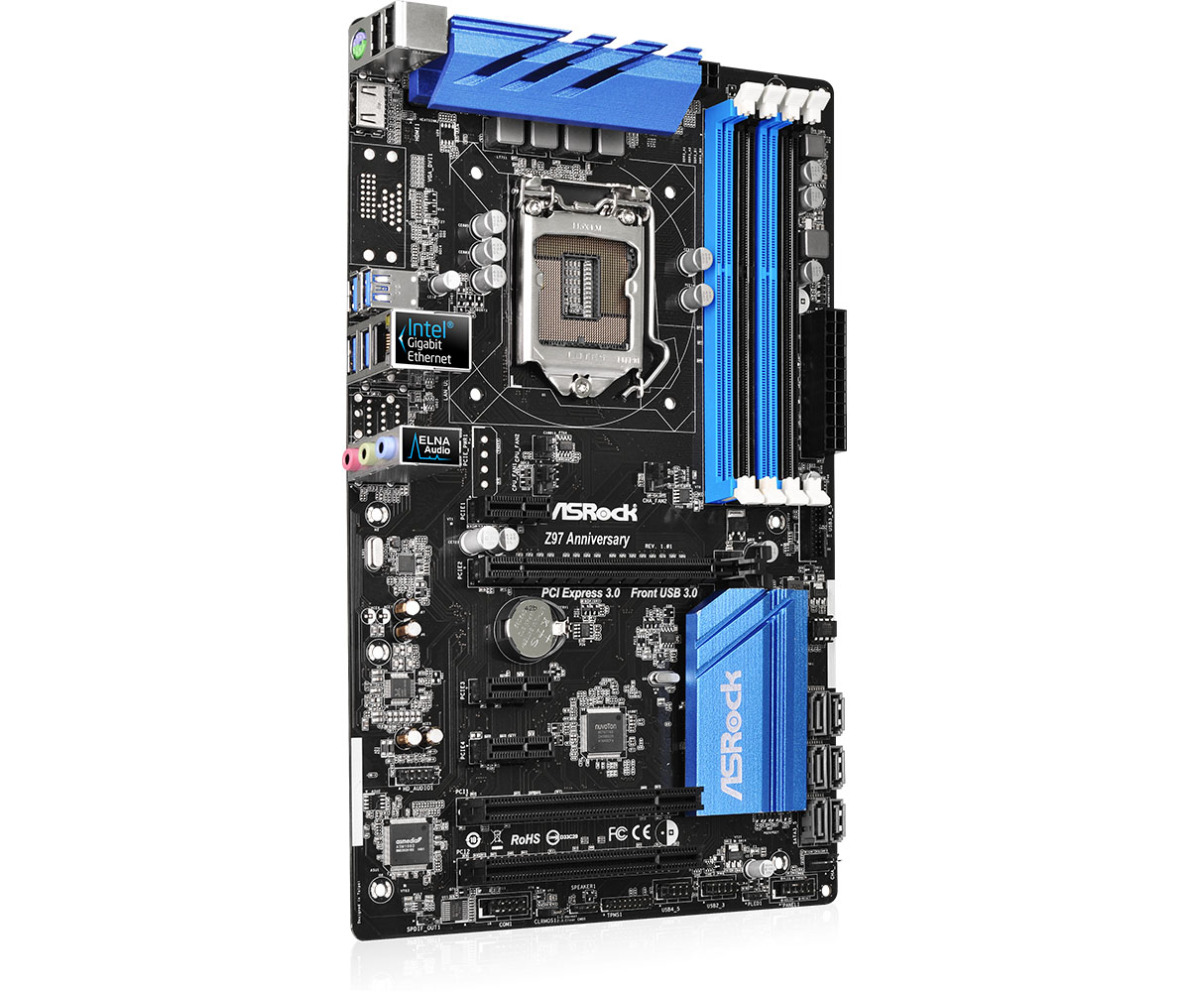

مادربرد ازراک Z97 Anniversary
ASRock Z97 Anniversary LGA1150 Z97 Mainboard
گارانتی (سازگار ارقام)
چوک های پرمیوم
استفاده از نسل جدید NexFET MOSFETs برای کنترل تغذیه اسلات های رم و کارایی بیشتر
PCB کاملا سیاه
مدار رگلاتور دیجیتالی به جای مدار سنتی انالوگ برای افزایش ثبات و عمر مادربورد
اسلات mini-PCIe
خازن های جامد
استفاده از Intel® LAN
خازن های ELNA برای بخش صدا
تکنولوژی ASRock Pentium Anniversary Boost برای اورکلاک هوشمند پردازنده های پنتیوم اینتل .
جدول مشخصات فنی مادربرد ازراک Z97 Anniversary
| General | |
| Unique Feature | ASRock Super Alloy - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - NexFET™ MOSFET - Sapphire Black PCB ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
| CPU | - Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150) - Digi Power design - 4 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking |
| Chipset | - Intel® Z97 |
| Memory | - Dual Channel DDR3 Memory Technology *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V Voltage multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600 *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. ***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) *To configure 7.1 CH audio, please use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I218V - Supports Intel® Remote Wake Technology - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 3 x PCI Express 2.0 x1 Slots - 2 x PCI Slots |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) - 2 x Chassis Fan Connectors (2 x 4-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |

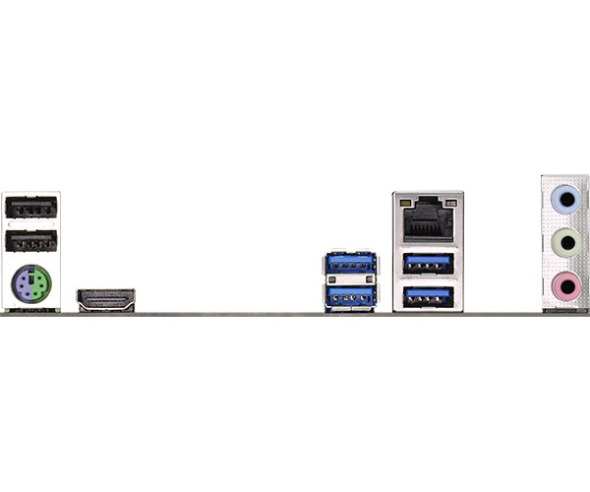

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and UEFI | Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI - ASRock Pentium® Anniversary Boost UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - ATX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
مادربرد
Asrock
Z97
LGA1150
ندارد
ندارد
ندارد
6 عدد
6 عدد
6 عدد
دارد
ندارد
ندارد
