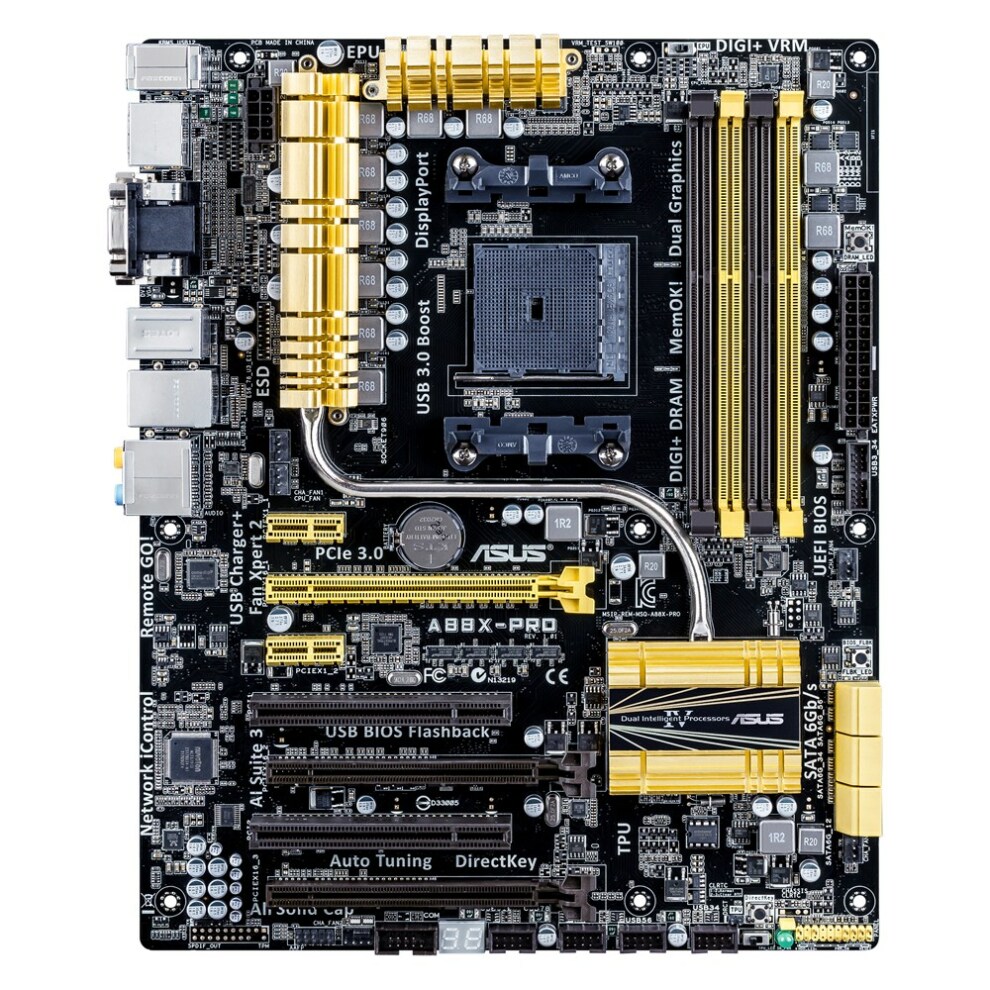

مادربرد ایسوس A88X-Pro

Model

Brand

ASUS

Model

A88X-PRO

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

Athlon/A- Series (FM2+)

Chipsets

Chipset

AMD A88X (Bolton D4)

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2400(OC)/2250(OC)/2200(OC)/2133/1866/1600/1333

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

2 (x16 or dual x8)

PCI Express 2.0 x16

1 (x4 mode)

PCI Express x1

2

PCI Slots

2

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

SATA RAID

0/1/5/10/JBOD

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111GR

Max LAN Speed

10/100/1000Mbps

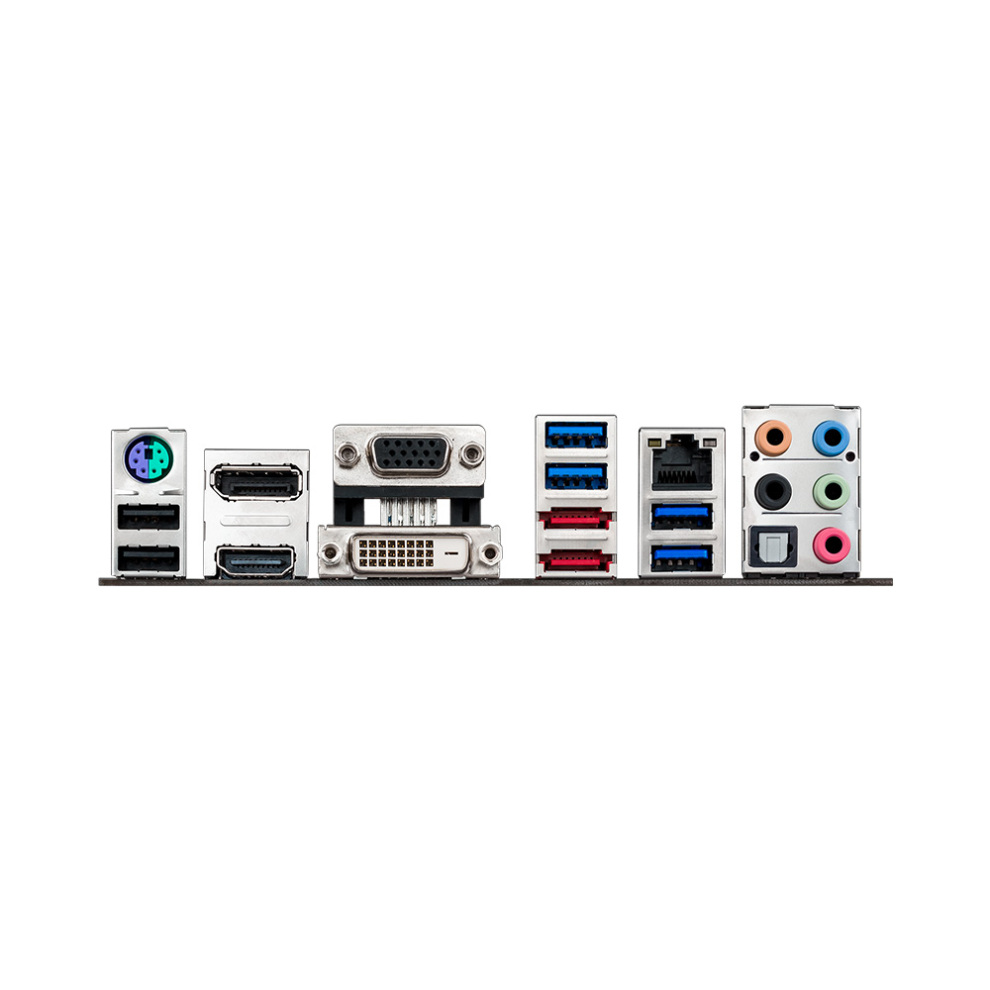

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI
1 x D-Sub

HDMI

1 x HDMI

DisplayPort

1 x DisplayPort

USB 3.0

4 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

eSATA

2 x eSATA 6Gb/s

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 8 x USB 2.0

Other Connectors

1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.91" x 10.35"

Power Pin

24 Pin

Features

Features

Dual Intelligent Processors 4 with 4-Way Optimization

4-Way Optimization - One Click and Done! Top-up Performance, Efficiency, Digital Power, and System Cooling

GPU Boost - Unlock integrated graphics performance for up to 30% boost

5X PROTECTION - All-round protection provides the best quality, reliability, and durability

New UEFI BIOS - Full-scale Performance Tuning with Intuitive BIOS Interface

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration

ASUS 5X Protection :
- ASUS DIGI+ VRM - 6 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS EPU :
- EPU switch

ASUS Exclusive Features :
- GPU Boost
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker

ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert 2

ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS

ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-Slot
- ASUS Q-Connector

Packaging

Package Contents

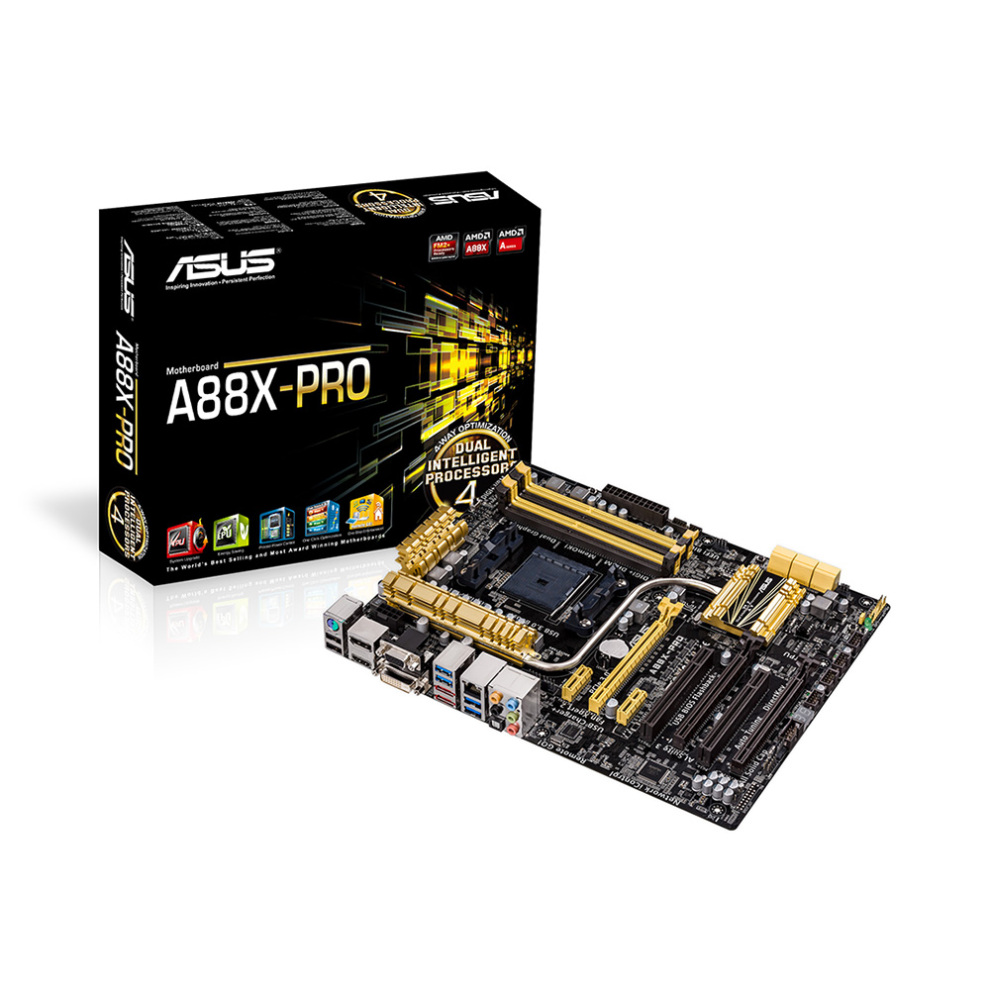

ASUS A88X-PRO Motherboard
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
